CX-AB46

Mount & Suck Antenna

Frequency Range: 698–2700 MHz (wideband support)
Gain: 2–5 dBi (depending on frequency band)
Polarization: Vertical, omnidirectional
Impedance: 50 Ω
VSWR: ≤ 2.0
Connector Type: SMA/optional (customizable as per requirement)
Cable Length: 1.5m to 3m RG174/RG58 (configurable)
Mounting Type: Magnetic base with strong adhesion for stuck mounting
Radiation Pattern: Omnidirectional, optimized for consistent coverage
Power Handling: 50W max
Material: High-strength ABS with weather-resistant coating
Operating Temperature: -40°C to +85°C
Applications:LTE / GSM / 3G / 4G,Wi-Fi systems,M2M / IoT devices,Vehicle-mounted communication systems

Enquire Now

Download Specification

Descritption CX-AB46

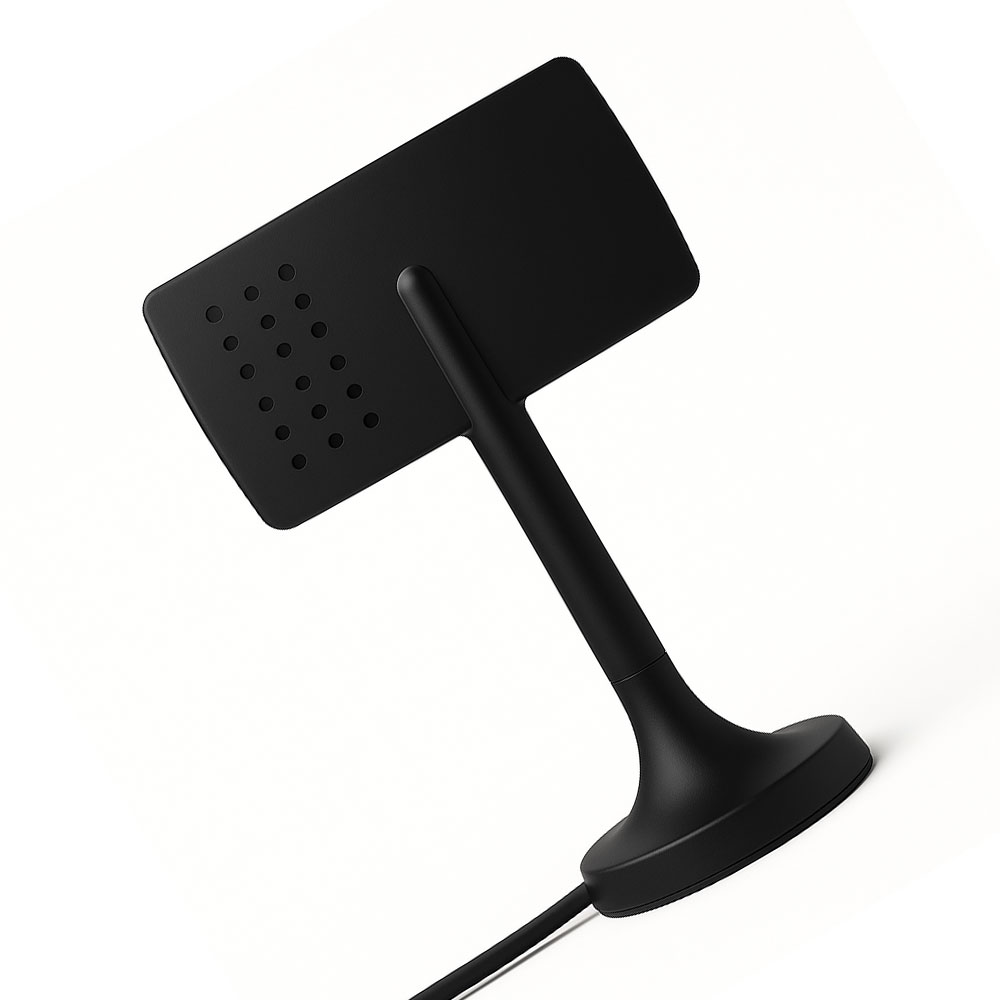

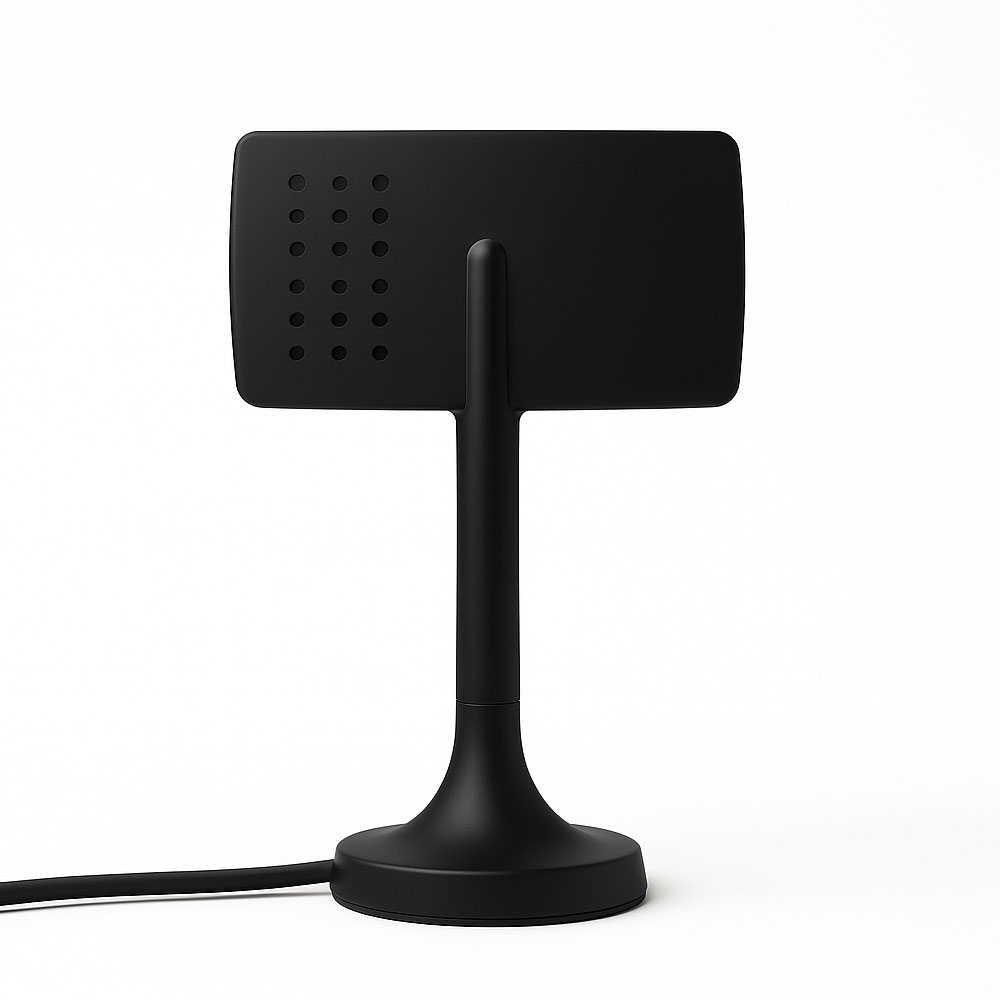

The CX-AB46 Mount Stuck Antenna is a compact, high-performance omnidirectional antenna designed for stable signal reception and transmission. With its magnetic base for easy installation, it is ideal for wireless communication devices, IoT applications, and network systems requiring reliable connectivity.
