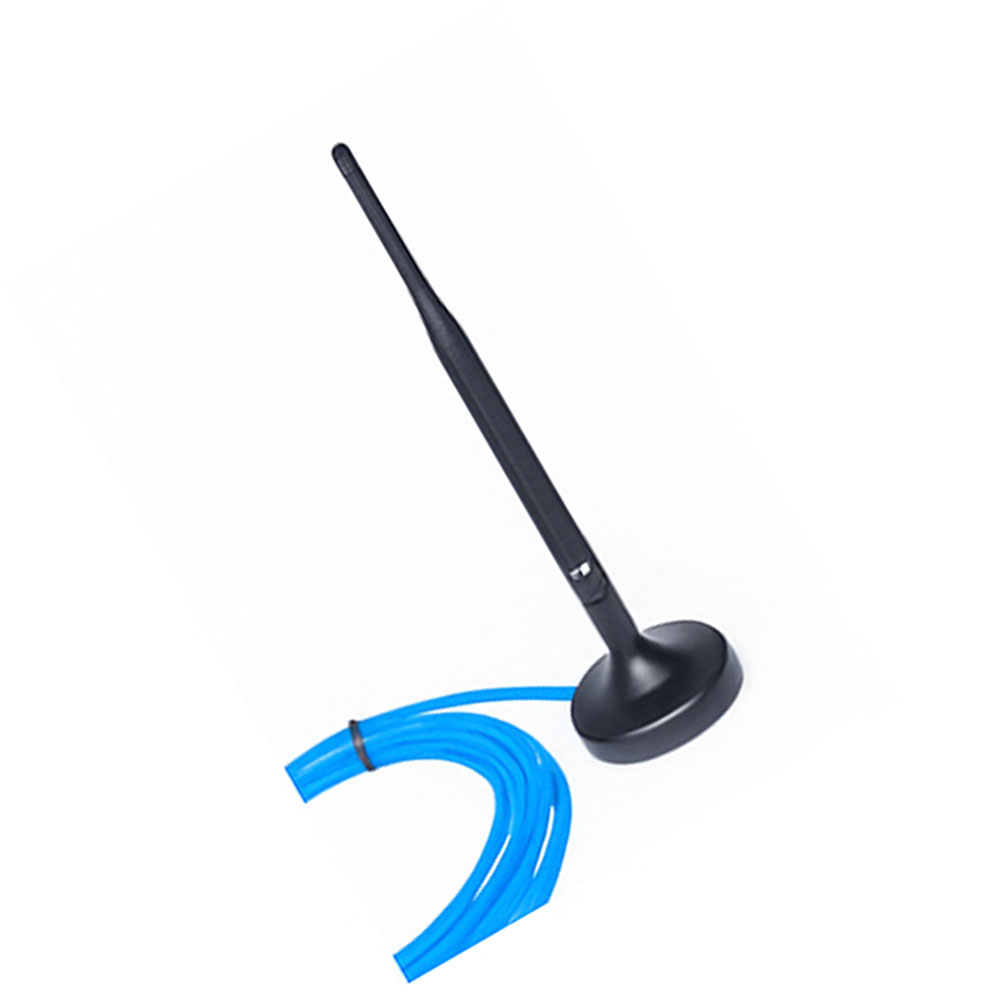

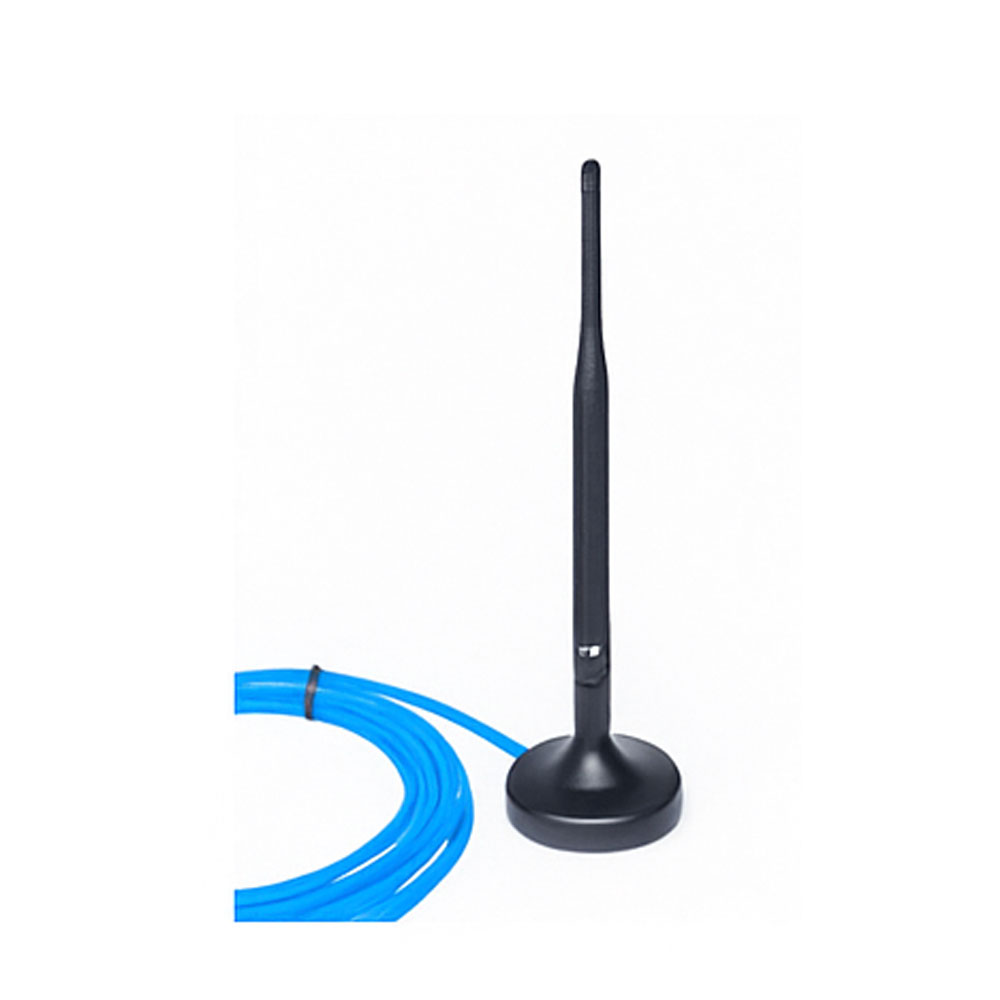

CX-AB46

Mount & Suck Antenna

Frequency Range: 698–960 MHz / 1710–2700 MHz / 3300–3800 MHz (4G/5G Wideband)
Gain: 5–7 dBi (typical)
Polarization: Vertical, Omnidirectional
VSWR: ≤ 2.0
Input Impedance: 50 Ω
Power Handling: Up to 50W
Connector Type: SMA Male / TS9 / CRC9 (customizable on request)
Mounting: Adhesive / Magnetic Mount Stuck Base
Cable Length: 2–3 meters (standard, customizable)
Material: ABS housing with weather-resistant finish
Operating Temperature: -40°C to +85°C
Application: GSM, 3G, 4G LTE, 5G NR, Wi-Fi, IoT, M2M, Vehicle Telematics, Industrial Wireless Systems

Enquire Now

Download Specification

Descritption CX-AB46

The CX-AB46 Mount Stuck Antenna is a high-gain, wideband antenna engineered for superior wireless performance. Designed with a strong adhesive/magnetic base, durable ABS housing, and optimized omnidirectional coverage, it ensures stable connectivity across multiple frequency bands. Ideal for use in IoT devices, routers, telematics, and industrial wireless applications, the CX-AB46 combines efficiency, durability, and ease of installation.
