CX-AB47

Mount & Suck Antenna

Frequency Range: 698–960 MHz / 1710–2700 MHz / 3300–3800 MHz / 4900–5900 MHz (4G/5G/Wi-Fi Wideband)
Gain: 5–8 dBi (typical)
Polarization: Vertical, Omnidirectional
VSWR: ≤ 2.0
Input Impedance: 50 Ω
Power Handling: Up to 50W
Connector Type: SMA Male / TS9 / CRC9 (customizable on request)
Mounting: Adhesive / Magnetic Mount Stuck Base
Cable Length: 2–3 meters (standard, customizable)
Material: ABS housing with UV & weather-resistant finish
Operating Temperature: -40°C to +85°C
Application: GSM, 3G, 4G LTE, 5G NR, Wi-Fi 2.4/5.8 GHz, IoT, M2M, Vehicle Telematics, Industrial Wireless Equipment

Enquire Now

Download Specification

Descritption CX-AB47

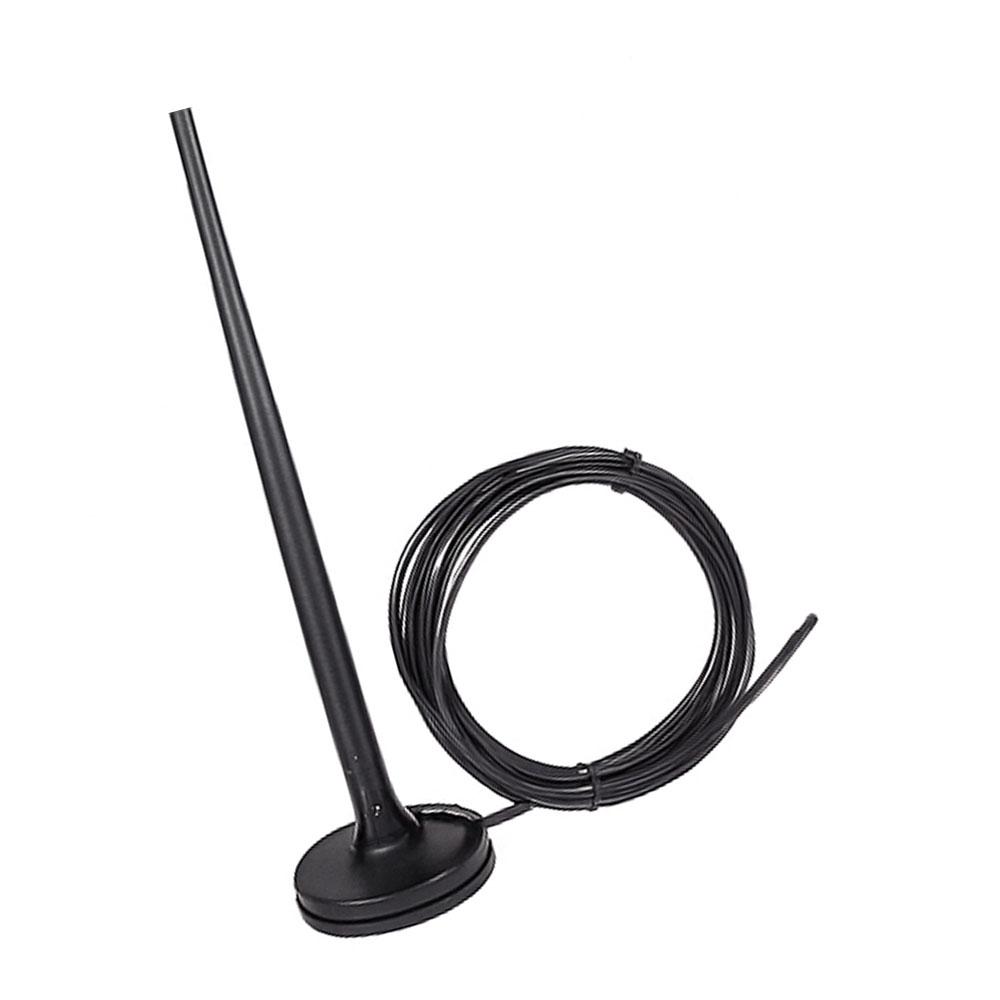

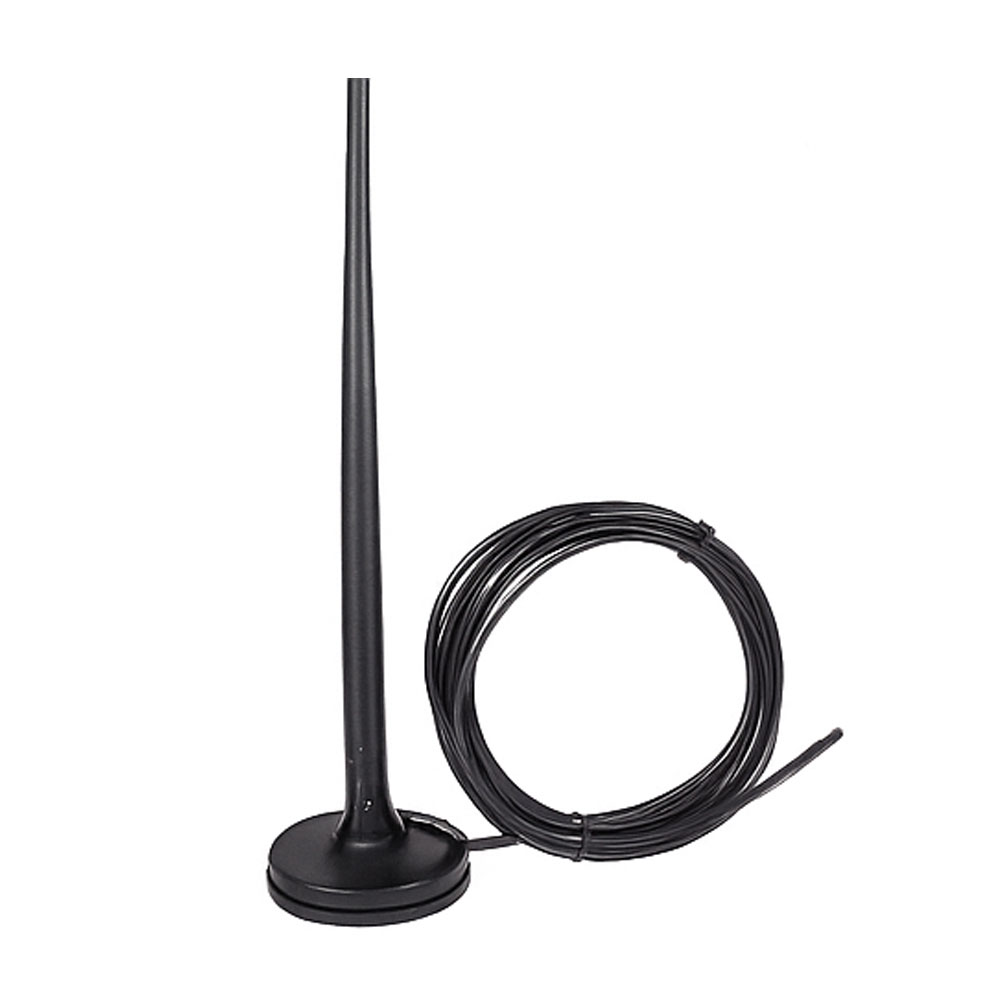

The CX-AB47 Mount Stuck Antenna is a robust, wideband antenna optimized for strong and stable wireless signal coverage. Featuring an adhesive/magnetic mounting base, weather-resistant ABS housing, and broad frequency compatibility, it is engineered for reliable performance in IoT, 4G/5G, Wi-Fi, and industrial wireless applications. Easy to install and highly durable, the CX-AB47 is an ideal choice for both indoor and outdoor deployments.
