CX-BS86

Mount & Suck Antenna

Frequency Range: 698 MHz – 2700 MHz (supports GSM, 3G, 4G LTE, Wi-Fi, NB-IoT, LoRa)
Gain: 3–5 dBi for enhanced signal strength and range
Polarization: Vertical, omnidirectional coverage
VSWR: ≤ 2.0 for efficient impedance matching
Impedance: 50 Ω
Connector Type: SMA Male / RP-SMA / Customizable options available
Mounting Type: Strong magnetic or adhesive stuck base for tool-free installation
Cable: 1.5 m low-loss coaxial cable (customizable length)
Housing Material: Rugged, UV-protected ABS for outdoor durability
Operating Temperature: -40°C to +85°C (suitable for harsh environments)
Applications: IoT gateways, smart meters, routers, fleet tracking systems, telemetry, and M2M communication

Enquire Now

Download Specification

Descritption CX-BS86

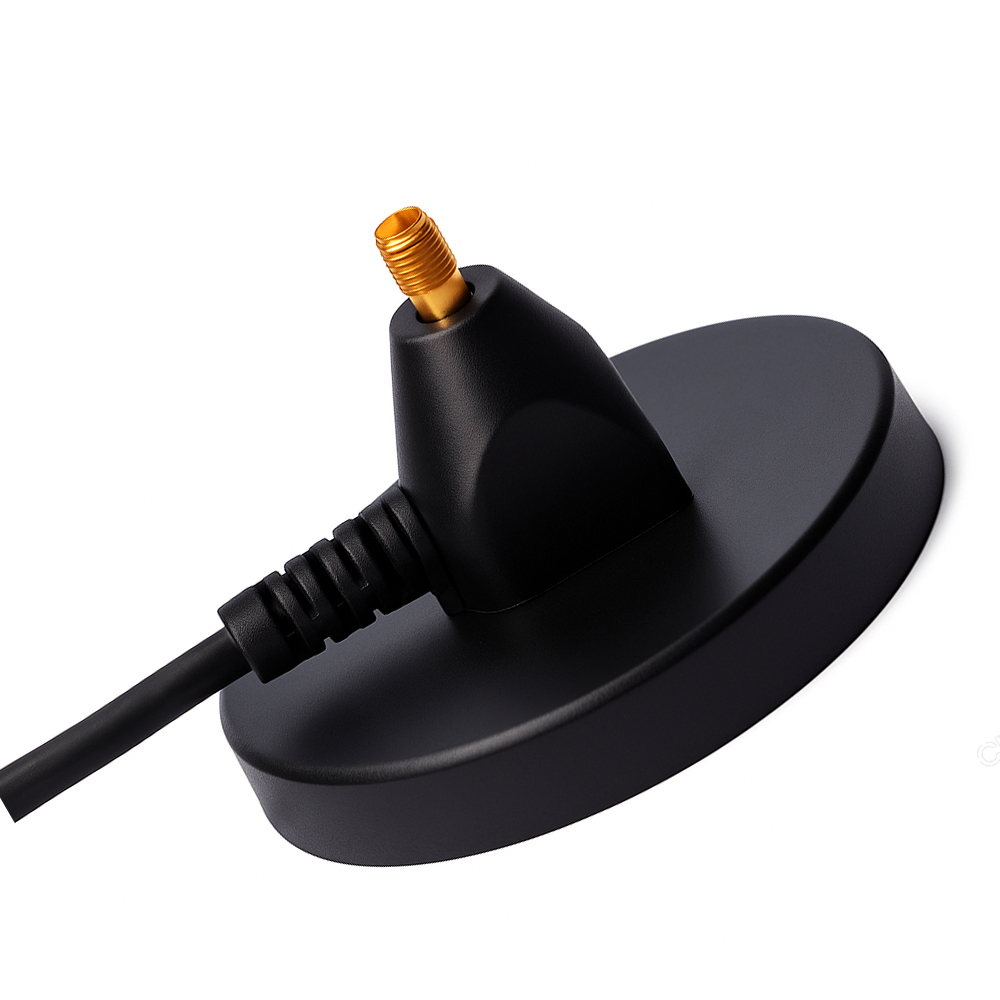

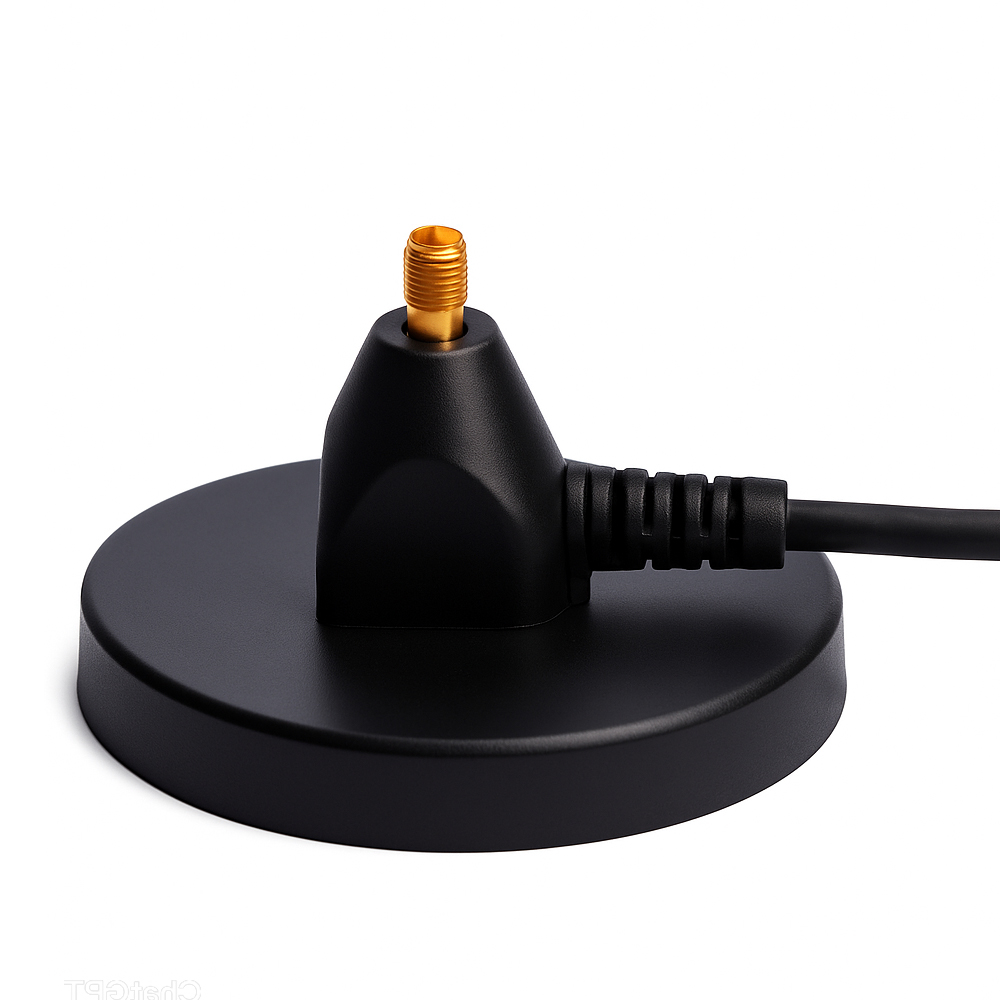

The CX-BS86 is a premium mount stuck antenna designed for high-performance wireless applications, delivering excellent connectivity across a wide frequency range. Its robust magnetic/adhesive base allows quick and secure installation on flat surfaces, making it ideal for mobile, industrial, and IoT setups where reliable signal reception is critical.
