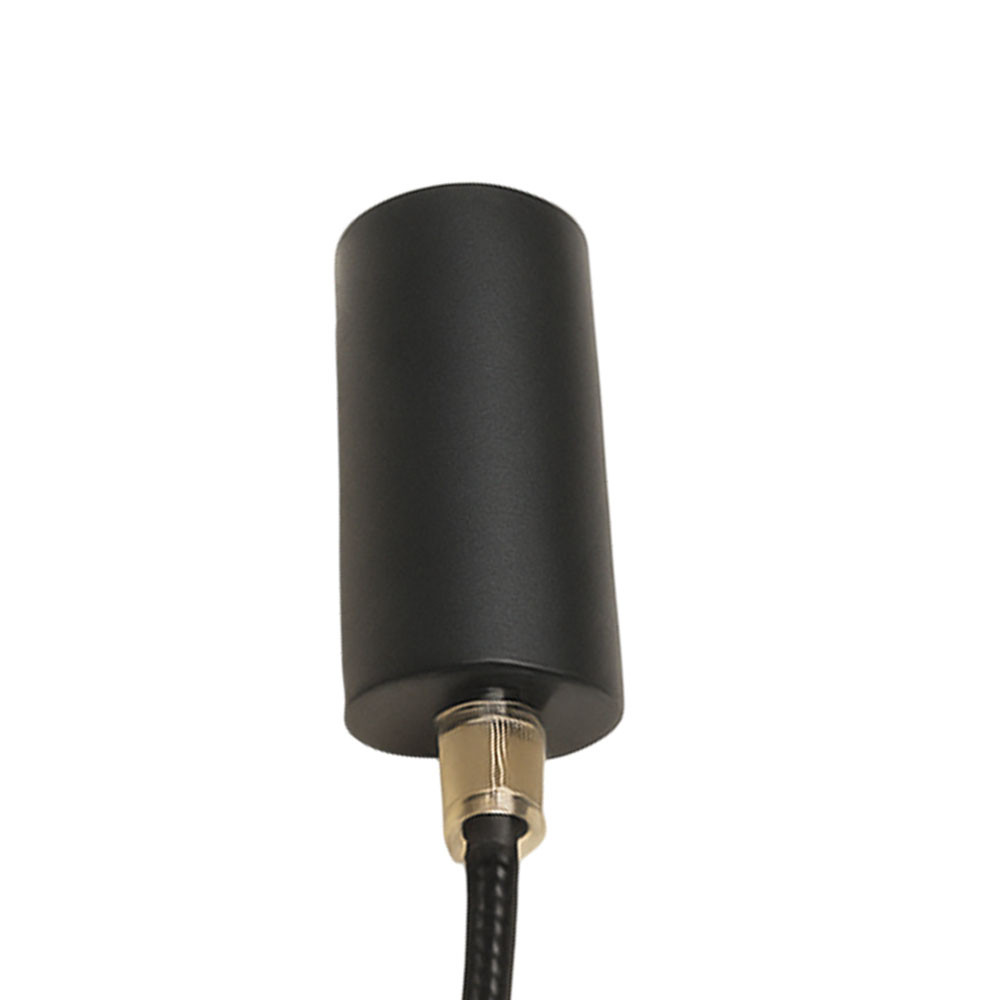

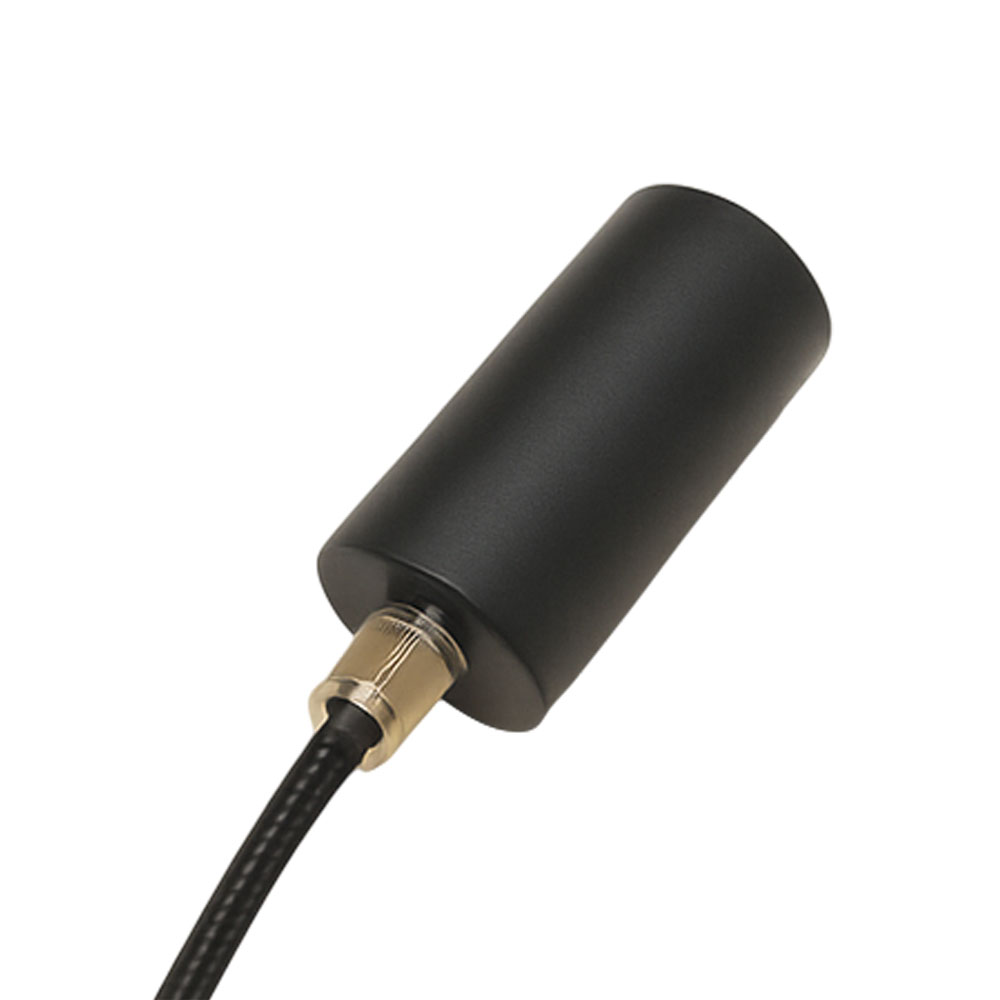

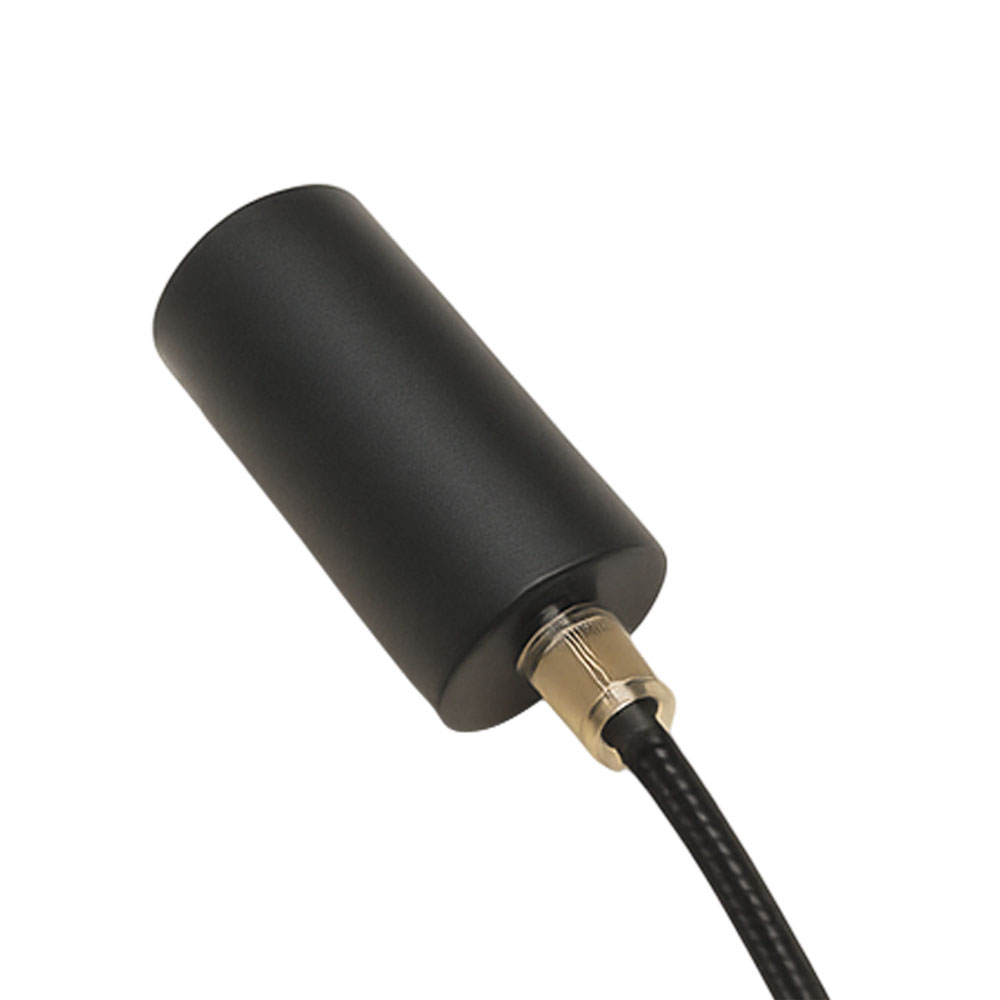

CX-24C

GPS Antenna

Frequency Range: 1575.42 ± 2 MHz (GPS L1), compatible with BeiDou B1 and Galileo E1
Gain: 28 ± 2 dB
VSWR: ≤ 2.0
Noise Figure: ≤ 1.5 dB
Impedance: 50 Ω
Polarization: Right-Hand Circular (RHCP)
Voltage Supply: 2.7 – 5.5 V DC
Current Consumption: ≤ 20 mA
Connector Type: SMA male / MCX / customized options
Cable Length: 3 m (customizable)
Housing Material: ABS, UV-resistant, waterproof (IP67)
Operating Temperature: -40°C to +85°C
Mounting Options: Magnetic base or screw mount

Enquire Now

Download Specification

Descritption CX-24C

The CX-24C GPS Antenna is a compact, high-precision GNSS antenna designed for reliable signal reception and stable performance. With a robust IP67-rated waterproof housing, low noise figure, and wide voltage range, it provides excellent positioning accuracy for industrial, automotive, and outdoor navigation applications.
