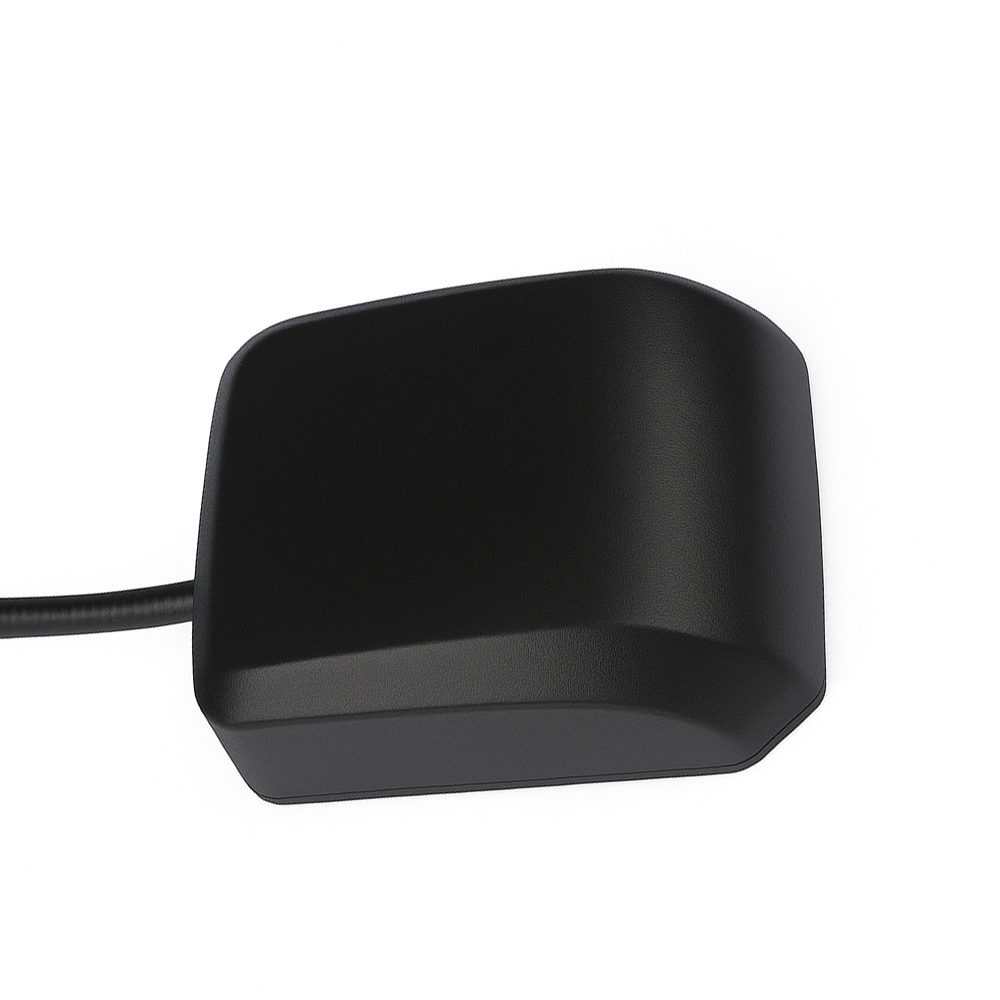

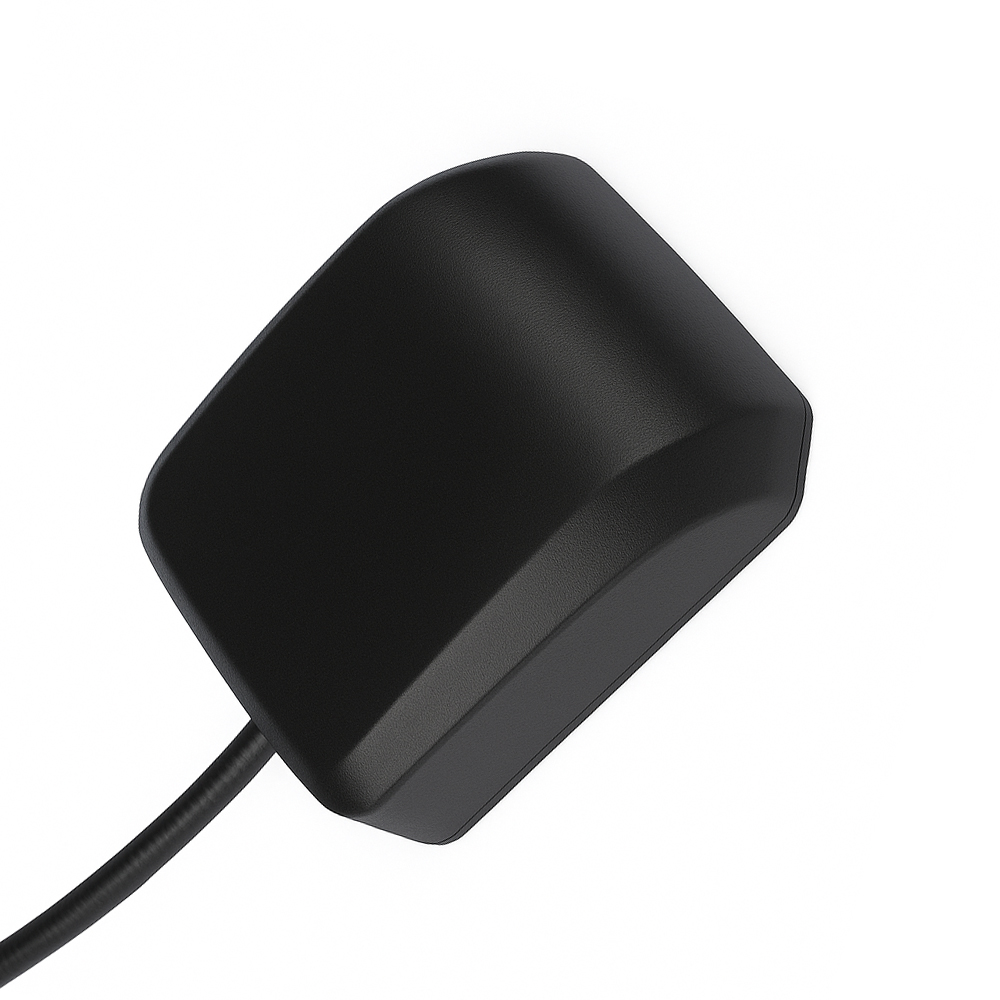

CX-AG02

GPS Antenna

Frequency Range: 1575.42 MHz (GPS L1)
Gain: 28 dB (Active)
Voltage: 3–5V DC
Connector Type: SMA Male / Customizable
Cable Length: 3m (custom options available)
Impedance: 50 Ω
VSWR: ≤ 2.0
Polarization: Right-Hand Circular Polarization (RHCP)
Housing Material: ABS, black, weatherproof
Mounting Type: Magnetic / Adhesive base
Operating Temperature: -40°C to +85°C

Enquire Now

Download Specification

Descritption CX-AG02

The CX-AG02 GPS Antenna is a high-performance external antenna designed to deliver precise positioning and stable satellite signal reception. Compact and weather-resistant, it is ideal for navigation systems, vehicle tracking, and outdoor IoT applications that demand consistent GPS connectivity.
