CX-AG04

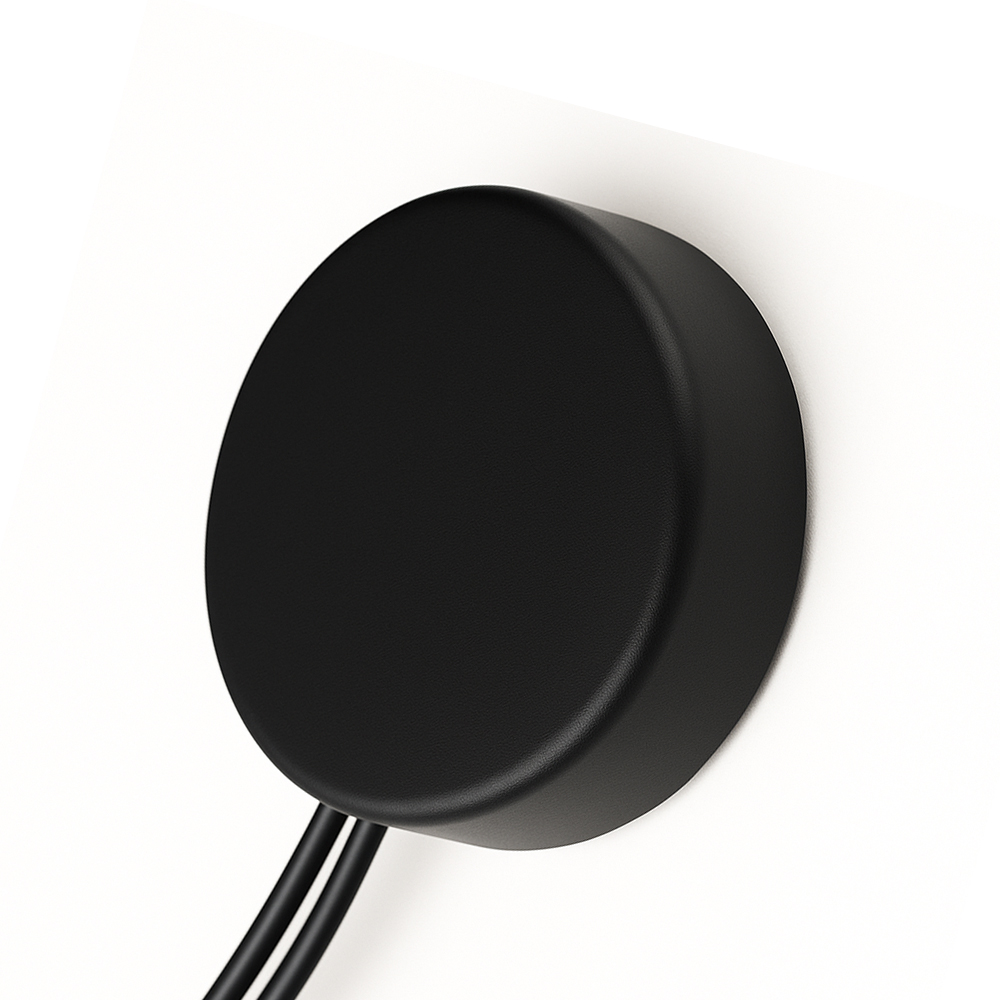

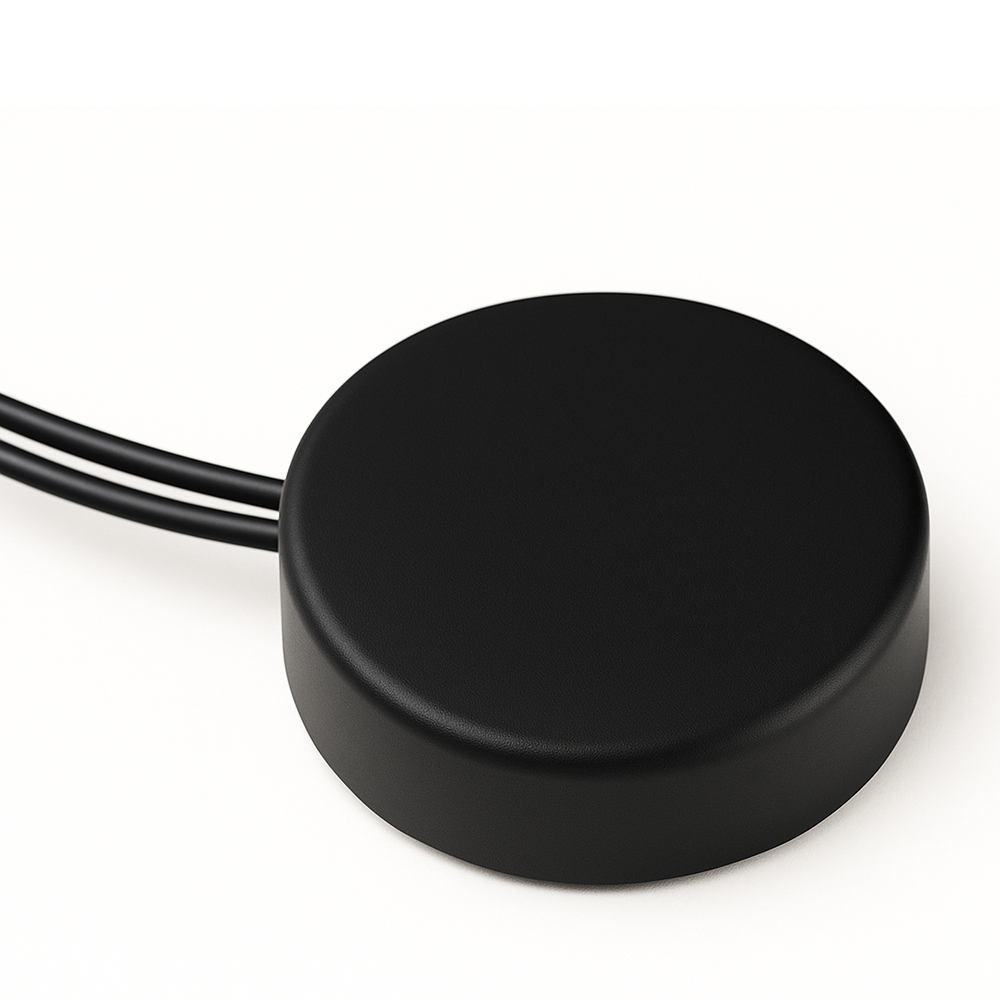

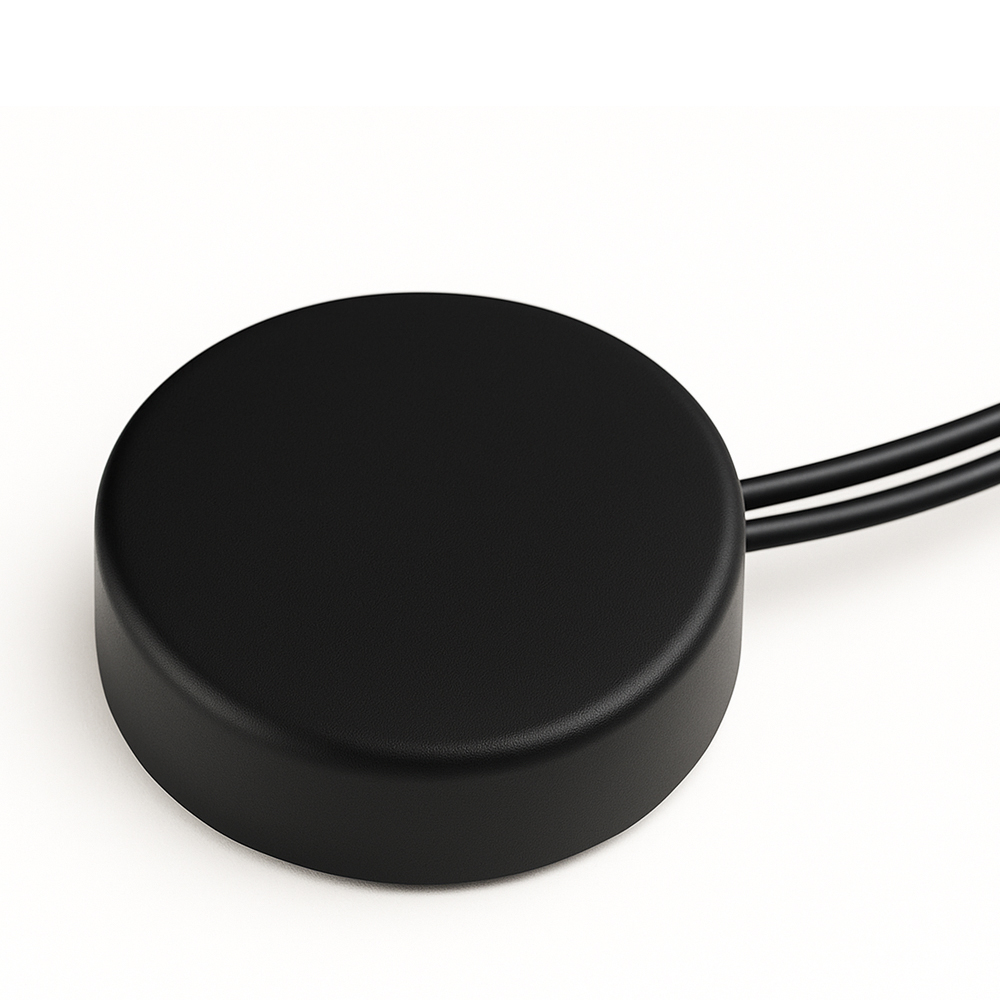

GPS Antenna

Frequency Range: 1575.42 ± 1.023 MHz (GPS L1 Band)
Gain: Passive: ~3 dBi, Active: 28 ± 2 dB (with LNA)
VSWR: ≤ 2.0
Noise Figure: ≤ 2.0 dB
Polarization: Right-Hand Circular (RHCP)
Impedance: 50 Ω
Power Supply: 3–5 V DC (typical 3.3 V)
Current Consumption: ≤ 20 mA
Connector Type: SMA-Male / MCX / SMB (customizable)
Cable Length: 3–5 meters (custom option)
Casing Material: ABS or PC, IP67-rated waterproof housing
Operating Temperature: -40°C to +85°C
Mounting Type: Magnetic / Adhesive base
Applications: GPS tracking, navigation systems, timing synchronization, and IoT devices

Enquire Now

Download Specification

Descritption CX-AG04

The CX-AG04 GPS Antenna is a compact, high-sensitivity active antenna designed for precise satellite positioning and navigation. It offers excellent signal reception and stability in challenging environments, making it ideal for automotive, fleet tracking, IoT, and timing applications. The robust, low-profile housing ensures reliable performance under harsh outdoor conditions.
