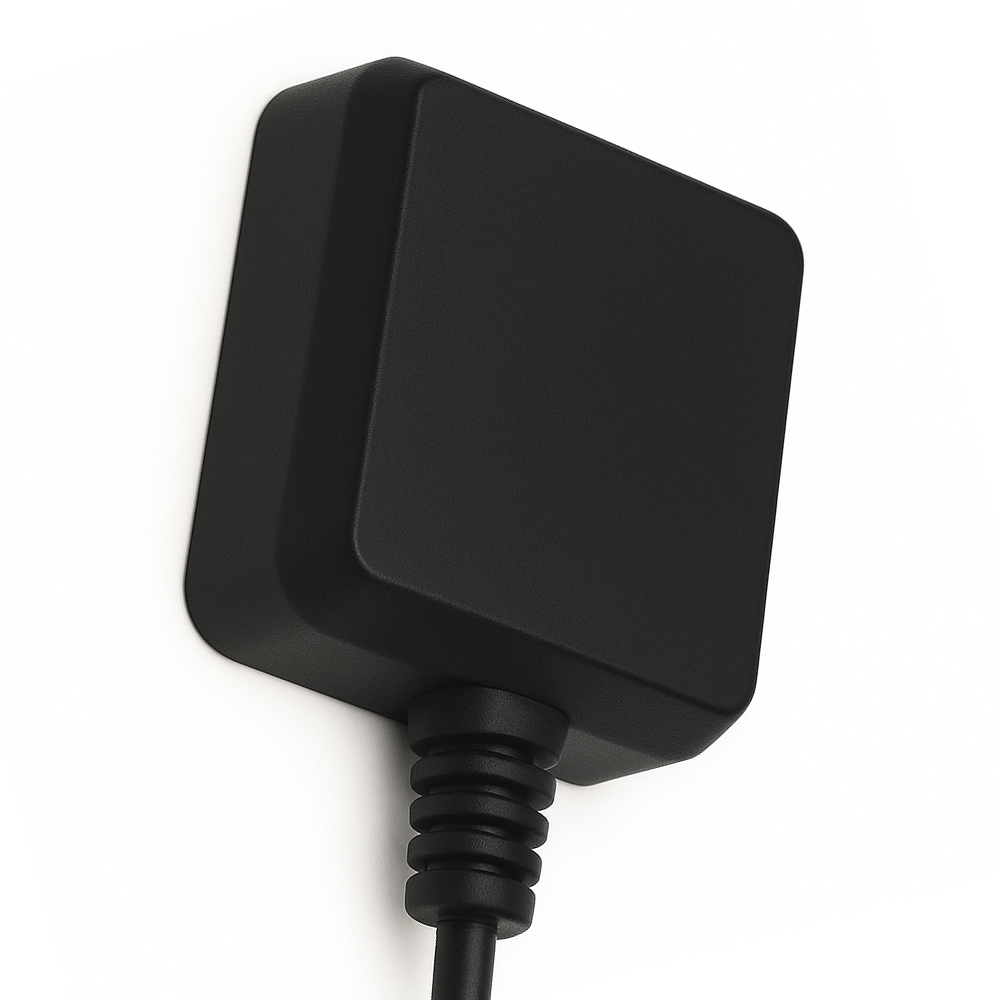

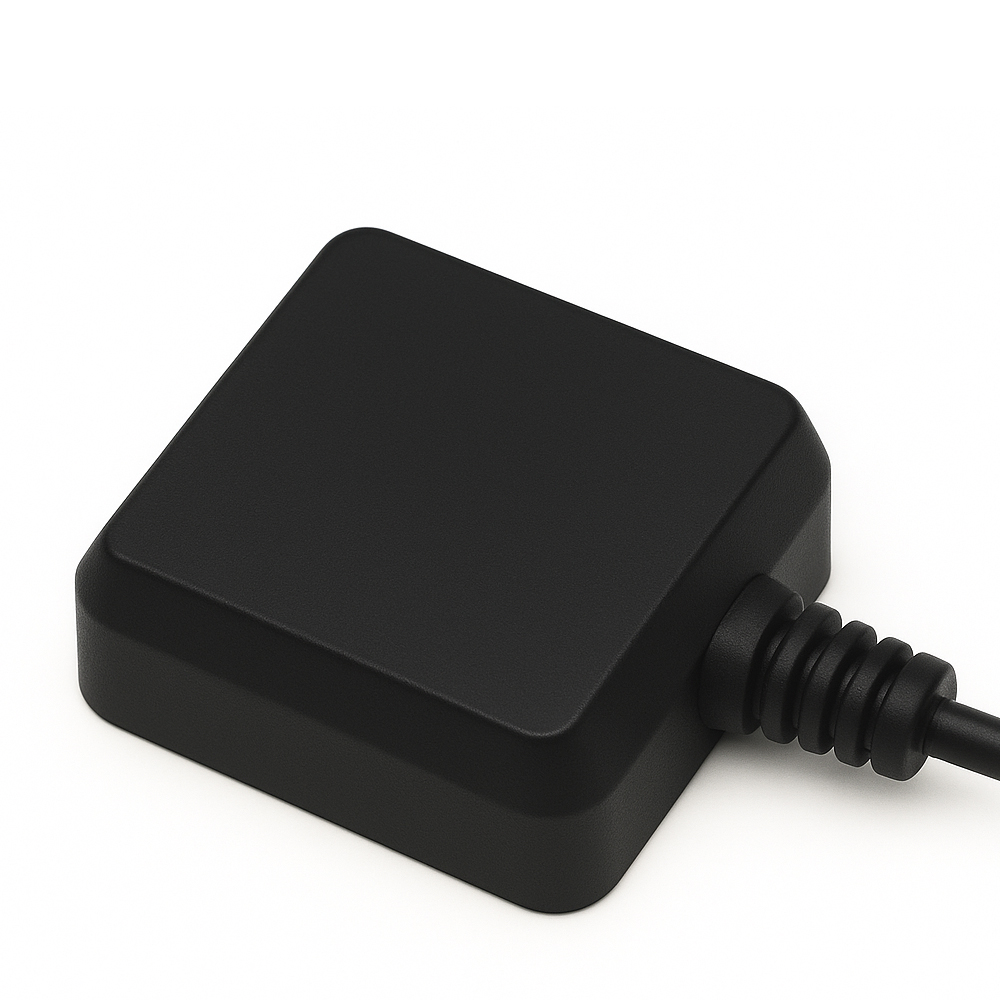

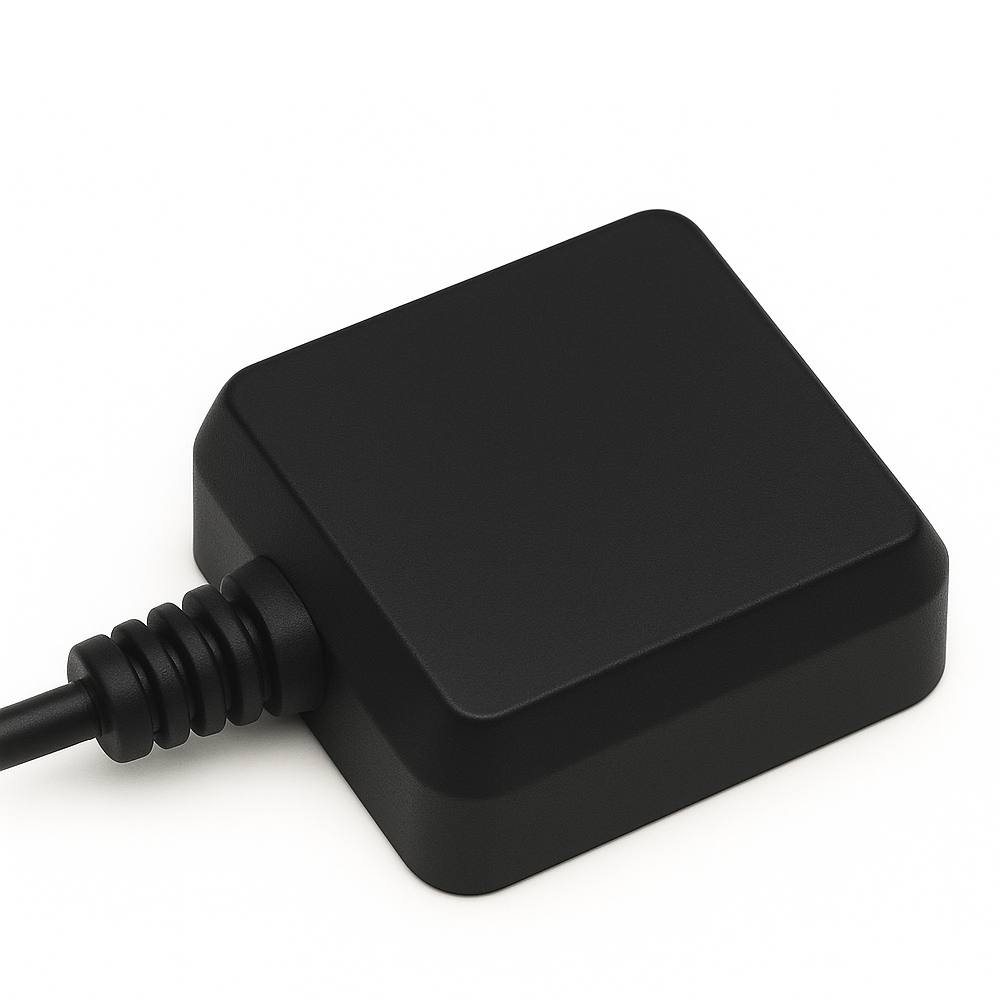

CX-AG05

GPS Antenna

Frequency Range: 1575.42 ± 1.023 MHz (GPS L1 Band)
Gain: Passive: ~3 dBi, Active: 28 ± 2 dB (with built-in LNA)
Noise Figure: ≤ 2.0 dB
VSWR: ≤ 2.0
Polarization: Right-Hand Circular (RHCP)
Impedance: 50 Ω
Power Supply: 3 – 5 V DC (typical 3.3 V)
Current Consumption: ≤ 25 mA
Connector Type: SMA / SMB / MCX (customizable)
Cable Length: 3 – 5 meters (optional)
Mounting Type: Magnetic or adhesive base
Casing Material: Durable ABS plastic, IP67-rated waterproof housing
Operating Temperature: -40°C to +85°C
Applications: GPS tracking, vehicle navigation, IoT devices, and precise timing systems

Enquire Now

Download Specification

Descritption CX-AG05

The CX-AG05 GPS Antenna is a high-performance active antenna engineered for precision positioning and navigation systems. It provides superior satellite signal reception, low noise, and high gain, making it ideal for automotive tracking, fleet management, IoT, and timing synchronization applications. Its rugged, weather-resistant design ensures long-lasting performance in outdoor environments.
