CX-AG08

GPS Antenna

Frequency Range: 1575.42 ± 1 MHz
Polarization: Right-Hand Circular (RHCP)
Gain: 28 ± 2 dB (Active)
VSWR: ≤ 1.5:1
Noise Figure: ≤ 1.5 dB
Output Impedance: 50 Ω
Voltage: 3–5V DC
Current Consumption: ≤ 20 mA
Connector Type: SMA/MCX/Customized
Cable Length: 3m (customizable)
Mounting Type: Magnetic base
Housing Material: ABS, weatherproof design
Operating Temperature: -40°C to +85°C

Enquire Now

Download Specification

Descritption CX-AG08

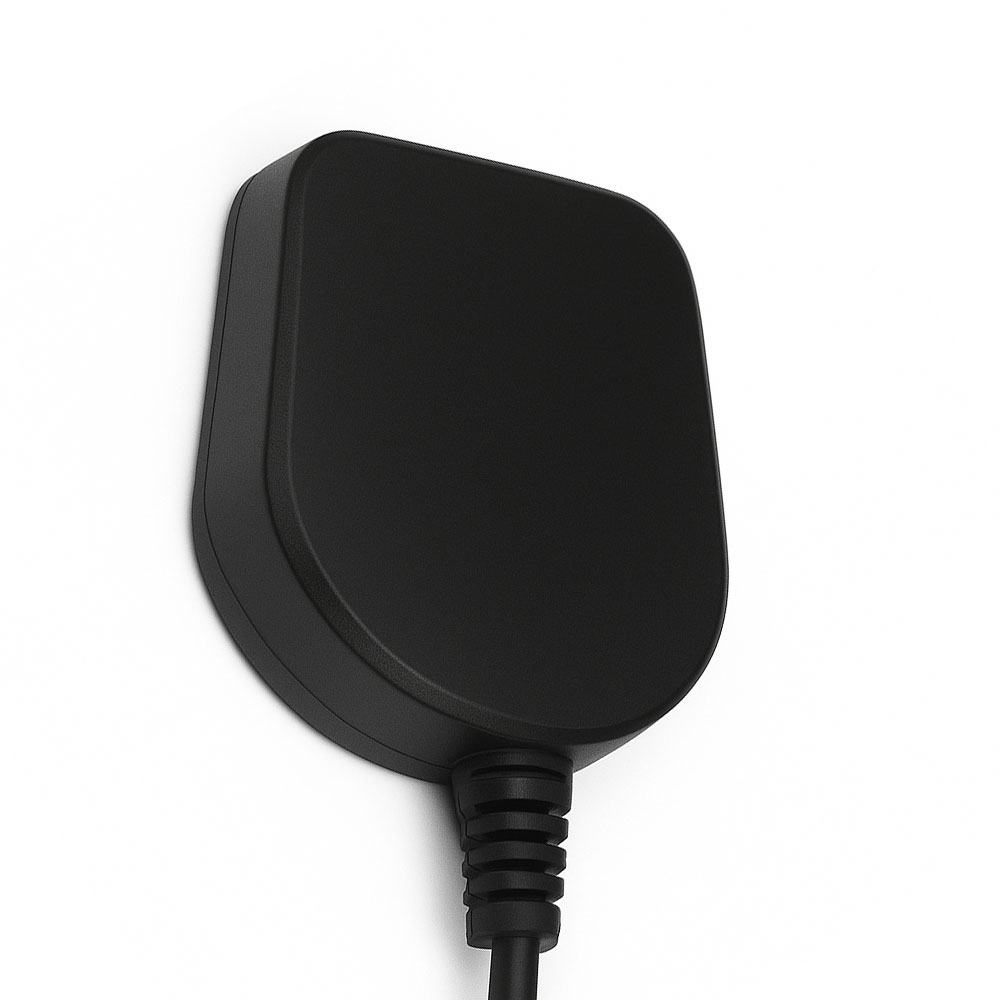

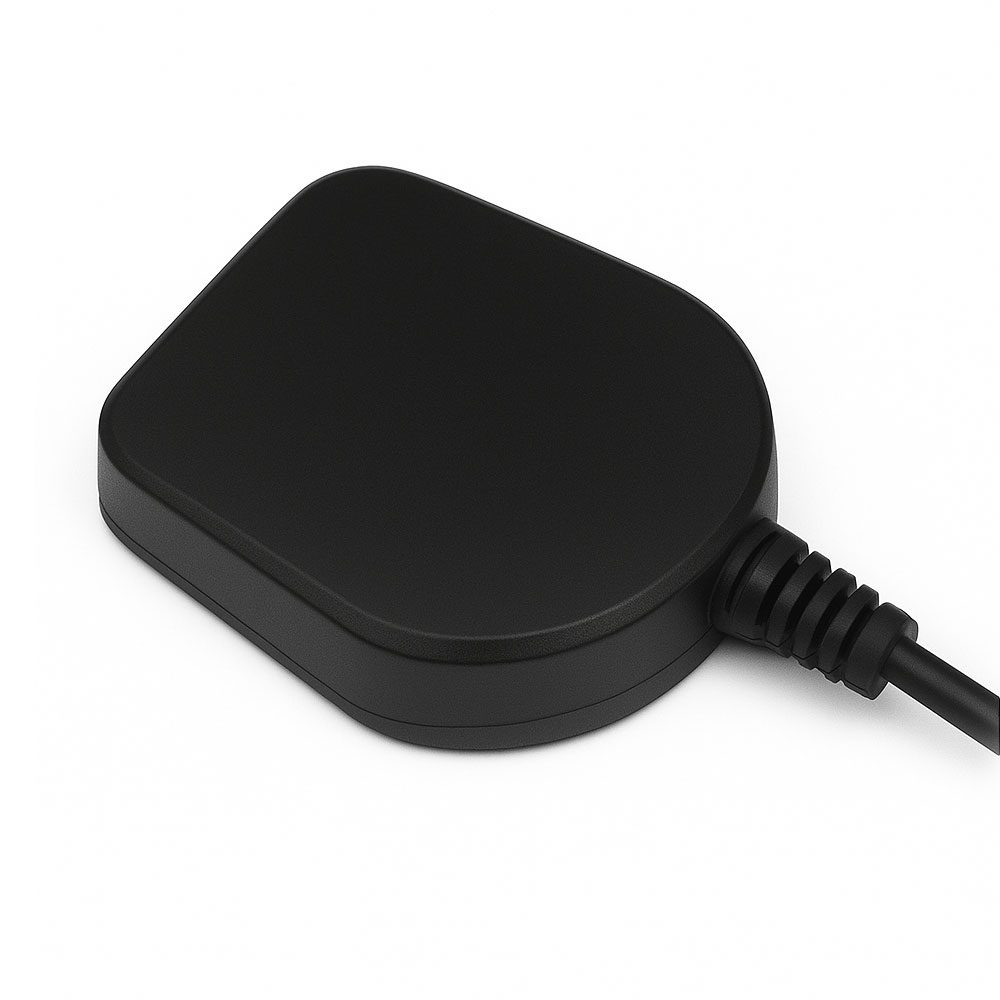

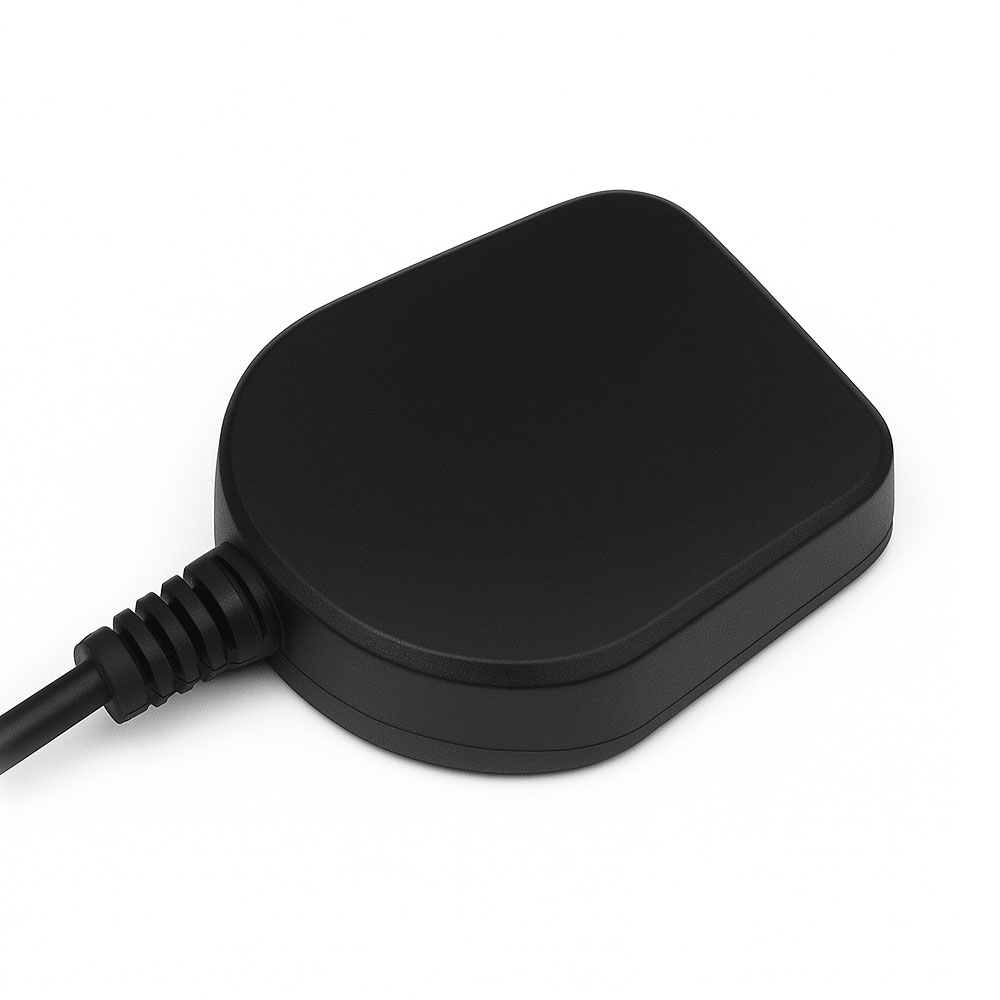

The GPS Antenna CX-AG08 is a high-performance, compact external antenna designed to provide accurate and stable GPS signal reception for navigation, tracking, and timing applications. Its durable housing and magnetic mount design make it suitable for use in vehicles, outdoor systems, and industrial environments.
