CX-AG11

GPS Antenna

Frequency Range: 1575.42 MHz (GPS L1)
Gain: 28 dB ± 2 dB
VSWR: ≤ 1.5:1
Impedance: 50 Ω
Noise Figure: ≤ 2.0 dB
Voltage: 3–5V DC
Connector Type: SMA Male / Customizable
Cable Length: 3m standard (custom lengths available)
Mounting: Magnetic base for strong hold
Housing Material: ABS plastic, weather-resistant
Operating Temperature: -40°C to +85°C

Enquire Now

Download Specification

Descritption CX-AG11

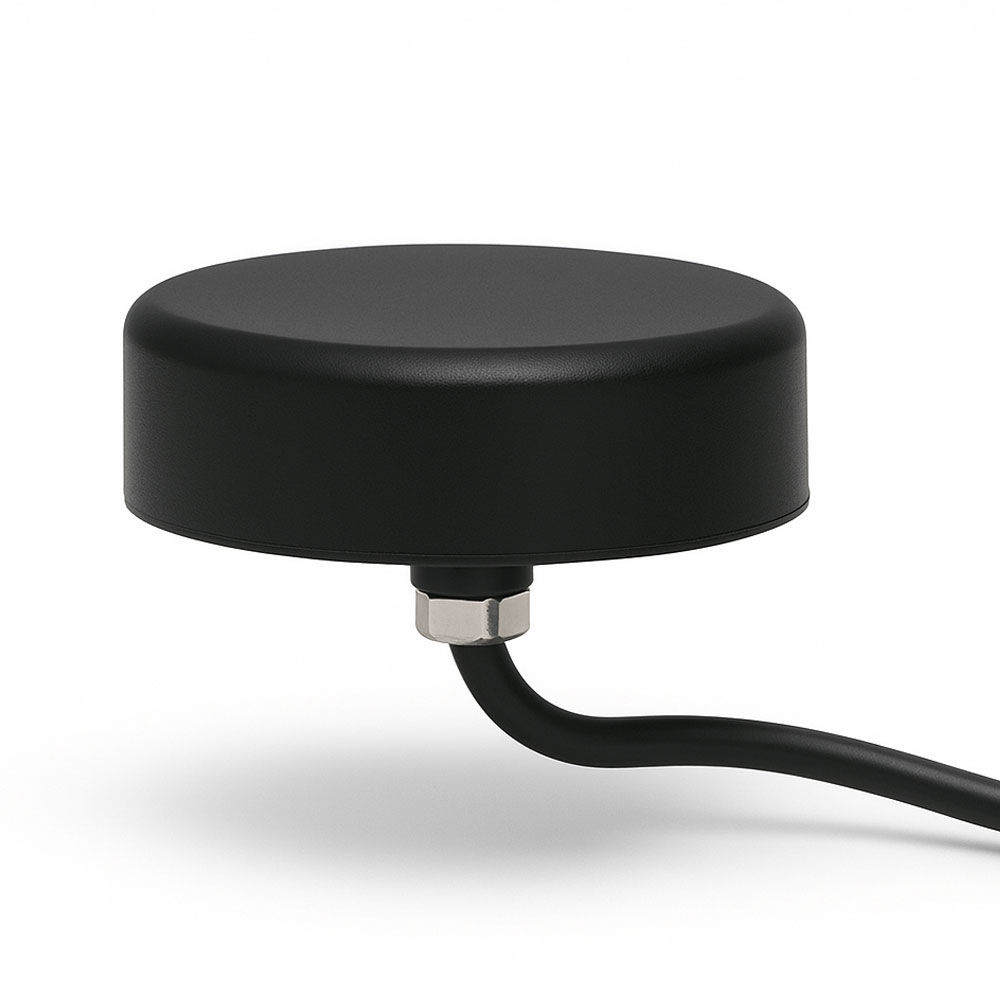

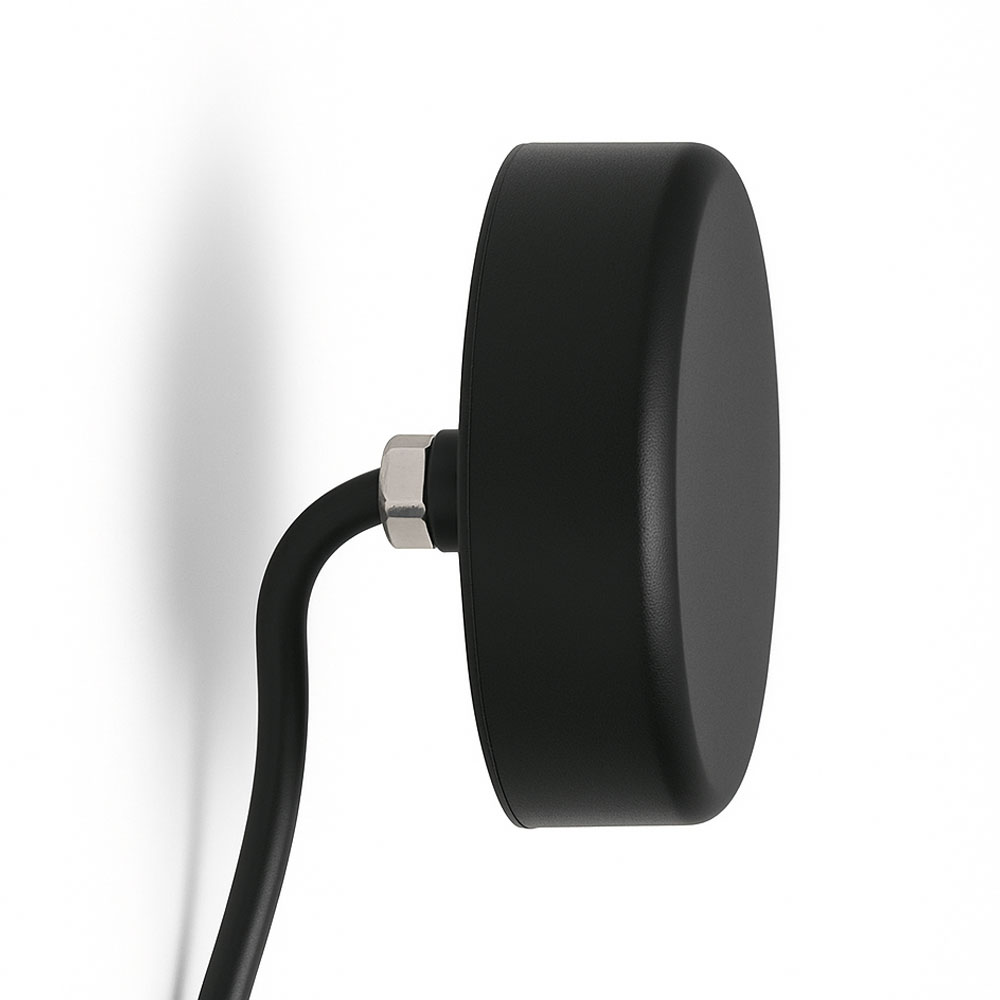

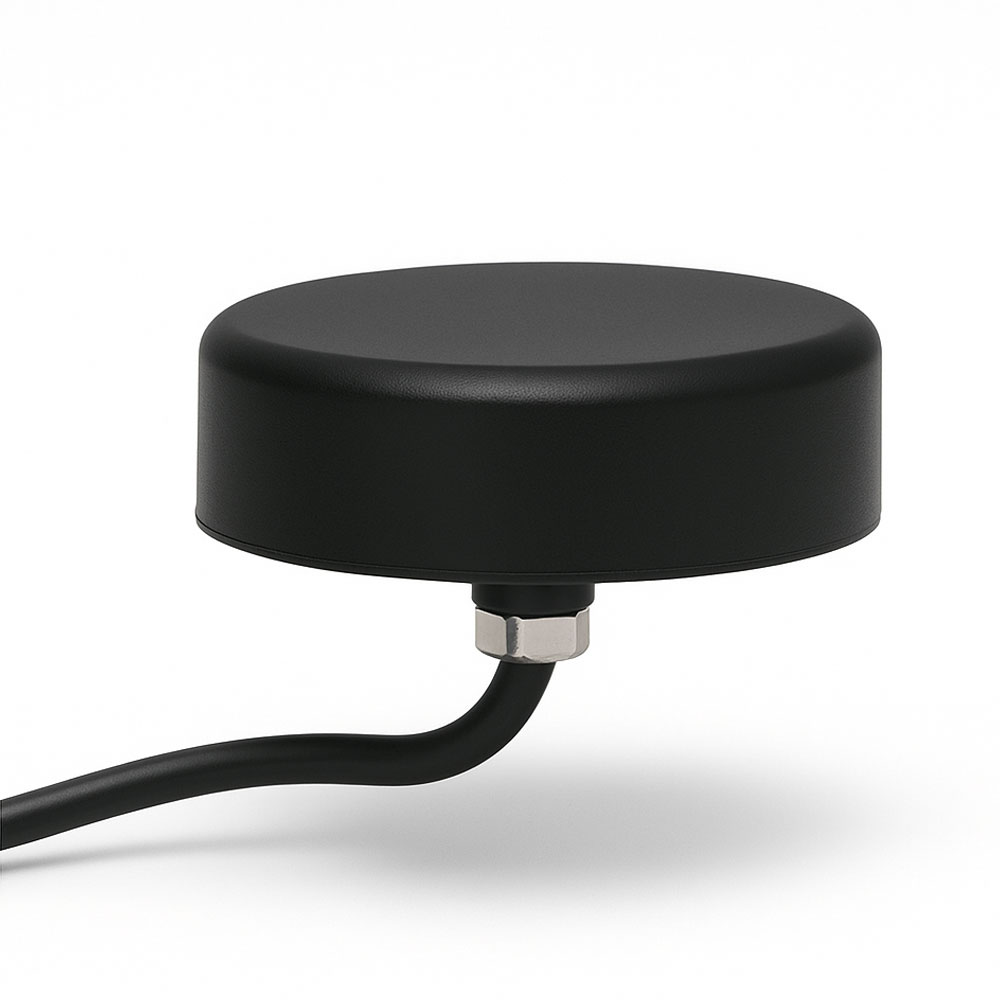

The GPS Antenna CX-AG11 is a compact, high-performance antenna designed for accurate and stable satellite signal reception. With a durable housing and integrated magnetic base, it offers easy installation and reliable connectivity for vehicle tracking, navigation, and industrial GPS systems.
