CX-AG12

GPS Antenna

Frequency Range: 1575.42 MHz (GPS L1)
Gain: 28 dB typical with LNA
VSWR: ≤ 2.0:1
Polarization: Right-Hand Circular Polarization (RHCP)
Impedance: 50 Ω
Noise Figure: ≤ 2.0 dB
Voltage: 3 – 5 V DC
Connector Type: SMA Male / Customizable
Cable Length: 3 m (custom options available)
Housing Material: ABS plastic, waterproof (IP67)
Mount Type: Magnetic or adhesive base
Operating Temperature: -40°C to +85°C

Enquire Now

Download Specification

Descritption CX-AG12

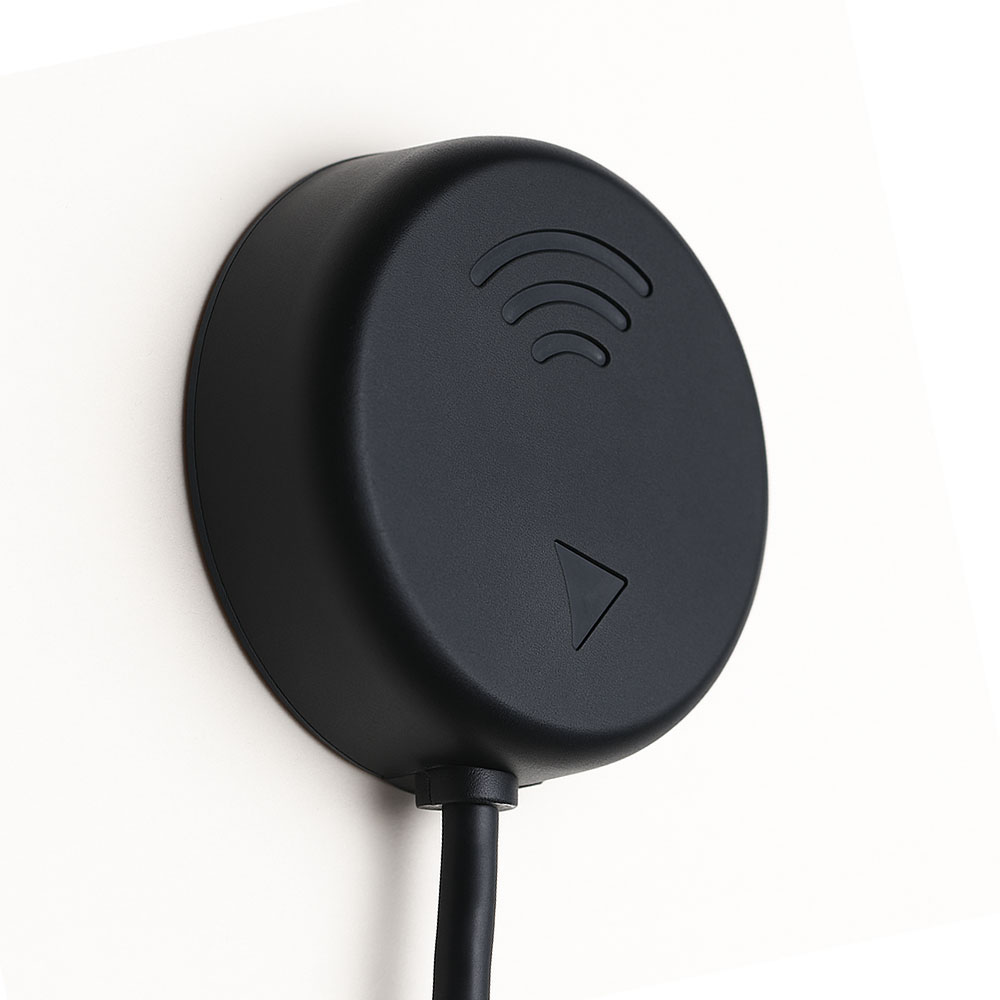

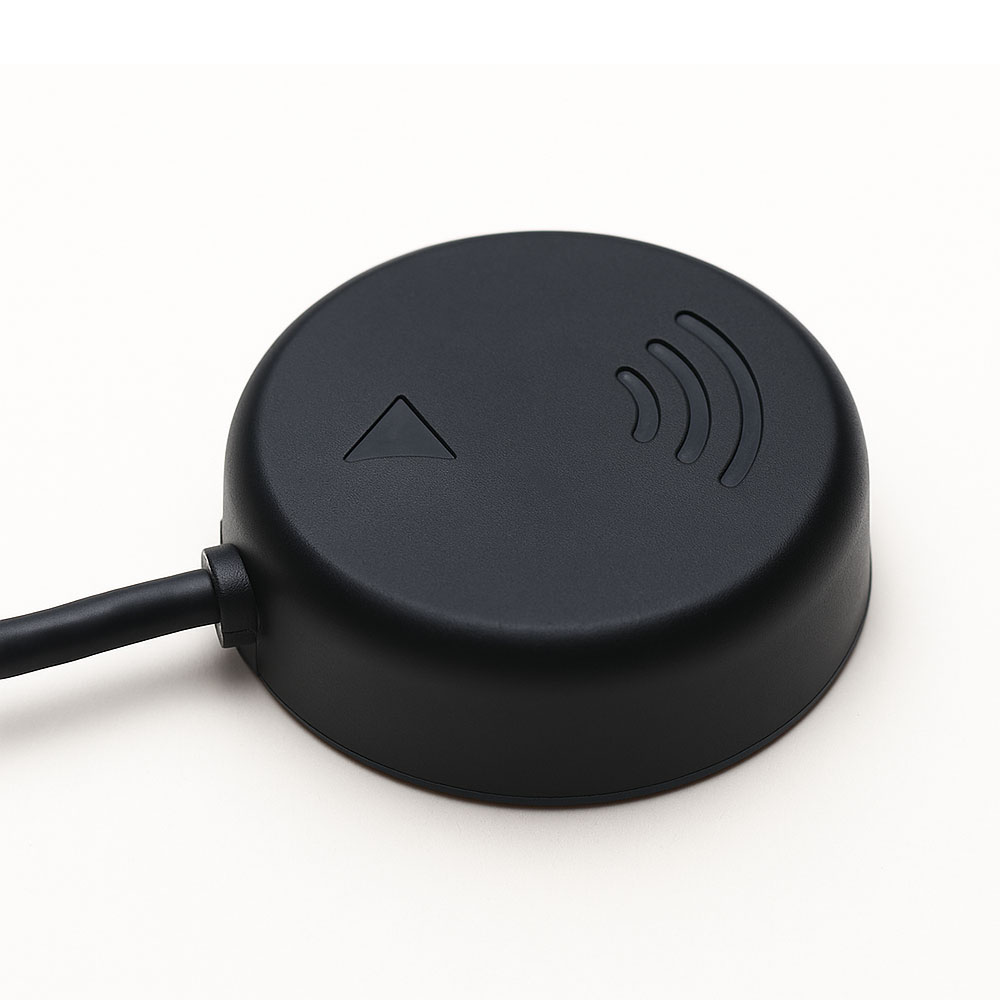

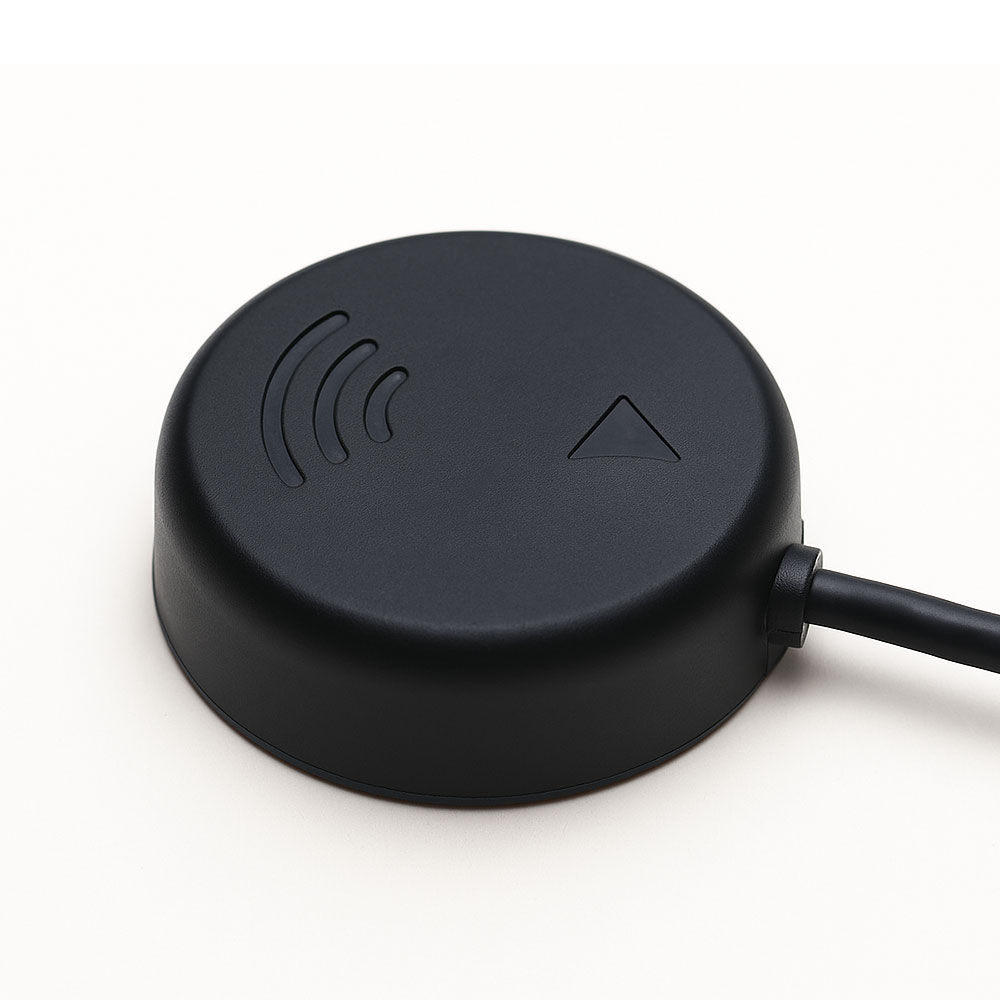

The GPS Antenna CX-AG12 is a high-performance, low-profile external antenna designed for stable and accurate GPS signal reception. Its compact, weather-resistant housing ensures reliable performance in both indoor and outdoor environments, making it ideal for vehicle tracking, navigation systems, and industrial positioning applications.
