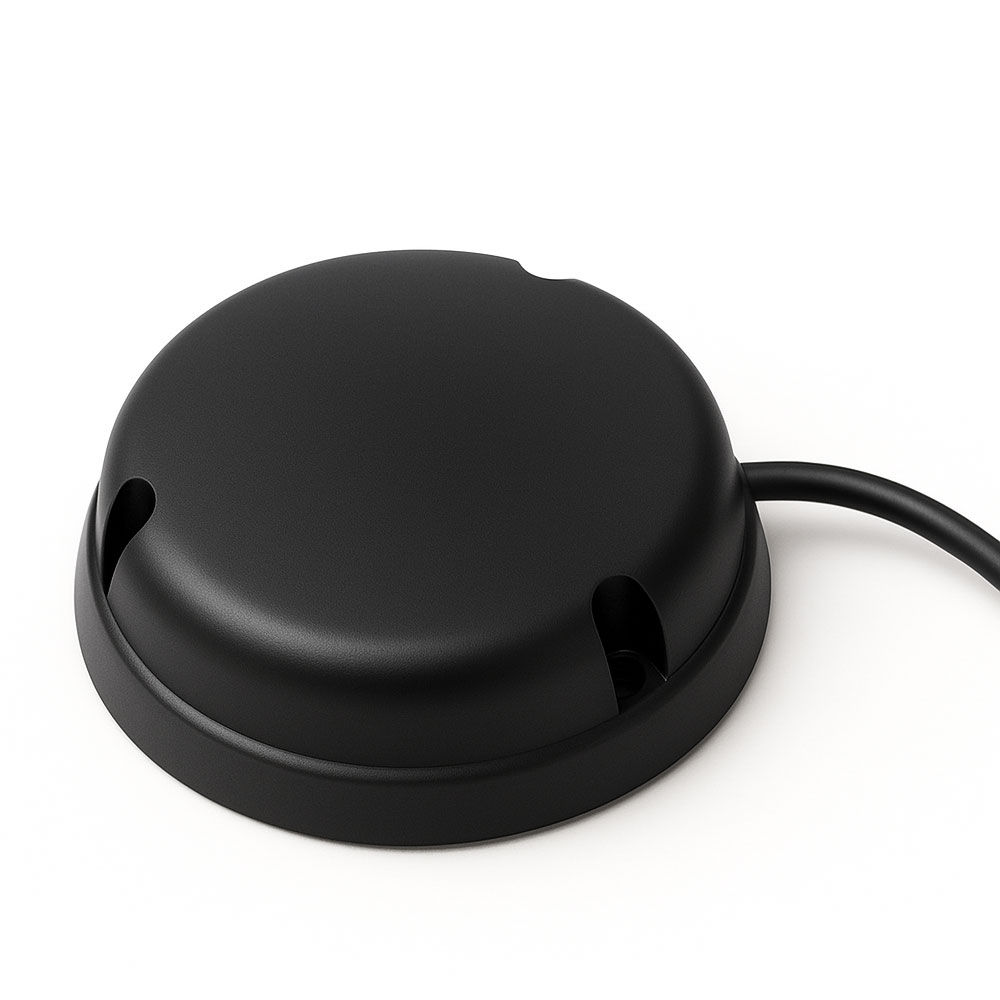

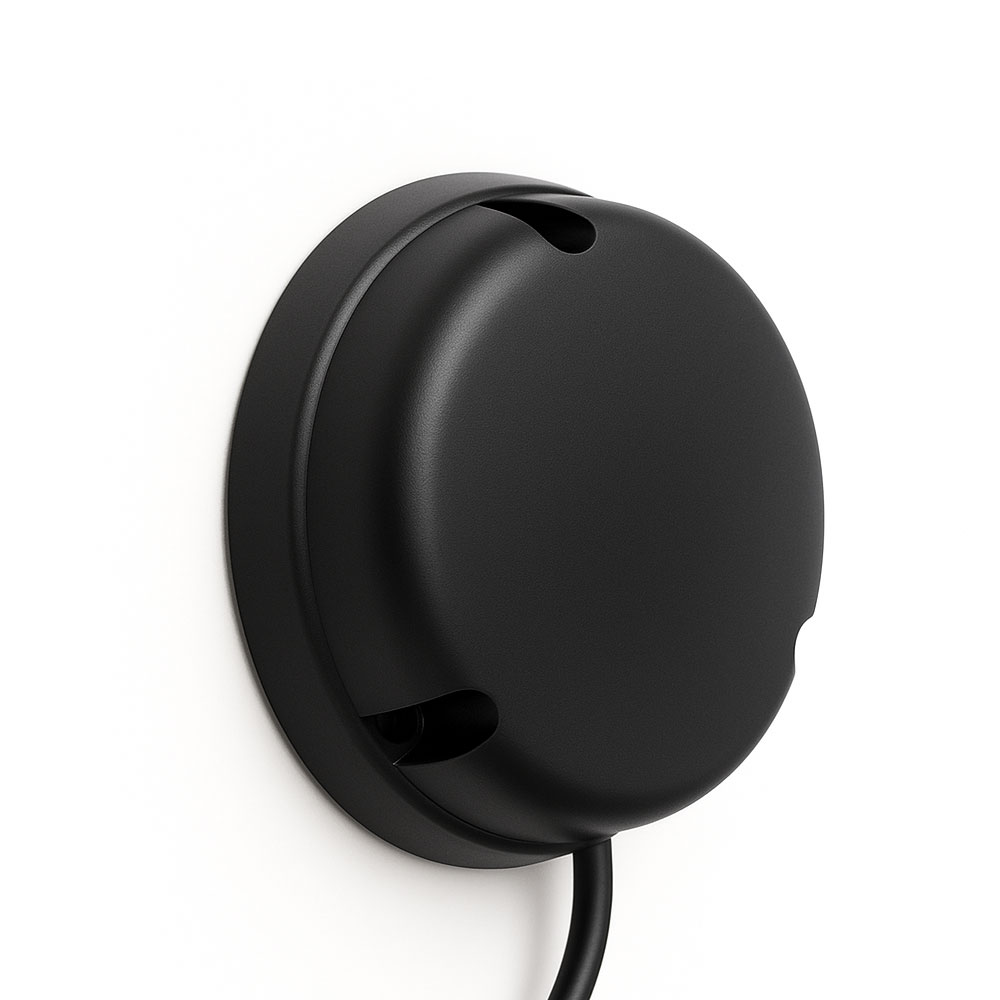

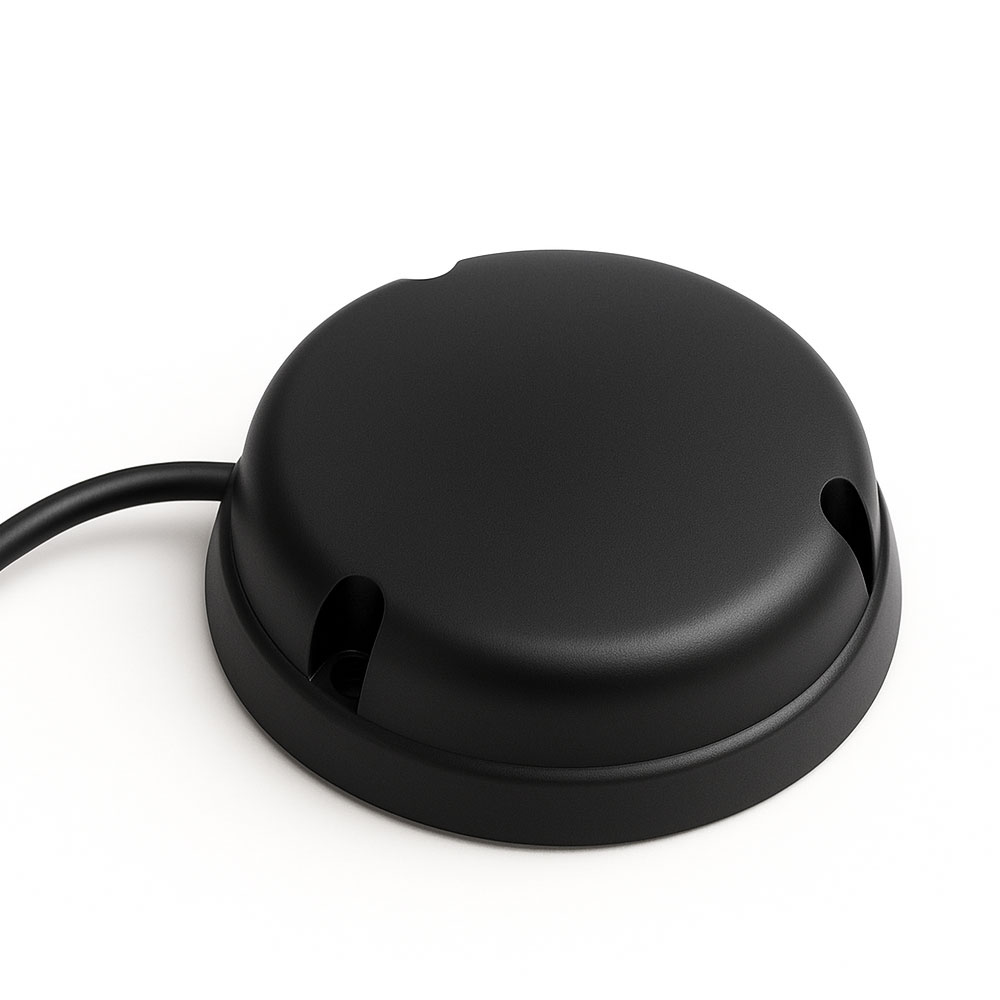

CX-AG20

GPS Antenna

  • Frequency Range: 1575.42 ± 1 MHz (GPS L1)
  • Gain: 28 ± 2 dB
  • VSWR: ≤ 2.0
  • Noise Figure: ≤ 1.5 dB
  • Impedance: 50 Ω
  • Polarization: Right-Hand Circular (RHCP)
  • Voltage: 2.7 – 5.5 V DC
  • Current Consumption: ≤ 20 mA
  • Connector Type: SMA / MCX / Customized
  • Cable Length: 3 m (customizable)
  • Housing Material: ABS, waterproof IP67
  • Operating Temperature: -40°C to +85°C
  • Mounting: Magnetic or screw-mount options


Descritption CX-AG20

The GPS Antenna CX-AG20 is a rugged, high-performance GNSS antenna designed for stable and precise positioning. Its low-profile, weatherproof housing ensures reliability in harsh environments, making it ideal for automotive, fleet management, and outdoor navigation systems.
