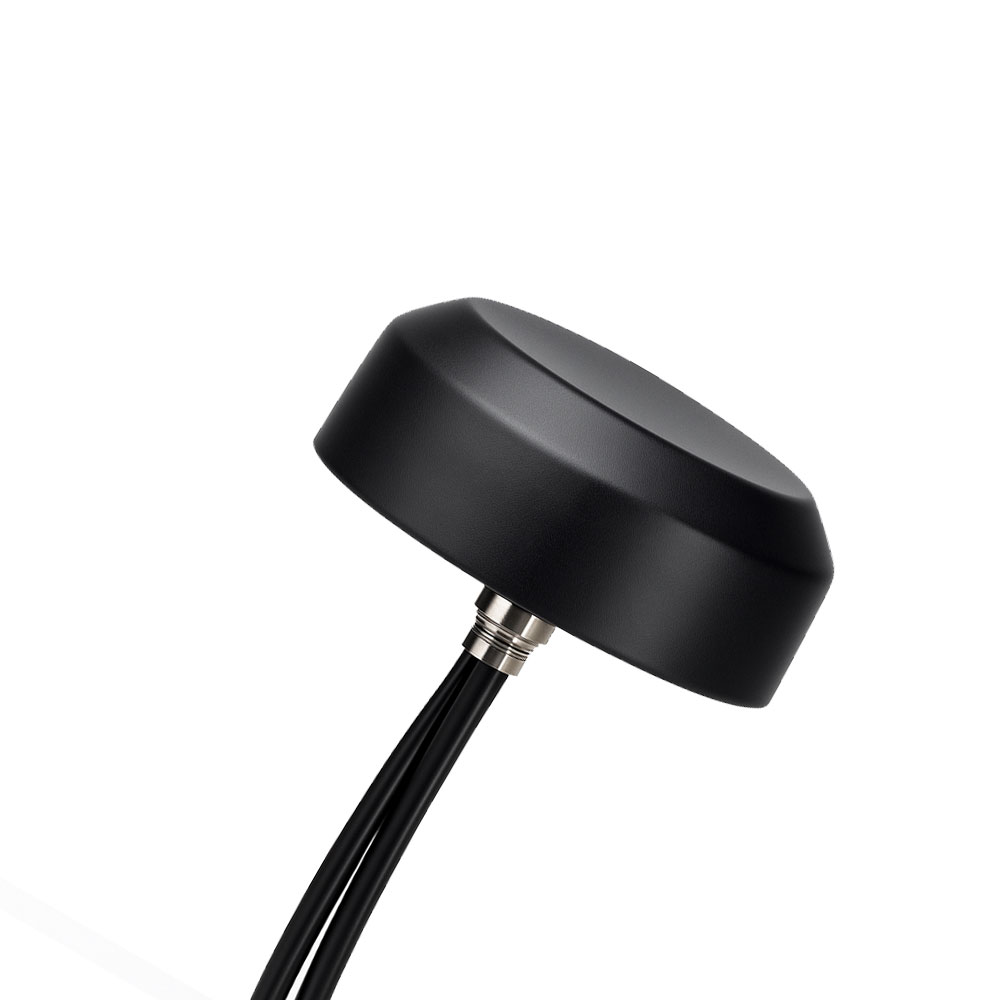

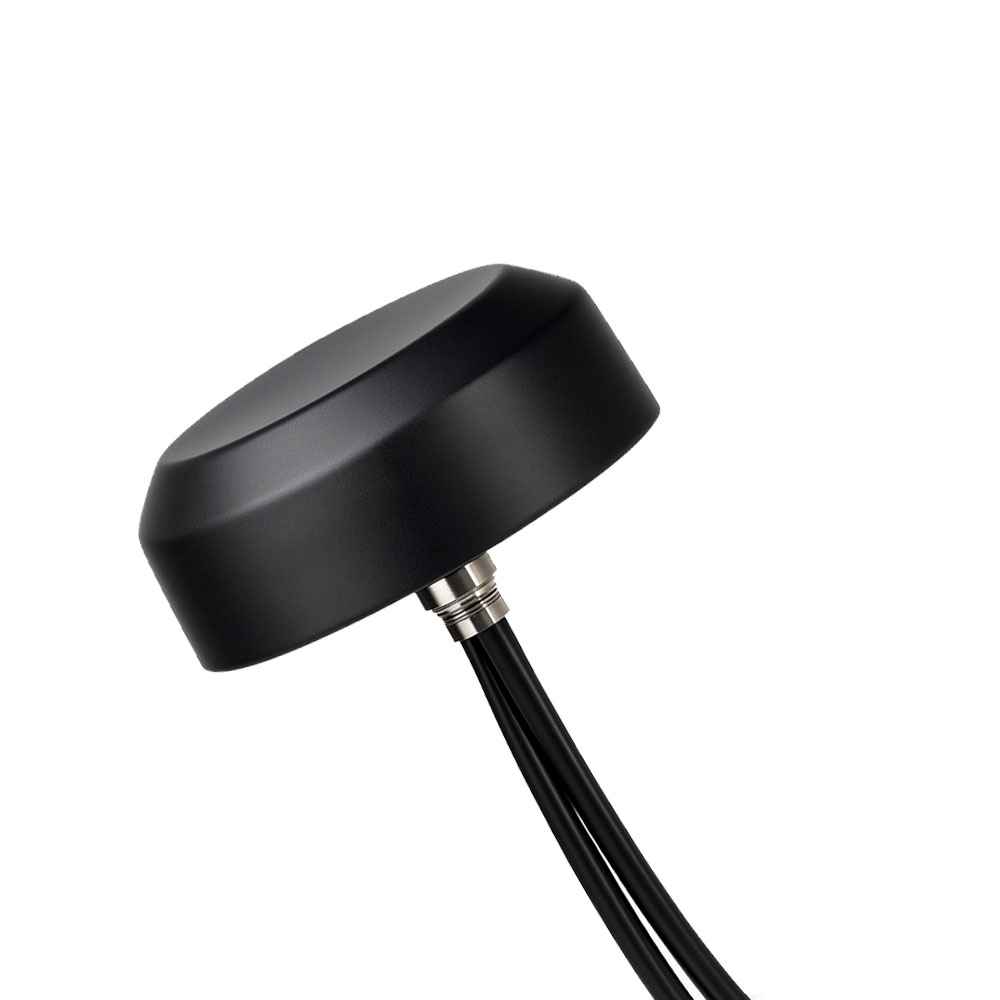

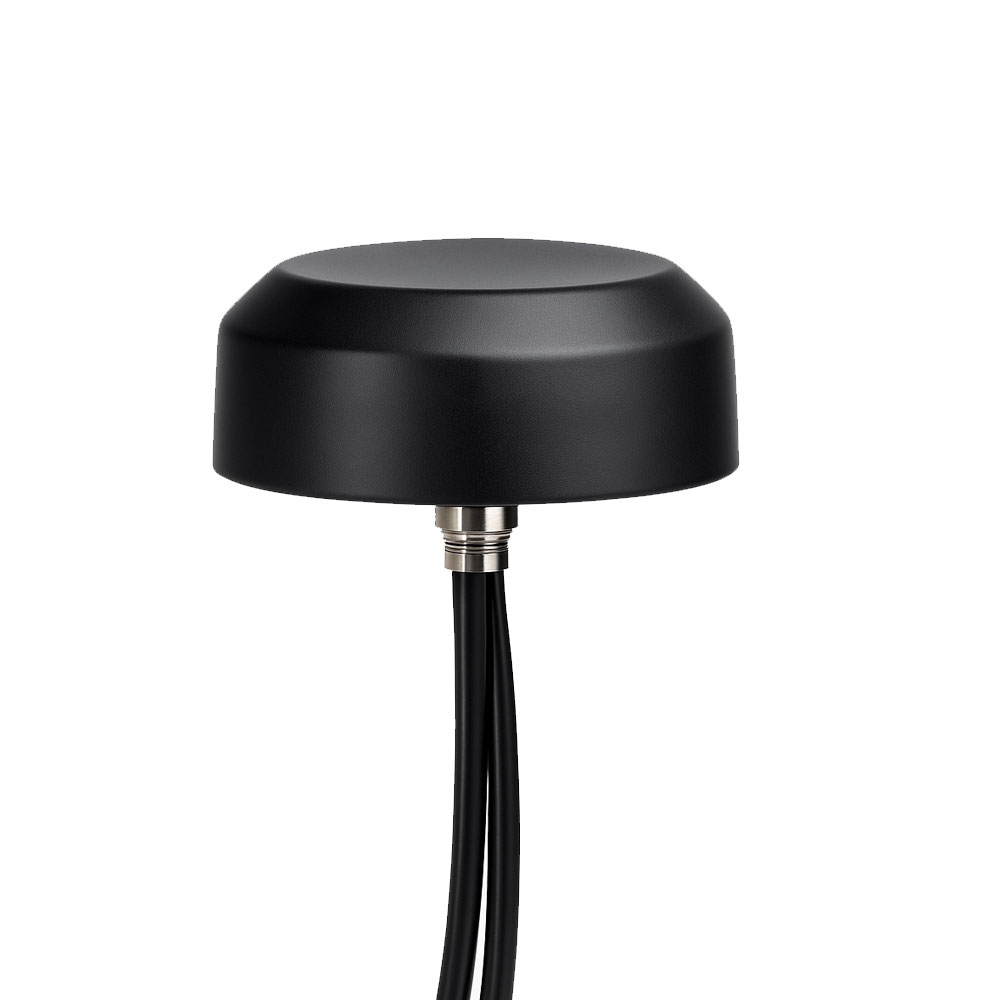

CX-AG21

GPS Antenna

  • Frequency Range: 1575.42 ± 2 MHz (GPS L1), compatible with BeiDou B1/B2 and Galileo E1
  • Gain: 30 ± 2 dB
  • VSWR: ≤ 1.8
  • Noise Figure: ≤ 1.2 dB
  • Impedance: 50 Ω
  • Polarization: Right-Hand Circular (RHCP)
  • Voltage Supply: 3.0 – 5.5 V DC
  • Current Consumption: ≤ 15 mA
  • Connector Type: SMA male / TNC / customized options
  • Cable Length: 5 m (customizable)
  • Housing Material: UV-resistant ABS, stainless steel base
  • Waterproof Rating: IP67 (optional IP68)
  • Operating Temperature: -40°C to +85°C
  • Mounting Options: Magnetic base, screw mount, or adhesive mount


Descritption CX-AG21

The CX-AG21 GPS Antenna is a high-performance, multi-GNSS antenna designed for accurate and stable positioning. With a compact, waterproof housing and enhanced signal gain, it delivers reliable performance in challenging outdoor and mobile environments, ideal for fleet management, surveying, and navigation systems.
