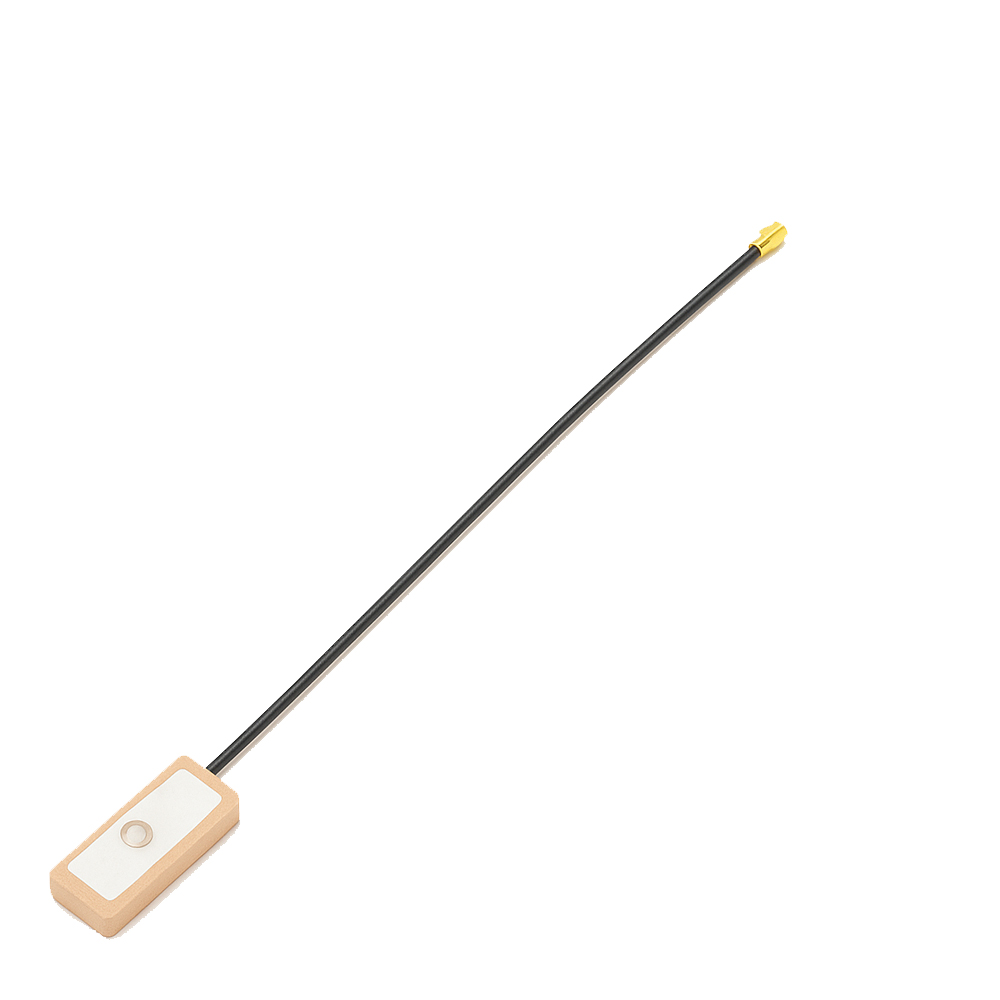

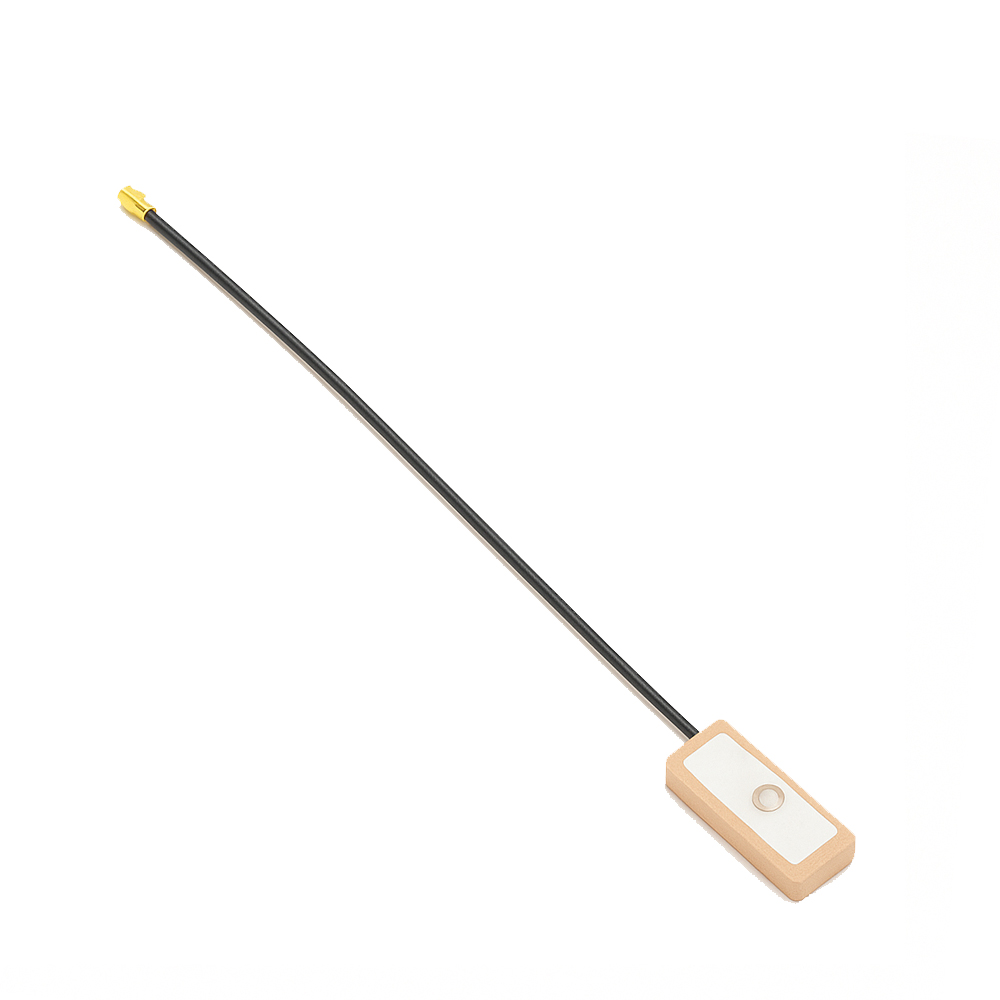

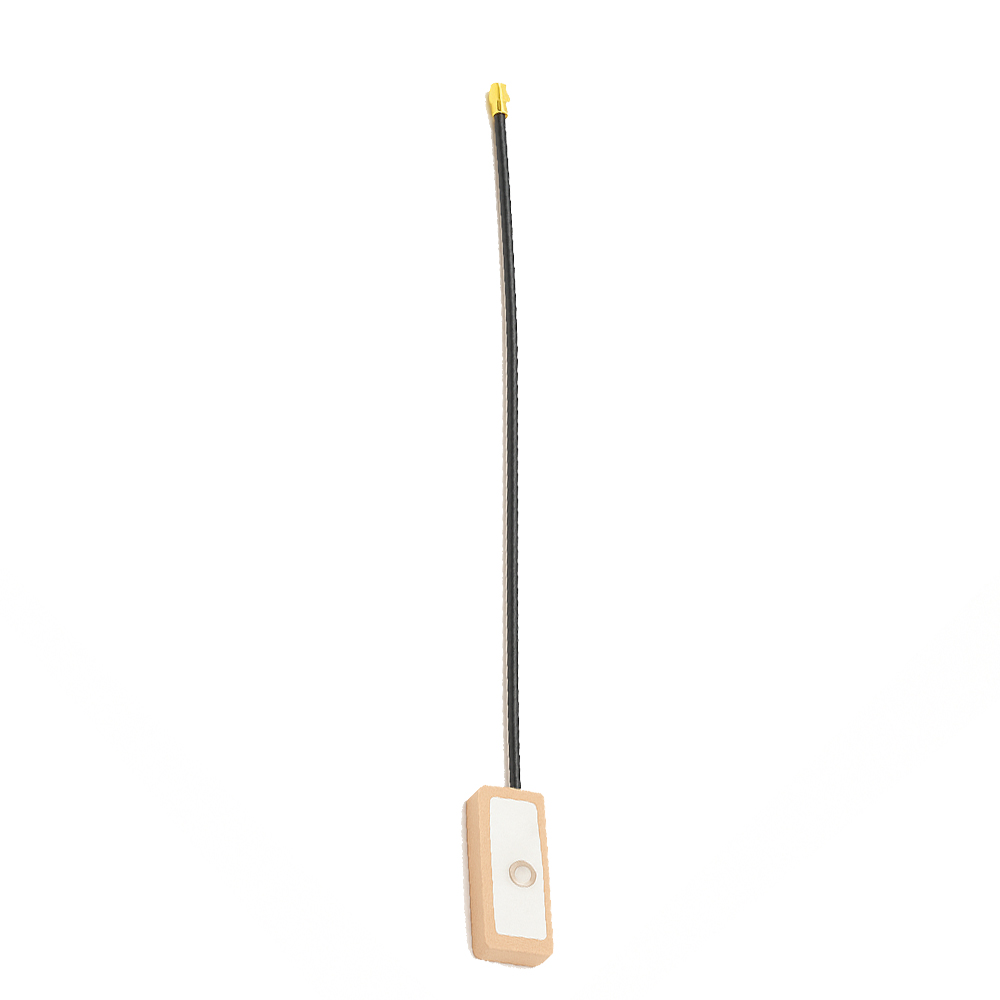

CX-AG22

GPS Antenna

Frequency Range: 1575.42 ± 3 MHz (GPS L1)
Gain: 28 dB (with LNA)
VSWR: ≤ 2.0
Polarization: Right-Hand Circular Polarization (RHCP)
Connector Type: IPEX / U.FL
Cable Length: 100 mm (customizable)
Impedance: 50 Ω
Voltage: 3–5 V DC
Current Consumption: <15 mA
Housing Material: Ceramic patch with adhesive backing
Operating Temperature: -40°C to +85°C

Enquire Now

Download Specification

Descritption CX-AG22

The GPS Antenna CX-AG22 is a high-performance, compact ceramic patch antenna designed for precise and reliable satellite signal reception. With a built-in low-noise amplifier (LNA), it ensures strong signal gain even in challenging environments. Ideal for navigation systems, IoT devices, asset tracking, and GPS-enabled modules.
