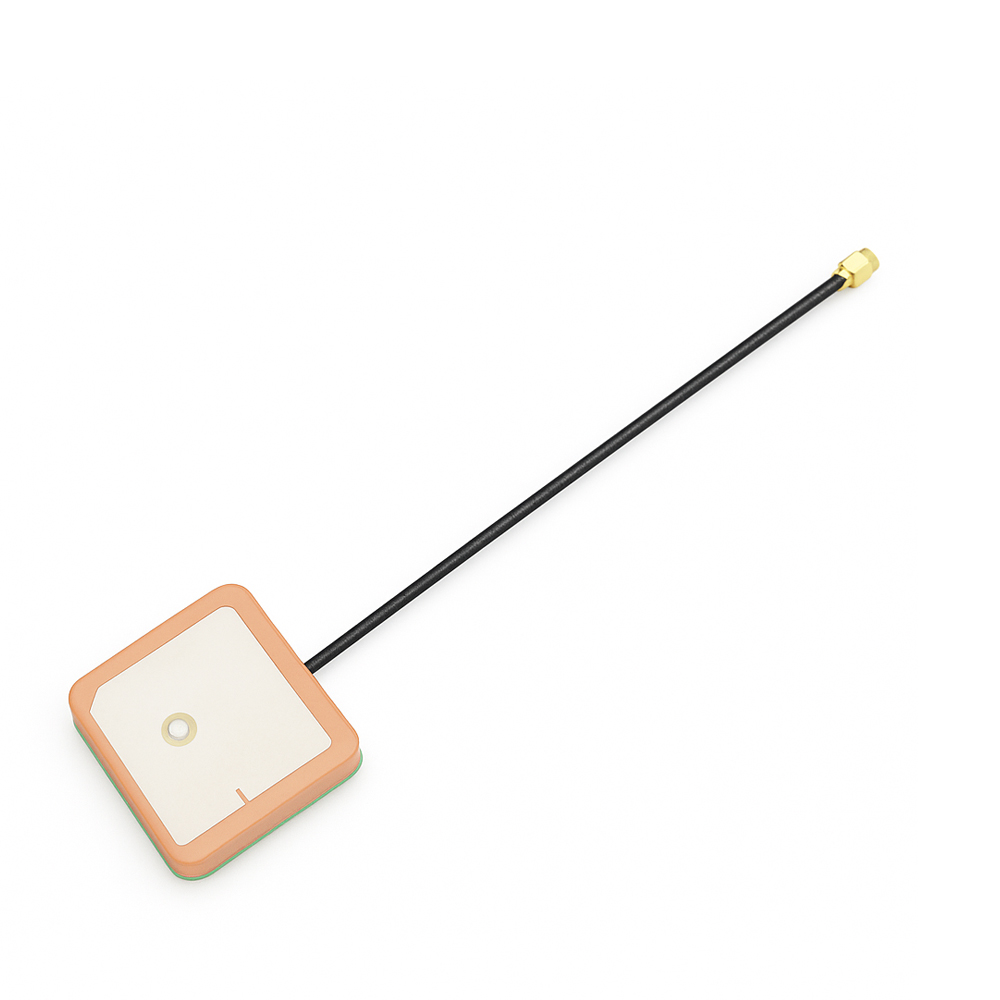

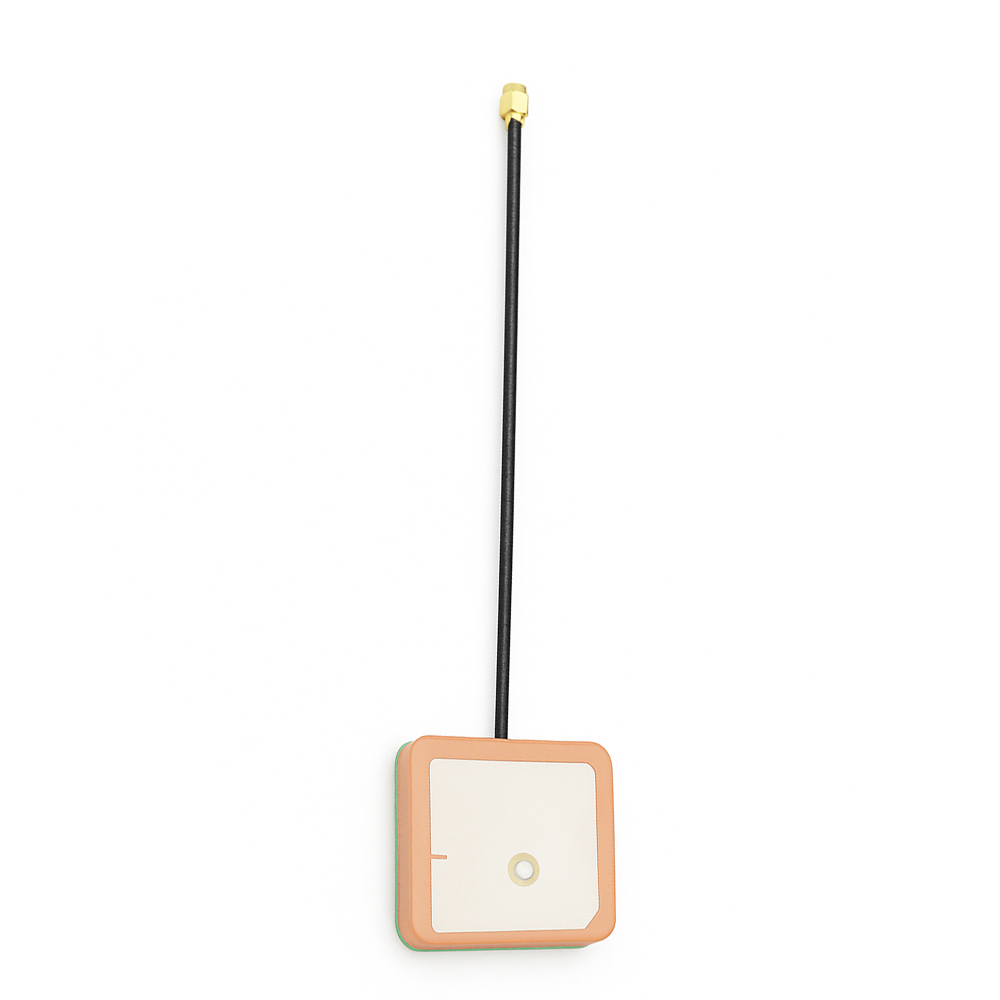

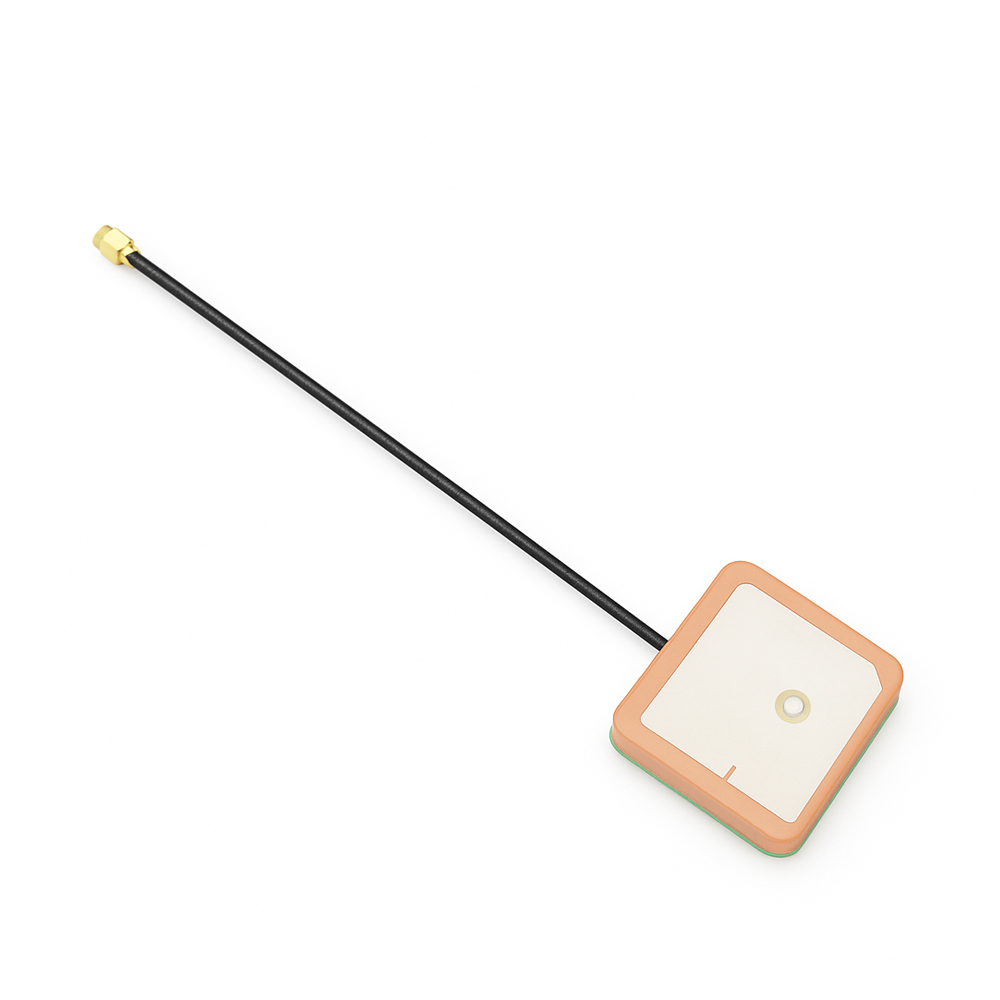

CX-AG25

GPS Antenna

Frequency Range: 1575.42 ± 1 MHz (GPS L1 Band)
Gain: 28 ± 2 dB (Active Antenna)
VSWR: ≤ 1.5
Noise Figure: ≤ 1.5 dB
Polarization: Right-Hand Circular Polarization (RHCP)
Voltage: 3.0 – 5.0 V DC
Current Consumption: ≤ 15 mA
Connector Type: IPEX / SMA (customizable)
Cable Length: 10–30 cm (customizable)
Dimension: 25 × 25 × 8 mm
Operating Temperature: -40°C to +85°C
Mounting Type: Adhesive or screw mount
Housing Material: Ceramic patch with PCB and amplifier module

Enquire Now

Download Specification

Descritption CX-AG25

The CX-AG25 GPS Antenna is a high-precision ceramic patch antenna designed for reliable satellite signal reception in compact GPS applications. It provides excellent performance in positioning and navigation systems, ensuring stable signal acquisition and low noise operation even in challenging environments. Ideal for embedded systems, tracking devices, drones, and IoT applications.
