CX-AG27

GPS Antenna

  • Frequency Range: 1575.42 MHz (GPS L1)
  • Polarization: Right-Hand Circular Polarization (RHCP)
  • Gain: 28 ± 2 dB (Active)
  • Noise Figure: 1.5 dB
  • Voltage Standing Wave Ratio (VSWR): 1.5
  • Output Impedance: 50 Ω
  • Operating Voltage: 2.7V – 5.5V DC
  • Current Consumption: 15 mA
  • Connector Type: IPEX / MMCX / SMA (customizable)
  • Cable Length: 100 mm (customizable)
  • Dimensions: 25 × 25 × 8 mm
  • Operating Temperature: -40°C to +85°C
  • Housing Material: Ceramic patch with RF shield
  • Mounting Type: Adhesive or embedded mount



Descritption CX-AG27

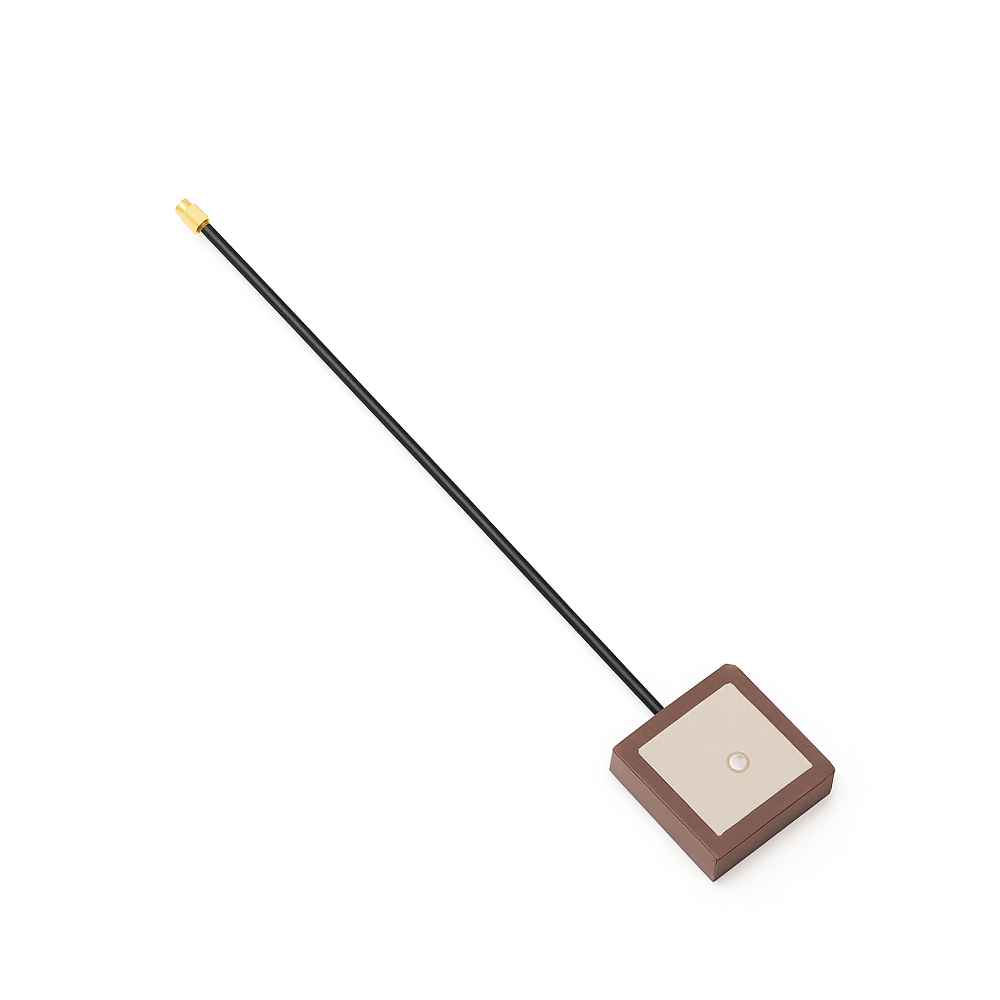

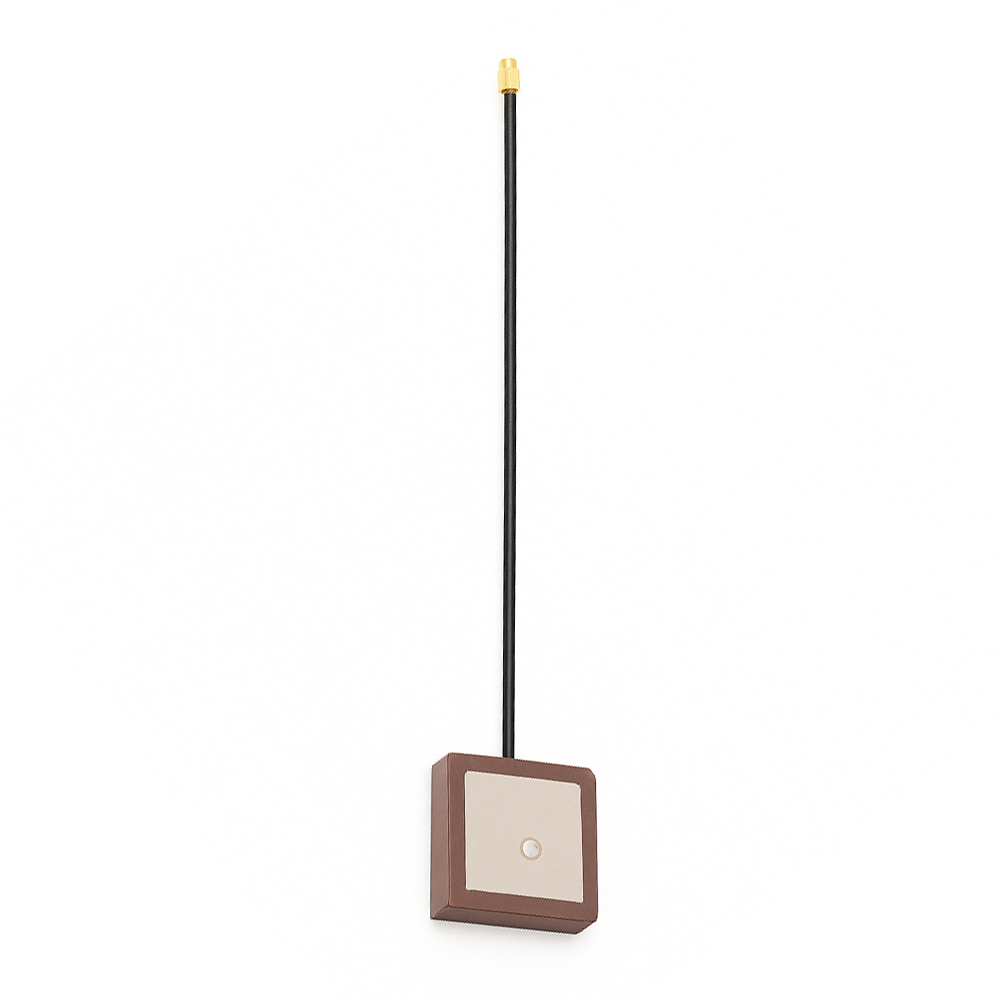

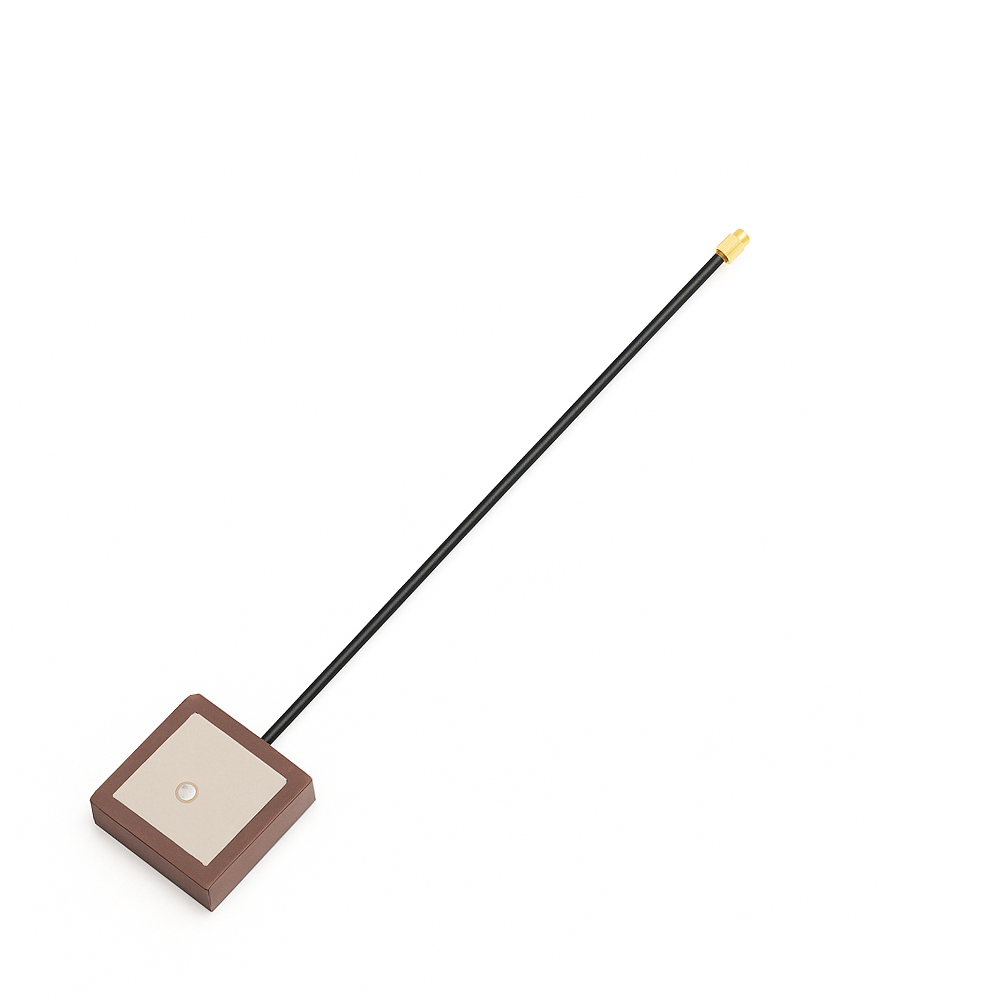

he CX-AG27 GPS Antenna is a compact, high-performance ceramic patch antenna designed for precise satellite positioning applications. Its lightweight design and strong signal reception make it ideal for portable, automotive, and IoT devices requiring reliable GPS data in various environments.
