CX-BS10

Mount & Suck Antenna

Frequency Range: 698 MHz – 2700 MHz (supports GSM, 3G, 4G LTE, Wi-Fi, NB-IoT, LoRa)
Gain: 3–5 dBi for enhanced signal strength and range
Polarization: Vertical, omnidirectional coverage
VSWR: ≤ 2.0 for efficient impedance matching
Impedance: 50 Ω
Connector Type: SMA Male / RP-SMA / Customizable options available
Mounting Type: Strong magnetic or adhesive stuck base for tool-free installation
Cable: 1.5 m low-loss coaxial cable (customizable length)
Housing Material: Rugged, UV-protected ABS for outdoor durability
Operating Temperature: -40°C to +85°C (suitable for harsh environments)
Applications: IoT gateways, smart meters, routers, fleet tracking systems, telemetry, and M2M communication

Enquire Now

Download Specification

Descritption CX-BS10

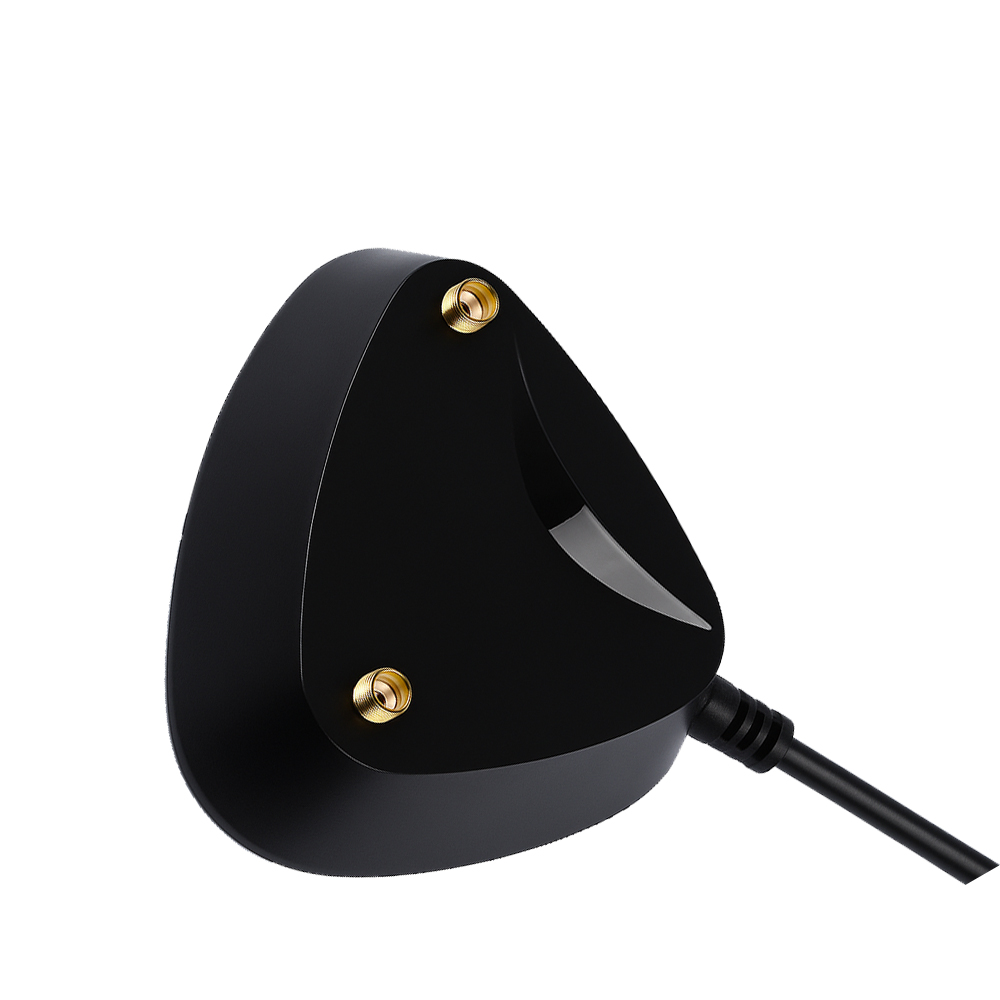

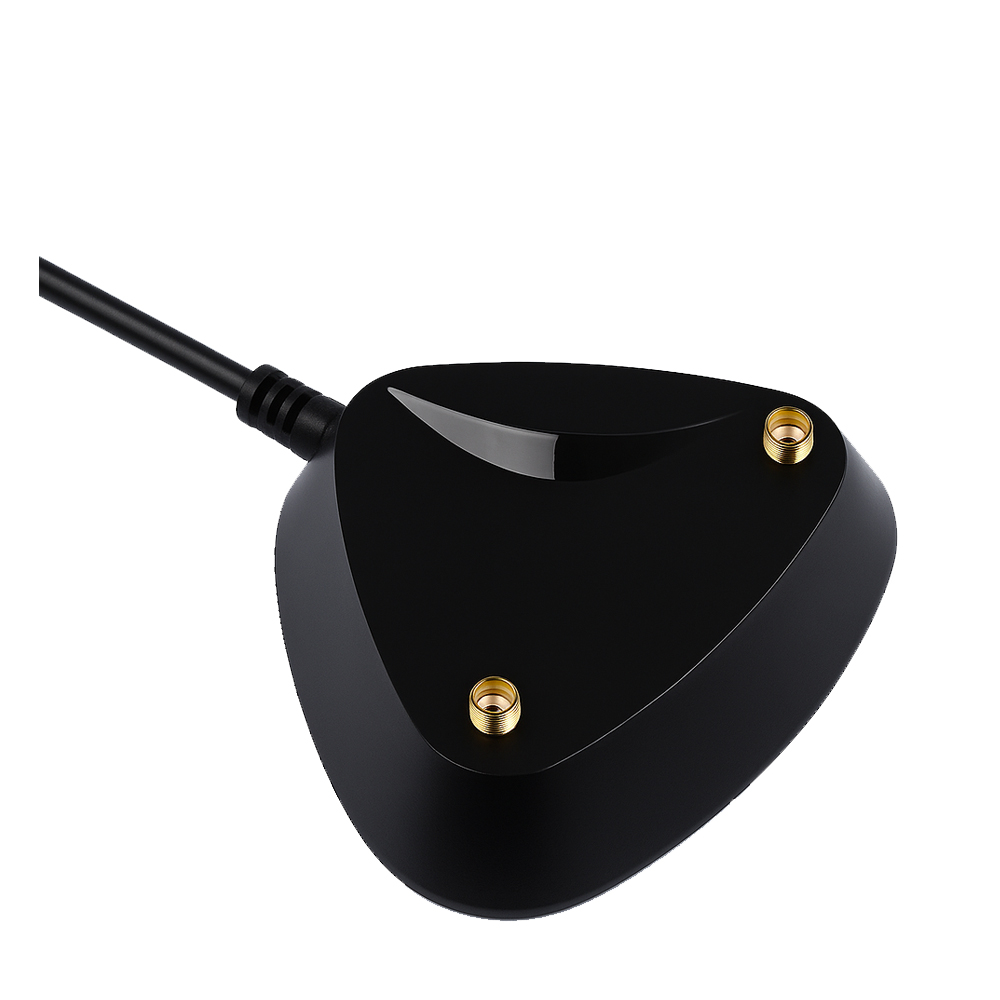

The CX-BS10 is a compact, reliable mount stuck antenna designed to deliver strong and consistent wireless connectivity across multiple frequency bands. Its magnetic or adhesive base allows easy installation on flat metal or plastic surfaces, making it perfect for mobile, indoor, or outdoor applications.
