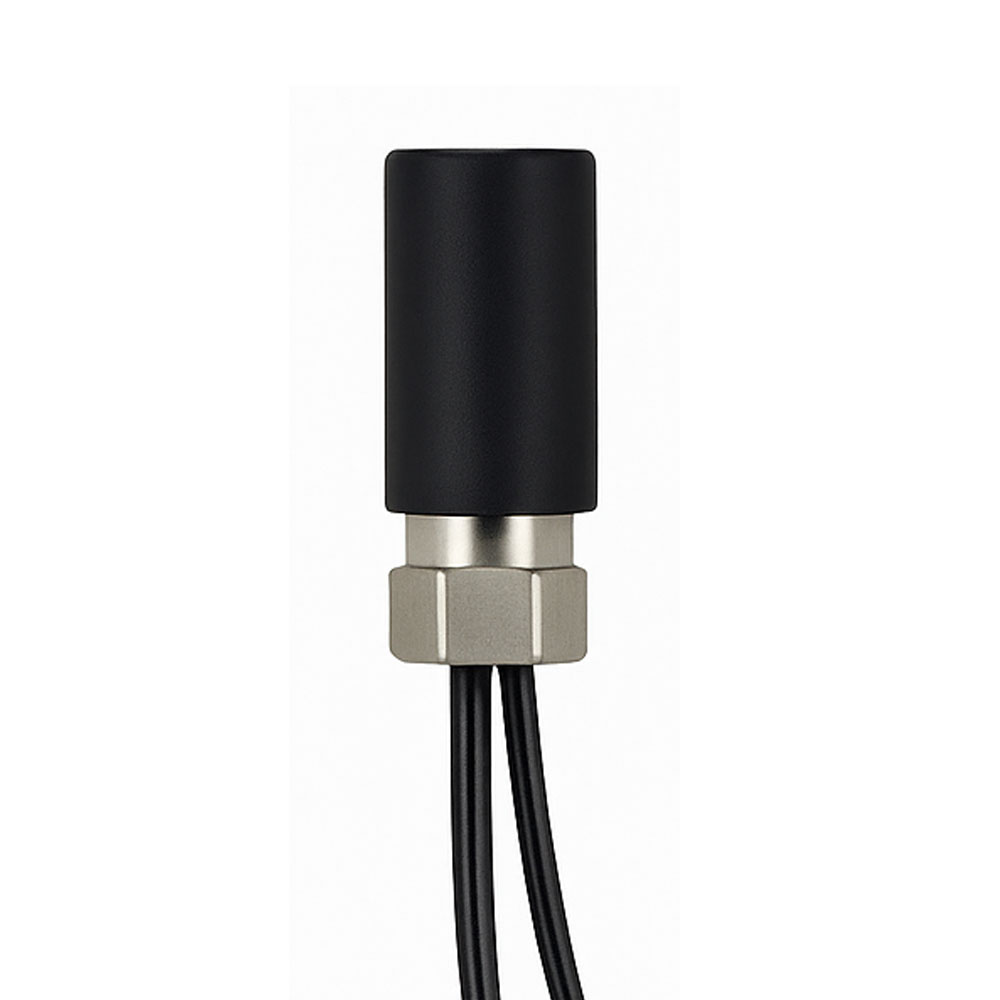

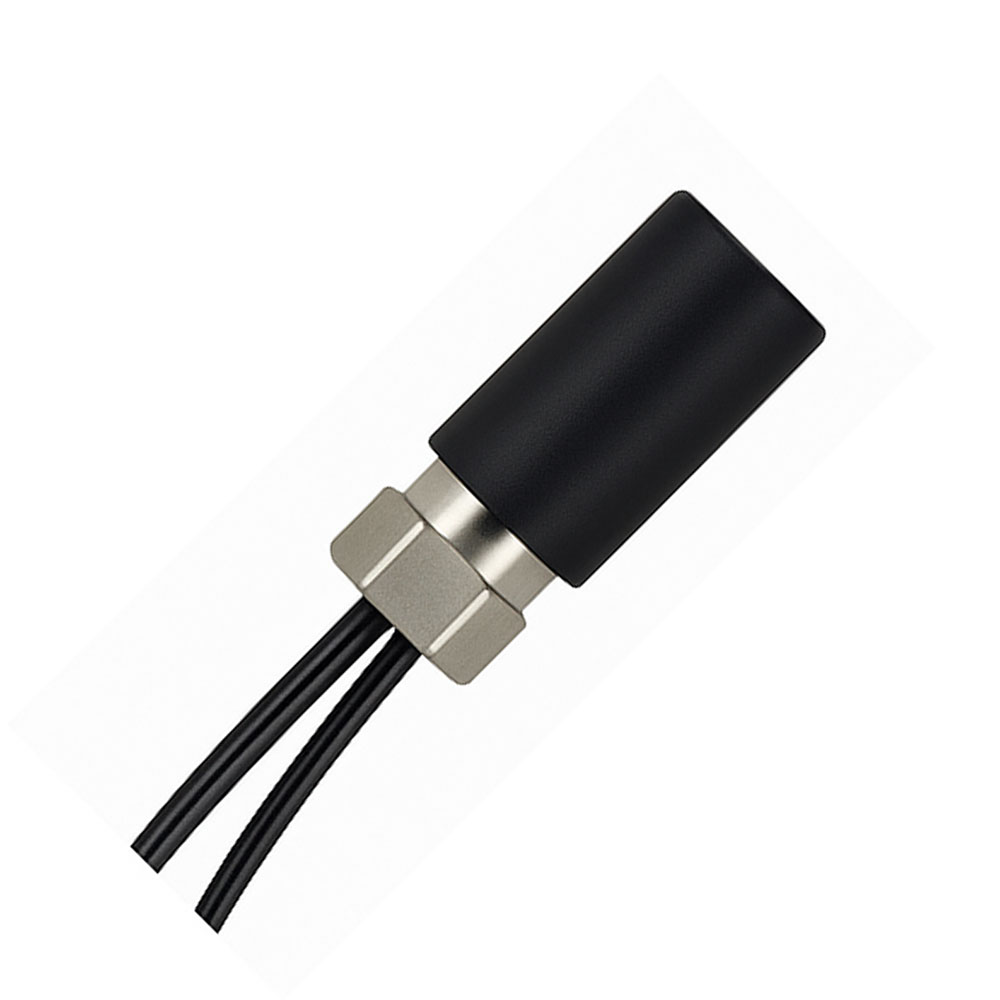

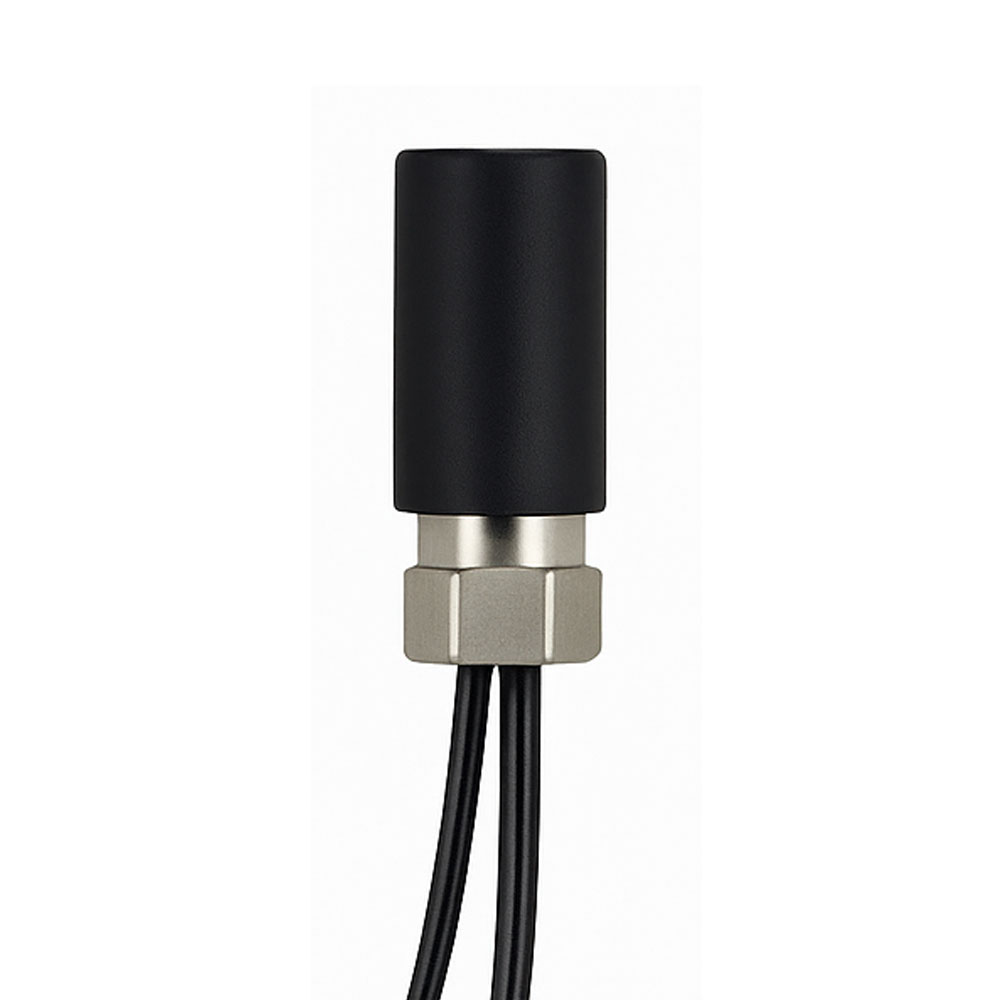

CX-24B

GPS Antenna

Frequency Range: 1575.42 ± 2 MHz (GPS L1), compatible with BeiDou B1 and Galileo E1
Gain: 28 ± 2 dB
VSWR: ≤ 2.0
Noise Figure: ≤ 1.5 dB
Impedance: 50 Ω
Polarization: Right-Hand Circular (RHCP)
Voltage Supply: 2.7 – 5.5 V DC
Current Consumption: ≤ 20 mA
Connector Type: SMA male / MCX / customized options
Cable Length: 3 m (customizable)
Housing Material: ABS, UV-resistant, waterproof (IP67)
Operating Temperature: -40°C to +85°C
Mounting Options: Magnetic or screw mount

Enquire Now

Download Specification

Descritption CX-24B

The CX-24B GPS Antenna is a compact, high-sensitivity GNSS antenna designed for precise and stable positioning. With a rugged IP67-rated housing, low noise figure, and strong gain performance, it ensures consistent signal reception in demanding outdoor and mobile environments. Ideal for fleet tracking, marine navigation, and surveying applications.
