CX-AG09

GPS Antenna

  • Frequency Range: 1575.42 ± 1.023 MHz (GPS L1)
  • Gain: 28 ± 2 dB (Active)
  • VSWR: ≤ 1.5
  • Noise Figure: ≤ 1.5 dB
  • Impedance: 50 Ω
  • Voltage: 3–5V DC
  • Connector Type: SMA Male (customizable)
  • Cable Length: 3 meters (optional)
  • Mount Type: Magnetic base
  • Operating Temperature: -40°C to +85°C
  • Housing: Waterproof ABS, compact design


Descritption CX-AG09

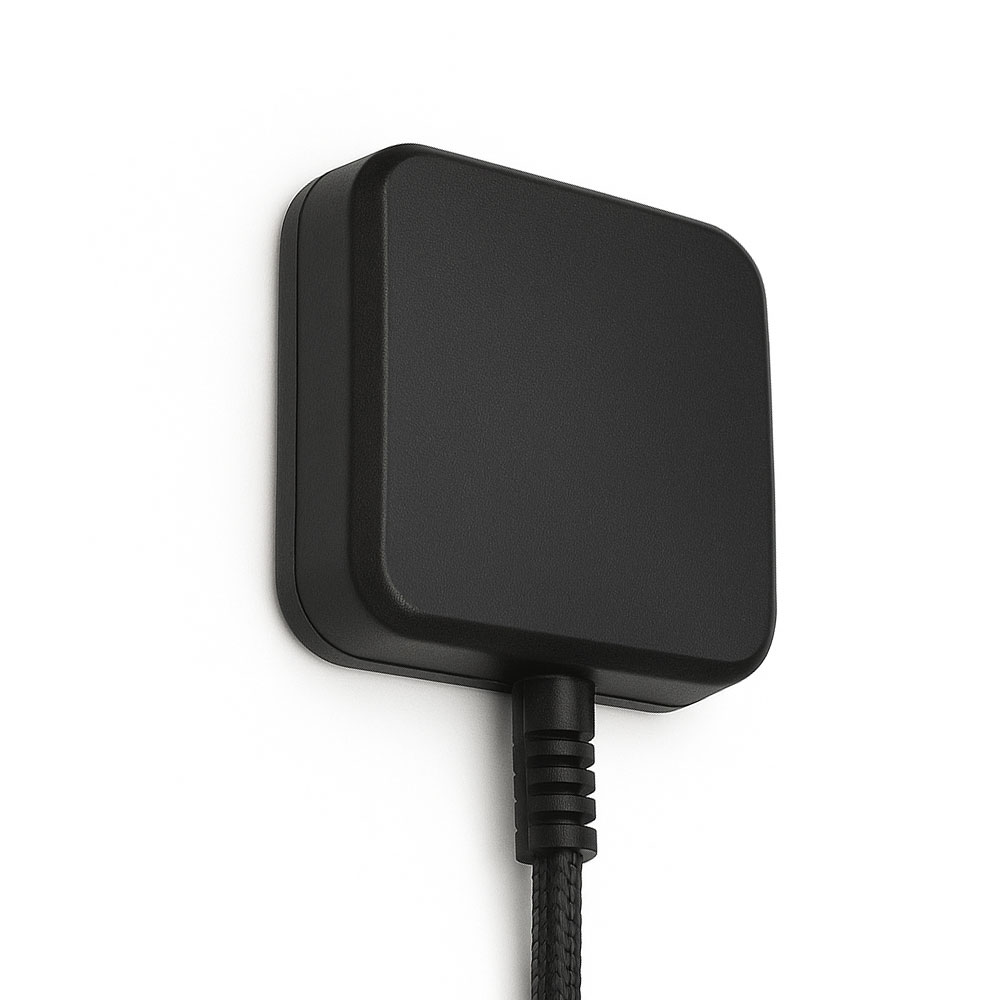

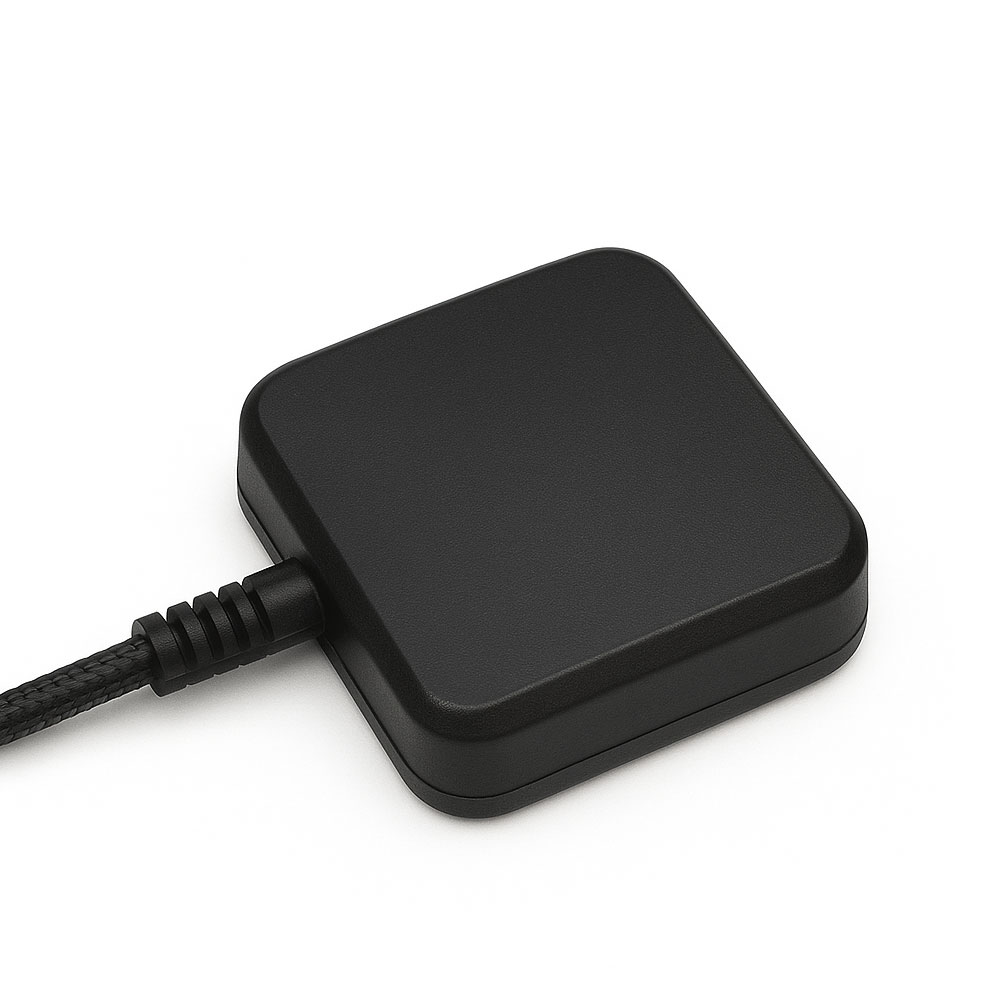

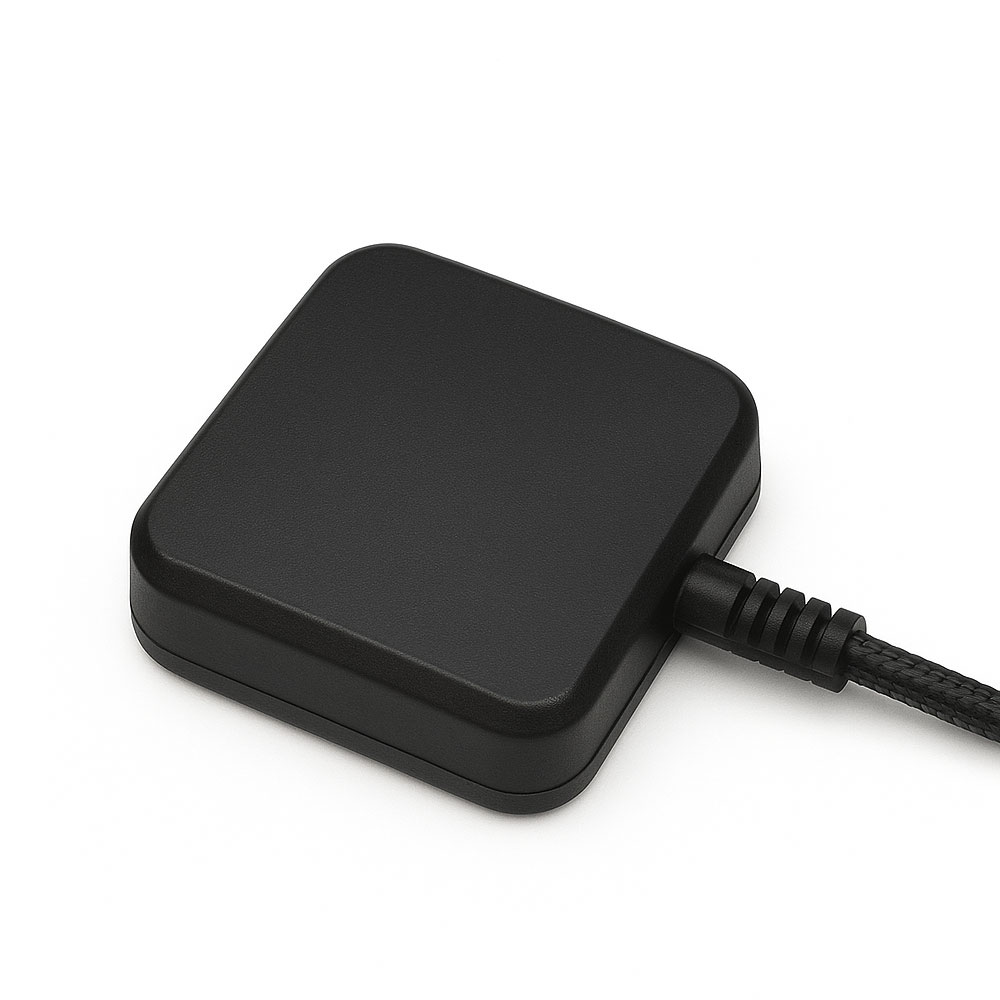

The GPS Antenna CX-AG09 is a compact, high-sensitivity external antenna designed for reliable satellite signal reception. It delivers exceptional performance for navigation, tracking, and timing applications in vehicles, IoT systems, and portable devices. Its weatherproof housing ensures stable operation in demanding environments.
