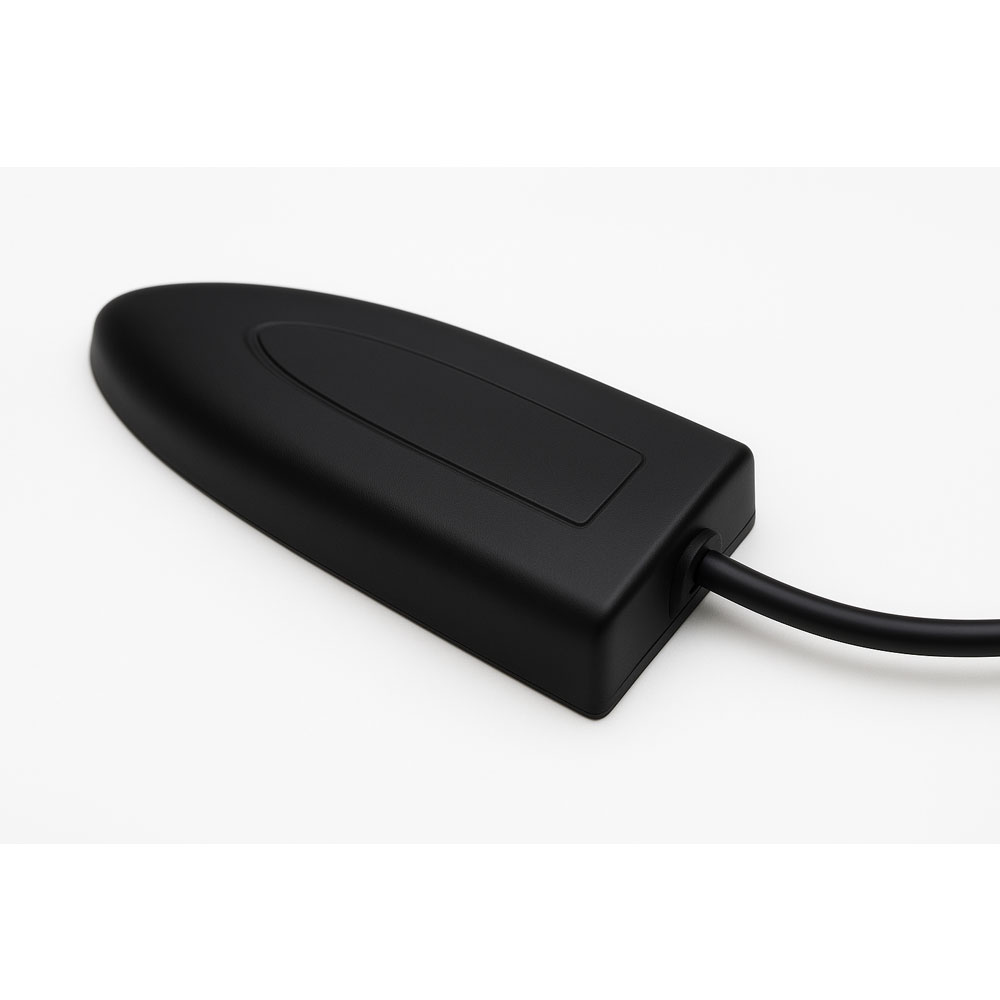

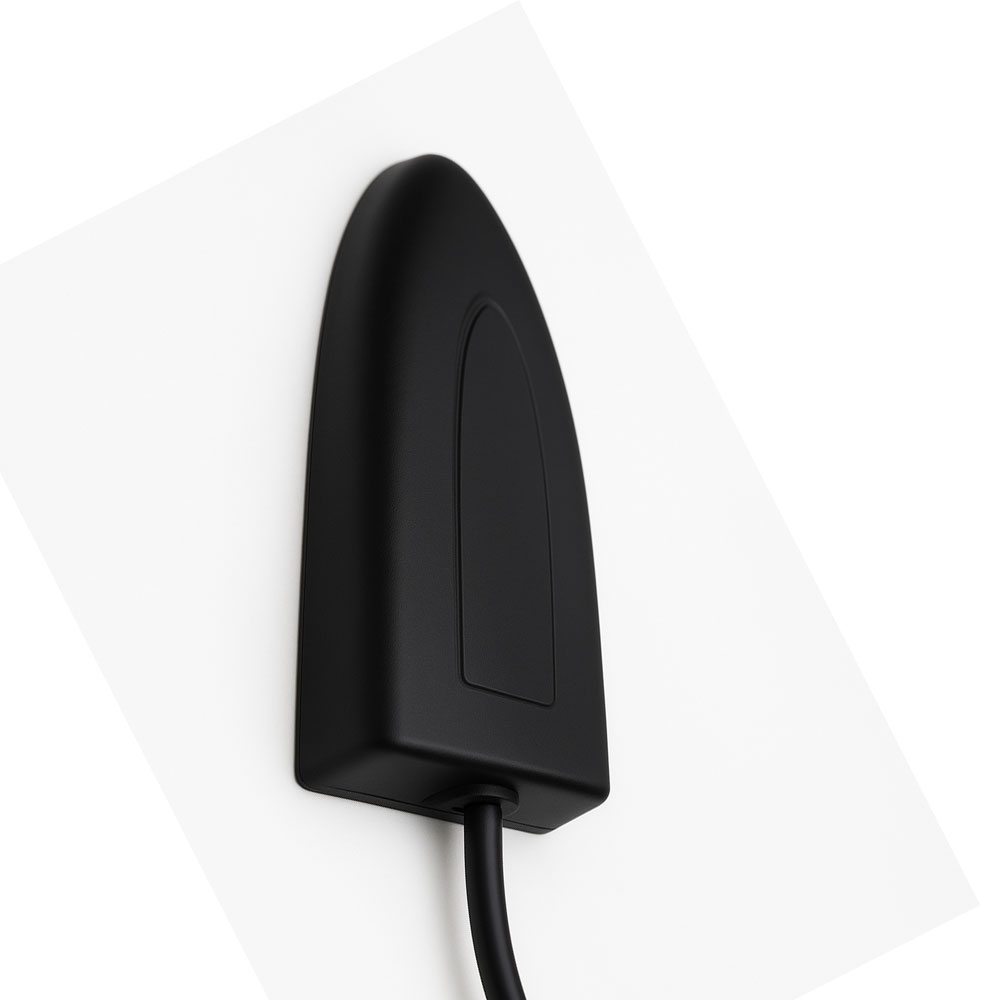

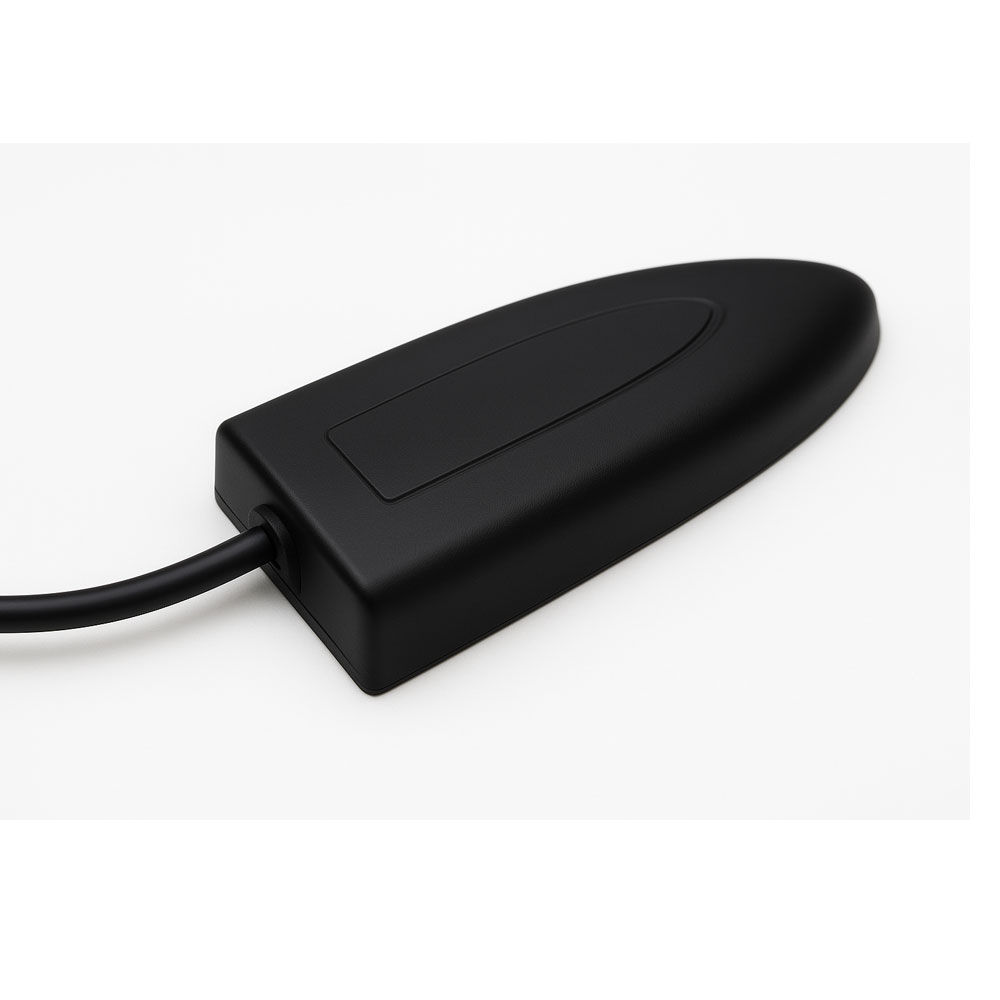

CX-AG14

GPS Antenna

  • Frequency Range: 1575.42 MHz (GPS L1 Band)
  • Gain: 28 dB ±2 dB (Active)
  • Voltage: 3–5V DC
  • Impedance: 50 Ω
  • VSWR: ≤ 2.0
  • Noise Figure: ≤ 1.5 dB
  • Polarization: Right-Hand Circular (RHCP)
  • Connector Type: SMA / MCX / MMCX / Custom options
  • Cable Length: 3 meters (customizable)
  • Housing Material: ABS, UV-resistant with IP67 waterproof rating
  • Mounting Type: Magnetic or Adhesive base
  • Operating Temperature: -40°C to +85°C


Descritption CX-AG14

The GPS Antenna CX-AG14 is a high-precision external GPS antenna designed for stable and accurate satellite signal reception in diverse environments. With its aerodynamic and waterproof design, the CX-AG14 ensures reliable performance even in harsh outdoor conditions, making it ideal for automotive, fleet management, and IoT tracking applications. Its active gain circuitry and low noise amplifier enhance signal sensitivity, ensuring superior positioning accuracy.
