CX-AG15

GPS Antenna

  • Frequency Range: 1575.42 MHz (L1 Band)
  • Gain: 28 dB ±2 dB (Active)
  • Voltage: 3–5V DC
  • Impedance: 50 Ω
  • VSWR: ≤ 2.0
  • Noise Figure: ≤ 1.5 dB
  • Polarization: Right-Hand Circular (RHCP)
  • Connector Type: SMA / FAKRA / Customized options
  • Cable Length: 3 meters (customizable)
  • Housing Material: ABS with UV and weather-resistant coating
  • Mounting Type: Roof-mount (shark-fin style)
  • Waterproof Rating: IP67
  • Operating Temperature: -40°C to +85°C


Descritption CX-AG15

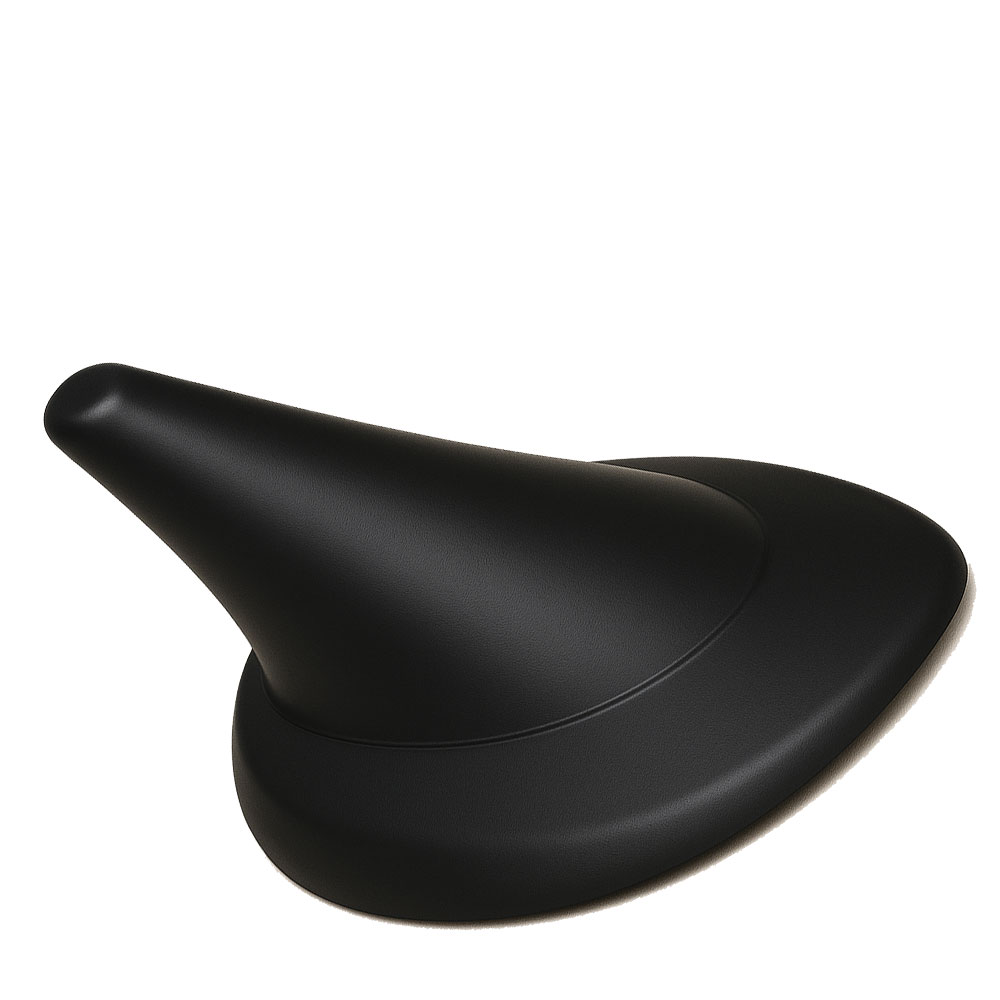

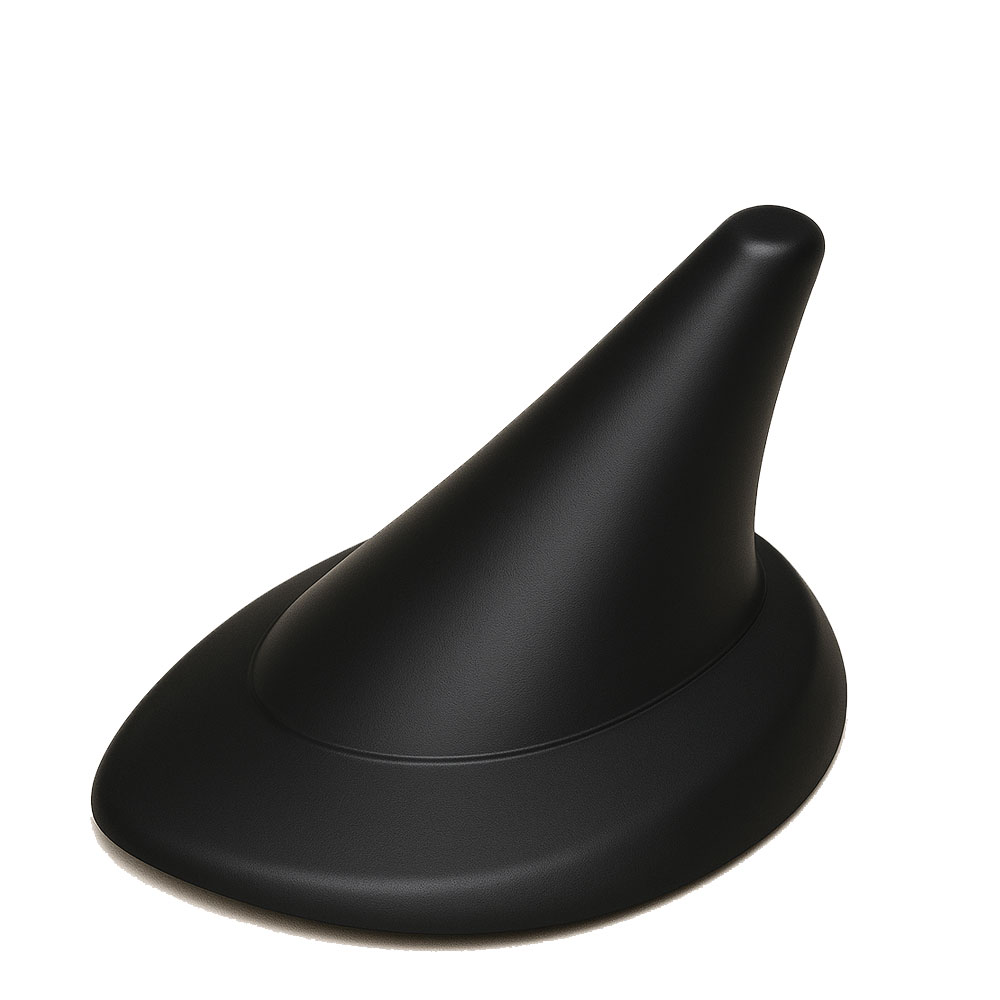

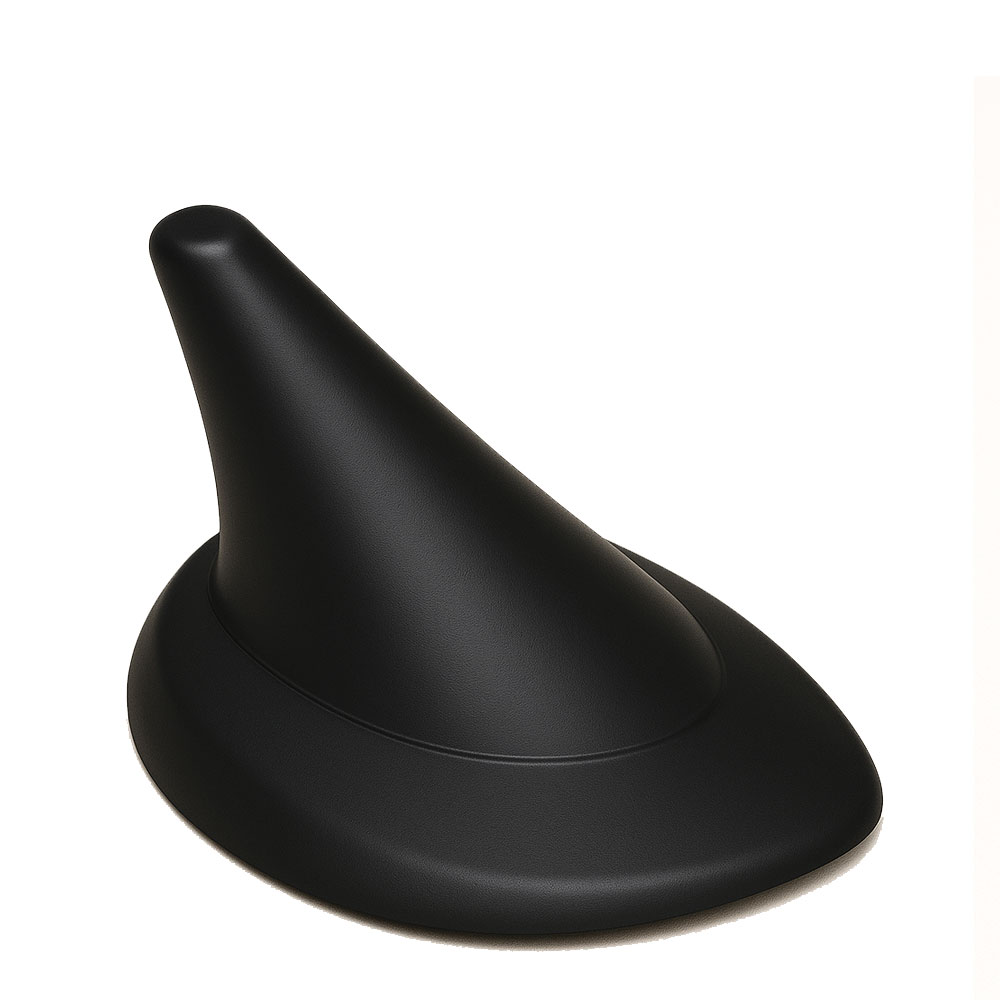

The GPS Antenna CX-AG15 is a high-precision shark-fin style antenna engineered for modern automotive and industrial GPS applications. Designed with an aerodynamic profile, it combines elegant aesthetics with advanced performance, ensuring stable signal reception even in dynamic environments. The antenna offers superior gain, low noise, and robust waterproof protection, making it ideal for vehicle tracking, navigation, and telematics systems.
