CX-AG16

GPS Antenna

Frequency Range: 1575.42 ± 1 MHz (GPS L1)
Gain: 28 dB typical
VSWR: ≤ 2.0
Noise Figure: ≤ 1.5 dB
Impedance: 50 Ω
Polarization: Right-Hand Circular (RHCP)
Power Supply: 2.7 – 5.0 V DC
Connector Type: SMA / Customized options available
Cable Length: 3 m (customizable)
Housing Material: ABS, weatherproof and UV-resistant
Operating Temperature: -40°C to +85°C
Mounting: Magnetic or adhesive base

Enquire Now

Download Specification

Descritption CX-AG16

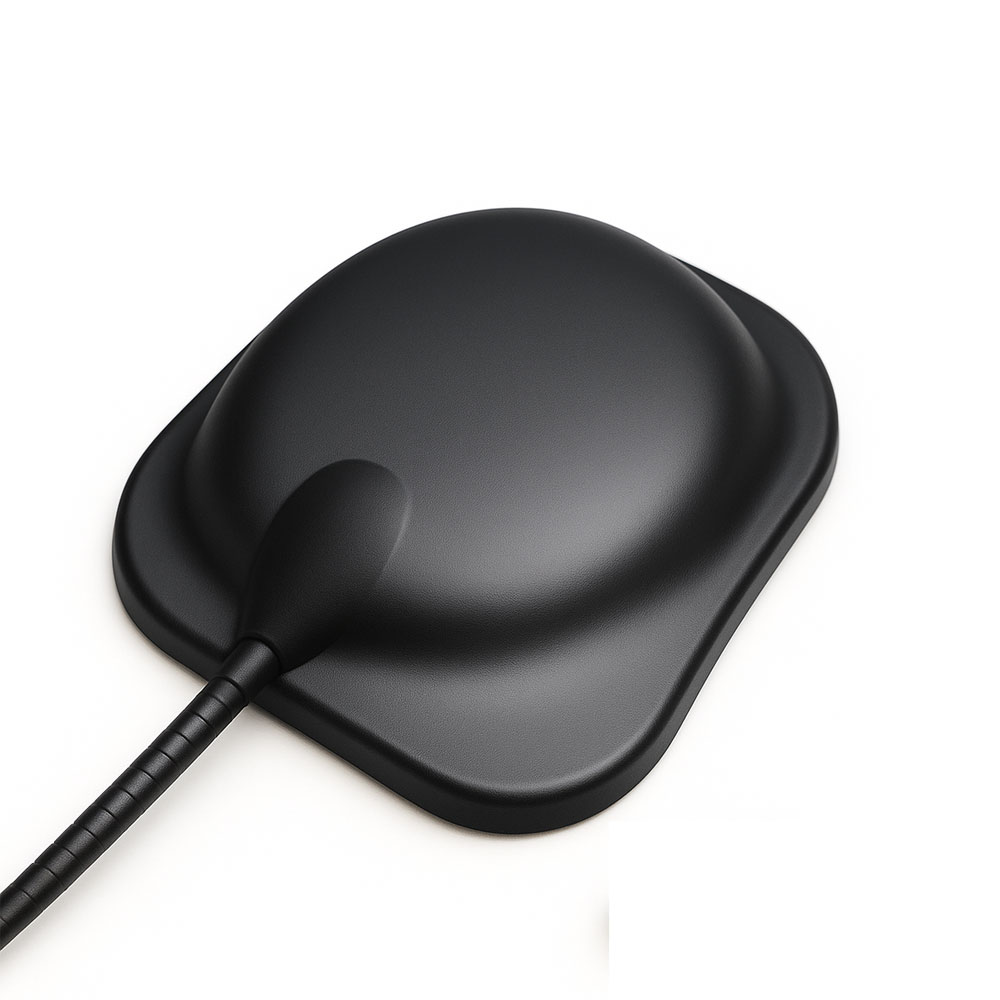

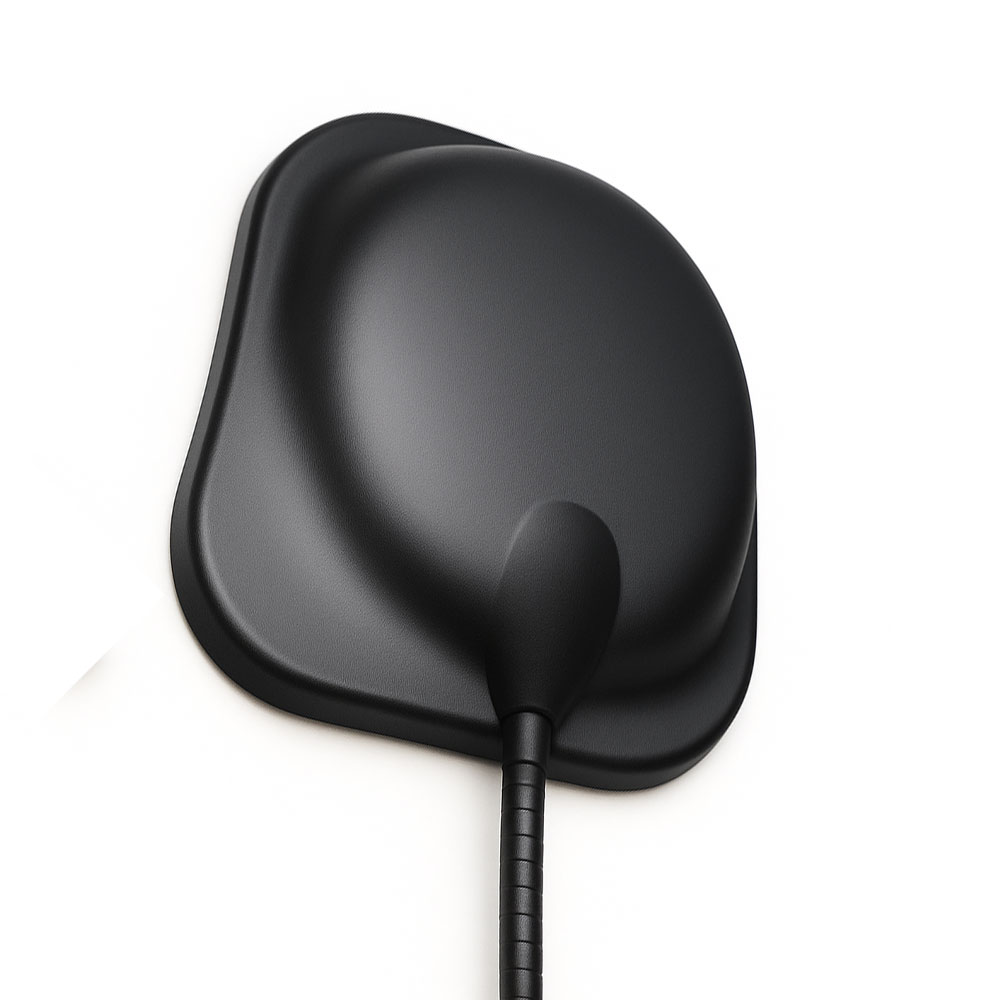

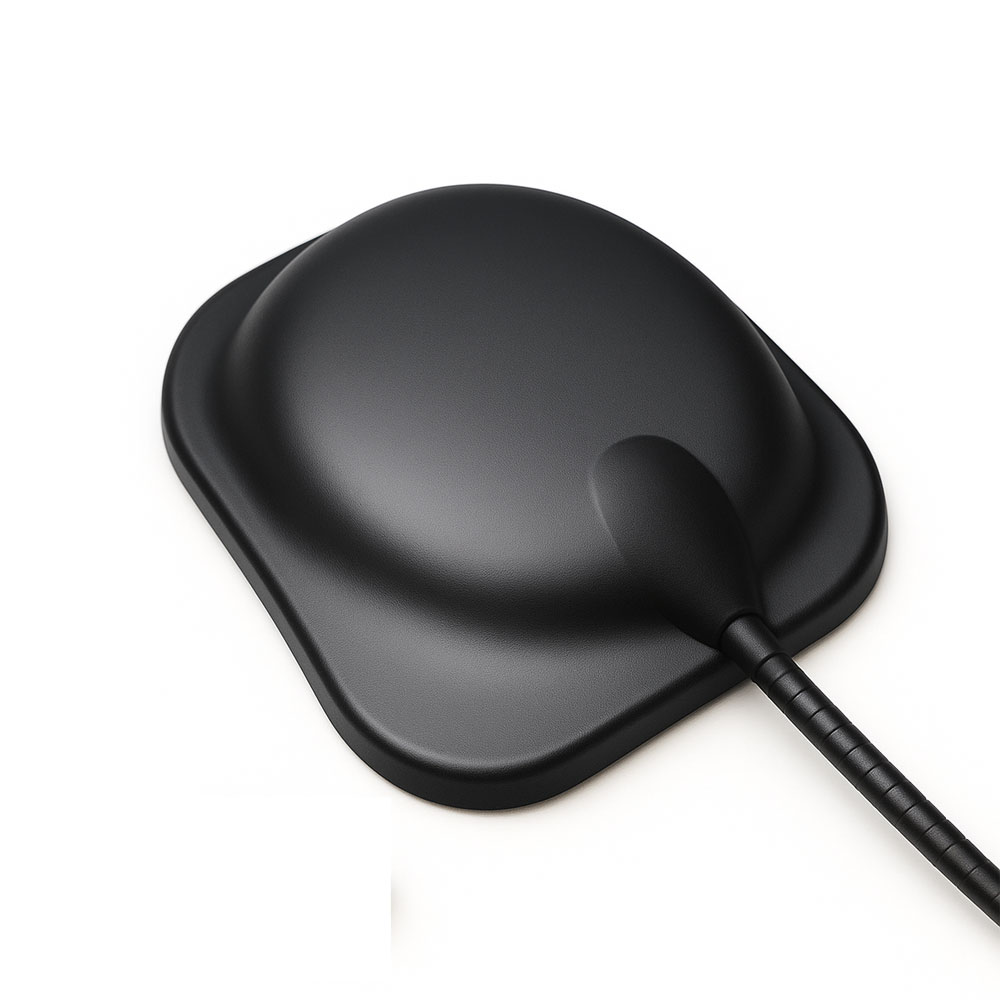

The GPS Antenna CX-AG16 is a compact and high-sensitivity active antenna designed for reliable GNSS signal reception. With its durable, low-profile design, it is ideal for vehicle tracking, fleet management, and navigation applications requiring consistent GPS performance in challenging environments.
