CX-AG21

GPS Antenna

  • Frequency Range: 1575.42 ± 1 MHz (GPS L1)
  • Gain: 2.5 dBi (Passive)
  • Impedance: 50 Ω
  • VSWR: ≤ 2.0
  • Polarization: RHCP (Right-Hand Circular Polarization)
  • Connector Type: IPEX / U.FL
  • Cable Type: RG1.13 / RG178 / 1.13 mm
  • Cable Length: Customizable (default 100 mm)
  • Operating Voltage: Passive (no external power)
  • Operating Temperature: -40°C to +85°C
  • Material: Flexible polyimide substrate
  • Mounting Type: Adhesive or internal mounting


Descritption CX-AG21

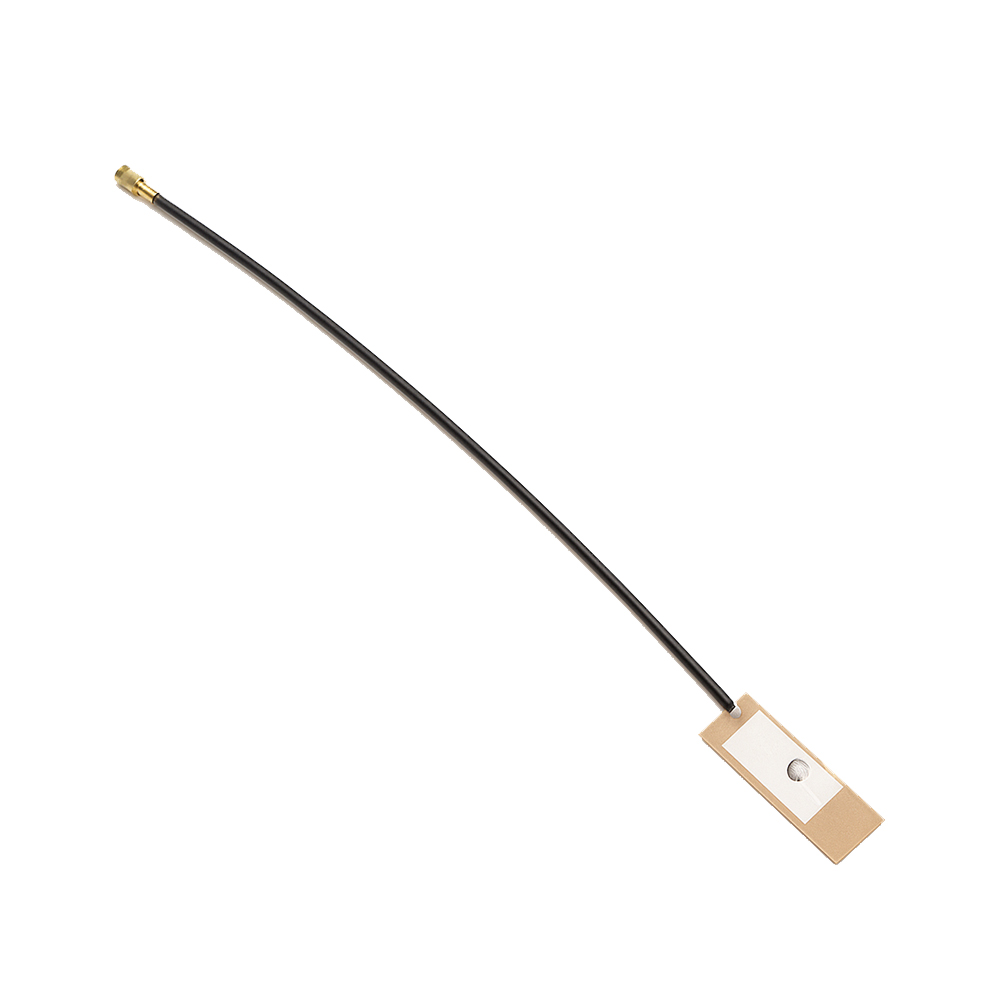

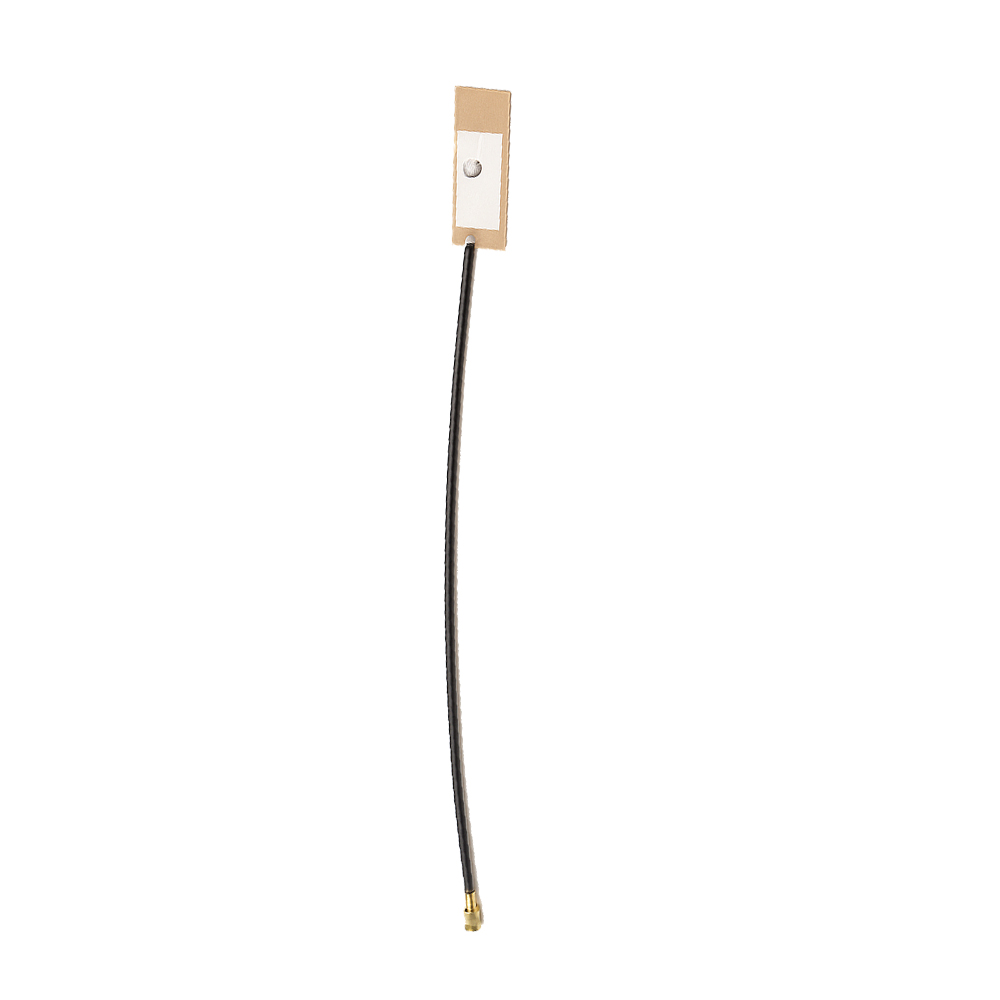

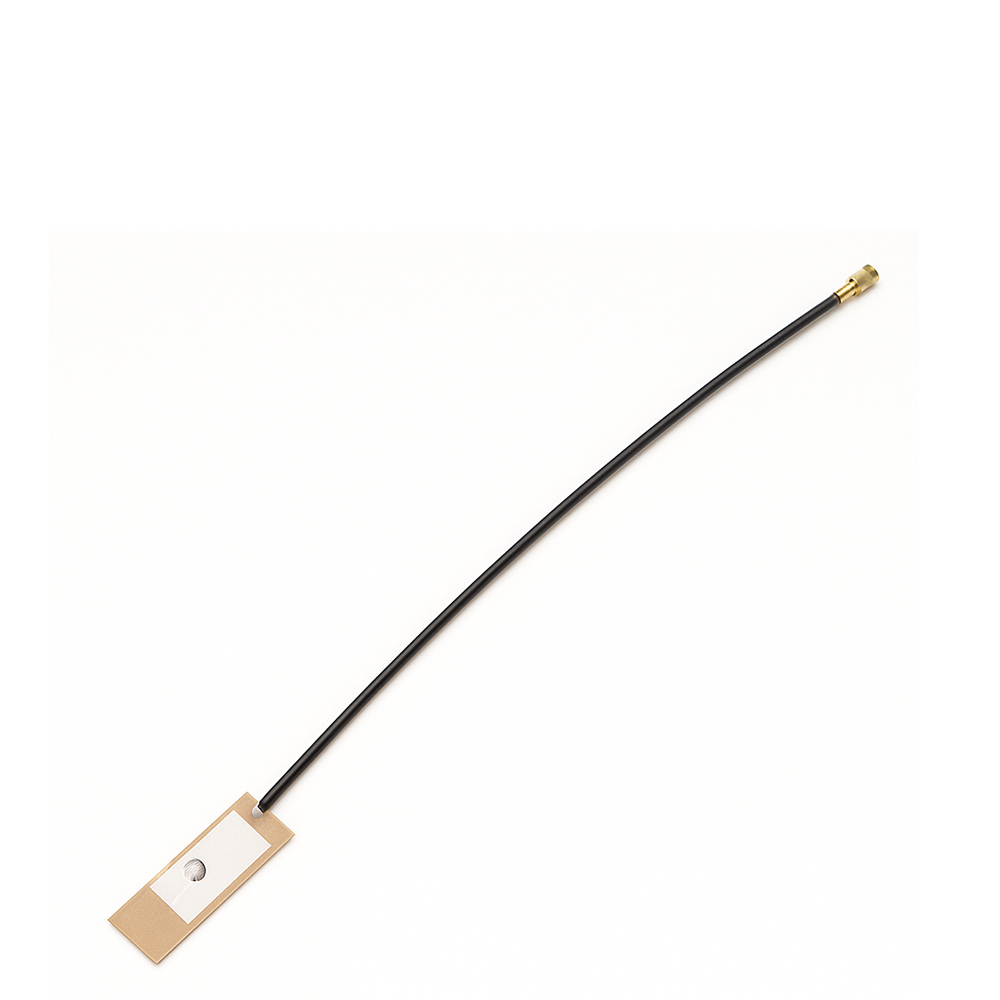

The GPS Antenna CX-AG21 is a high-performance flexible antenna designed for compact GPS-enabled devices. With its ultra-thin and lightweight design, it offers reliable signal reception while maintaining a discreet profile, ideal for IoT modules, asset trackers, and portable navigation systems.
