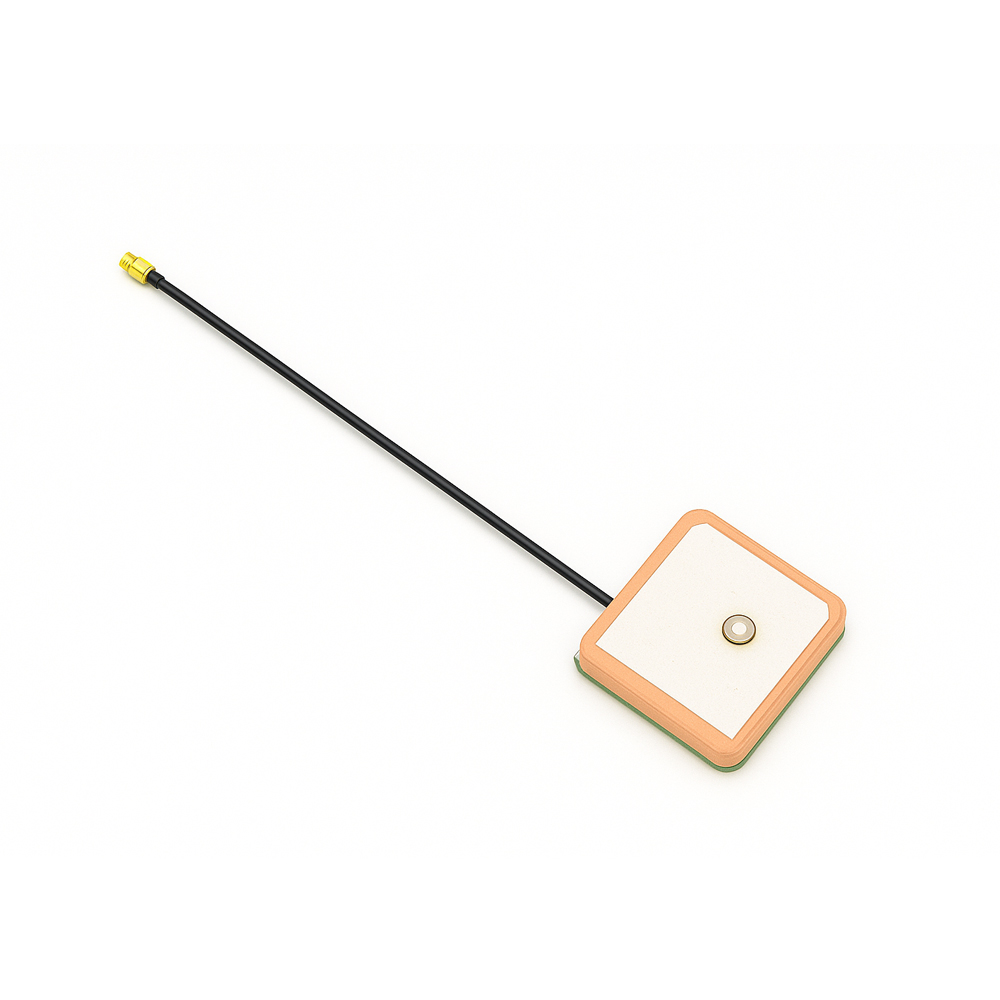

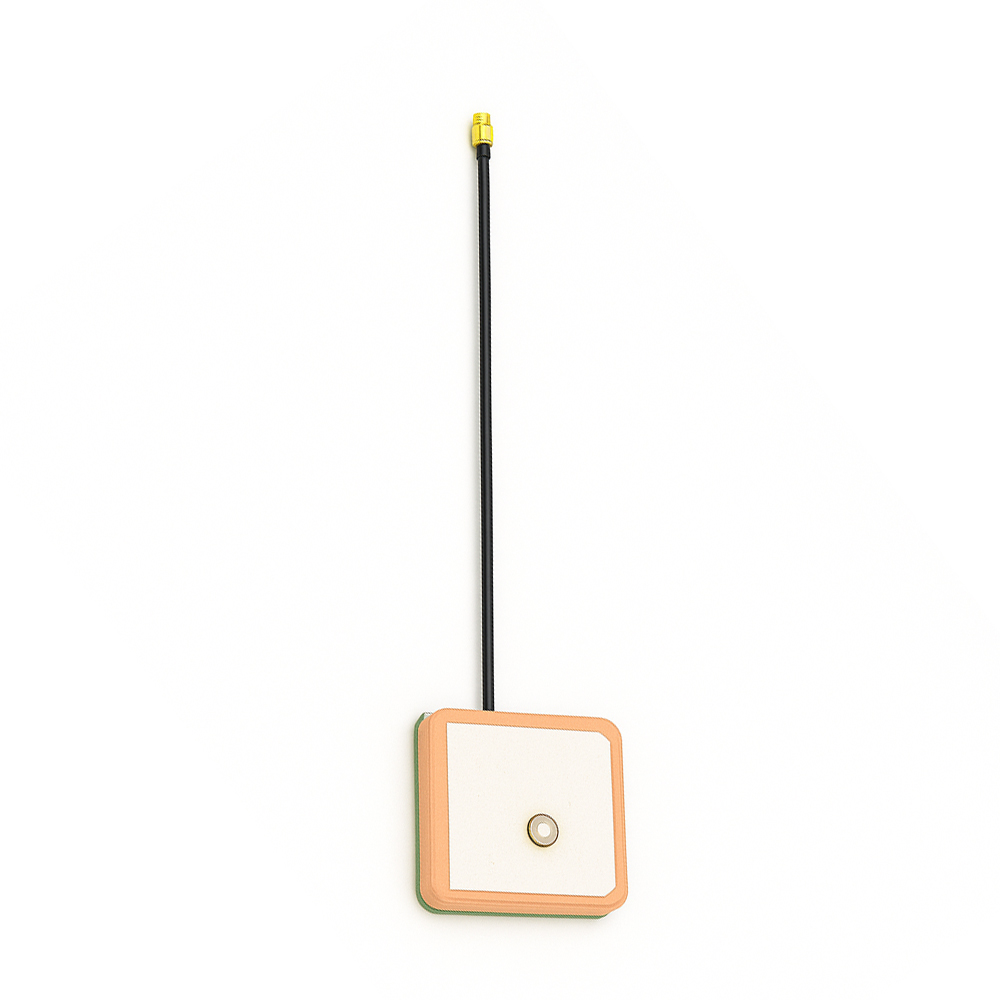

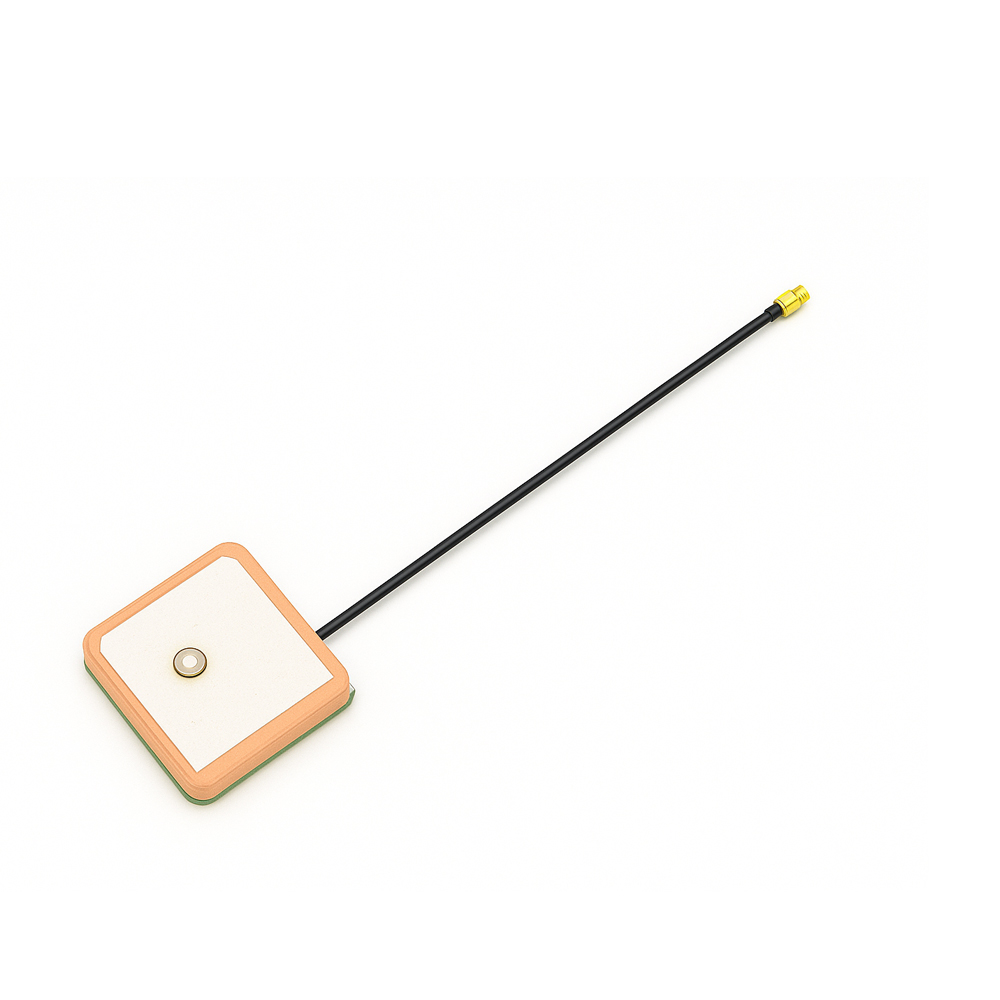

CX-AG24

GPS Antenna

  • Frequency Range: 1575.42 MHz (GPS L1)
  • Gain: 28 dB ± 2 dB (Active)
  • Polarization: Right-Hand Circular Polarization (RHCP)
  • Impedance: 50 Ω
  • Voltage: 3V–5V DC
  • Connector Type: IPEX / SMA / Customized options available
  • Cable Type & Length: RG174 or 1.5–3m (customizable)
  • Mounting Type: Adhesive / Embedded
  • Operating Temperature: -40°C to +85°C
  • Dimensions: 25 × 25 × 8 mm


Descritption CX-AG24

The GPS Antenna CX-AG24 is a high-precision, compact ceramic patch antenna designed for reliable satellite signal reception. With its stable performance and low noise amplifier, it ensures accurate GPS positioning in navigation, IoT devices, and automotive tracking systems. The lightweight design and strong signal gain make it ideal for both embedded and external GPS module applications.
