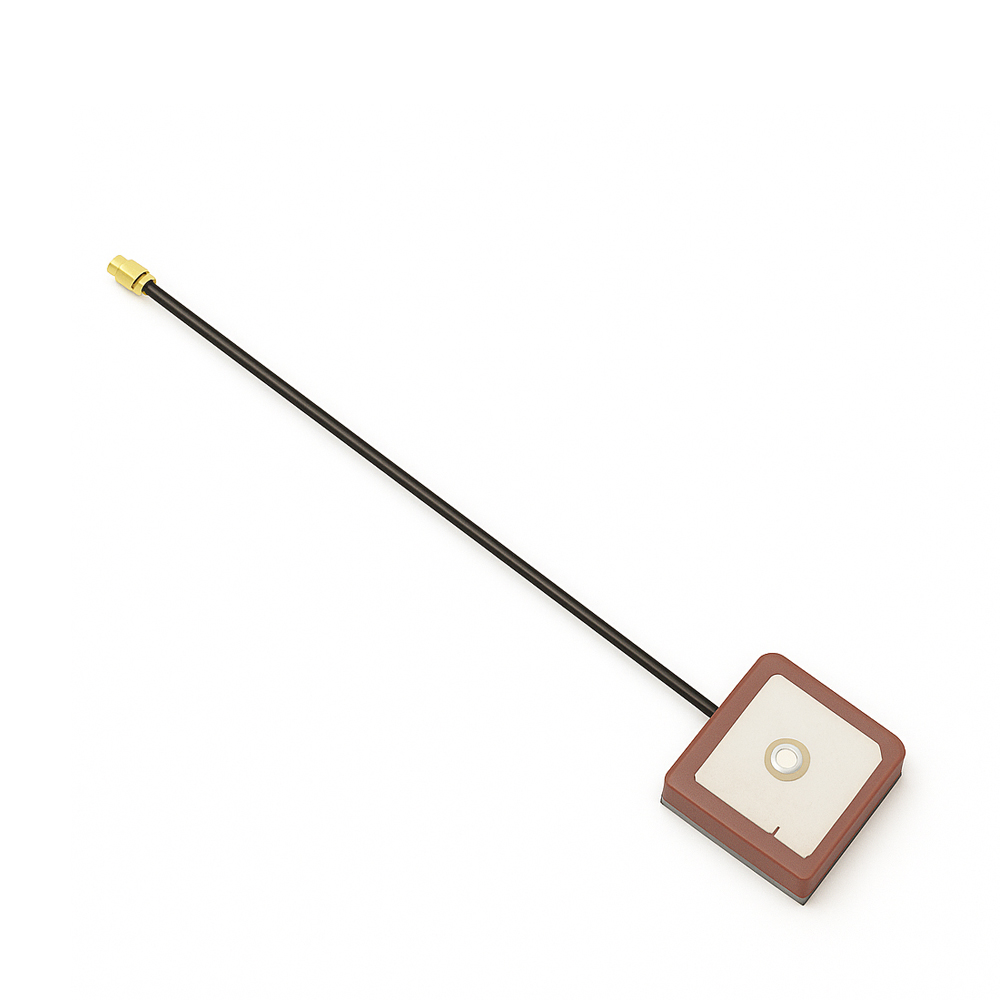

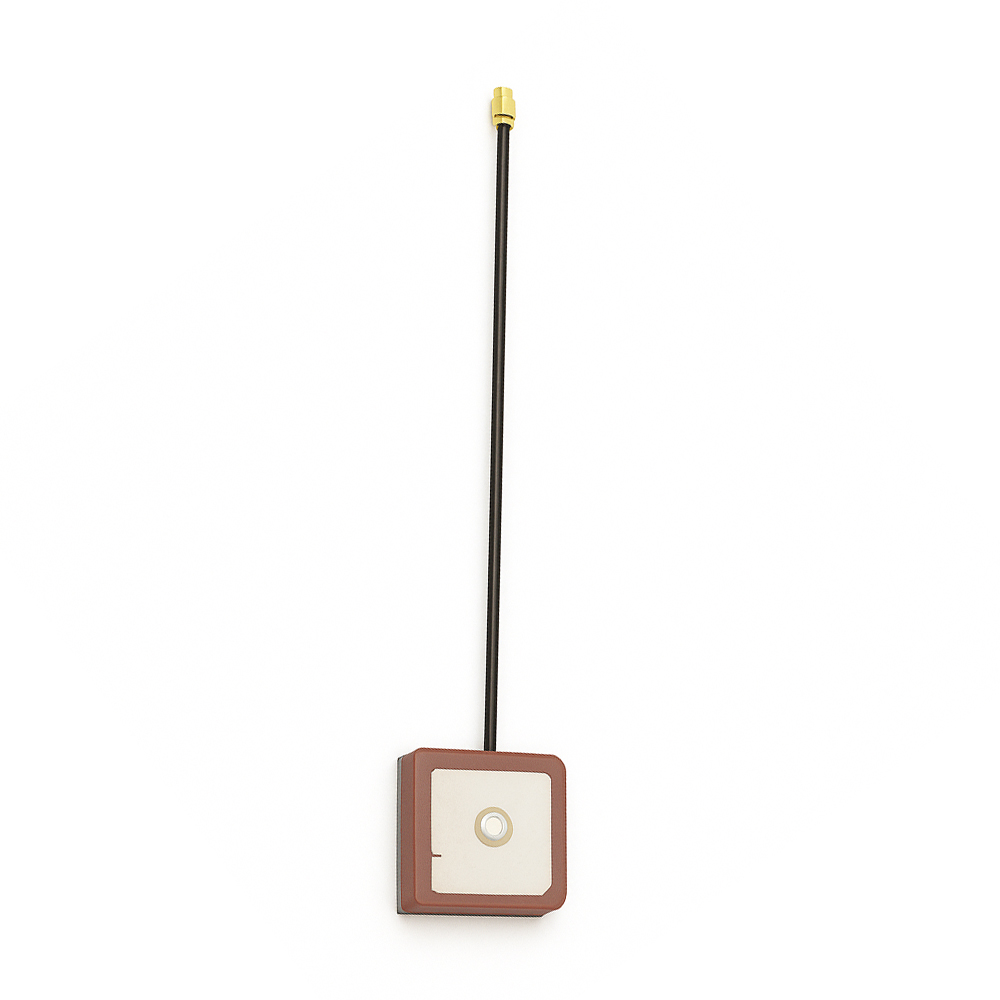

CX-AG26

GPS Antenna

Frequency Range: 1575.42 MHz (GPS L1), compatible with GLONASS/Galileo/BeiDou
Gain: 28 dB ±2 dB (active)
VSWR: ≤ 1.5:1
Polarization: Right-Hand Circular Polarization (RHCP)
Noise Figure: ≤ 1.5 dB
Impedance: 50 Ω
Power Supply: 2.7V – 5V DC
Current Consumption: ≤ 15 mA
Connector Type: IPEX / SMA / Customized
Cable Type: RG174 or 1.13 coaxial cable (length customizable)
Dimensions: 25 × 25 × 8 mm (patch)
Operating Temperature: -40°C to +85°C
Mounting Type: Adhesive or screw mount
Housing Material: Ceramic patch with epoxy coating

Enquire Now

Download Specification

Descritption CX-AG26

The CX-AG26 GPS Antenna is a compact, high-sensitivity patch antenna designed for precise GNSS positioning applications. It offers reliable signal reception across GPS, GLONASS, Galileo, and BeiDou systems, making it ideal for embedded designs, tracking systems, and IoT devices that demand accurate location data in a small form factor.
