CX-AP01B

Glue Stick Antenna

Frequency Range: 824–960 MHz / 1710–2170 MHz (or customized as required)
Gain: 2 dBi to 5 dBi (depending on model specification)
Impedance: 50 Ω
Radiation Pattern: Omni-directional
Connector Type: SMA Male (Gold Plated) / RP-SMA / Optional
Antenna Material: ABS with Rubber Coating
Connector Material: Brass with Gold Plating
Operating Temperature: -40°C to +85°C
Length: Approx. 50mm–80mm (Glue Stick Style)
Mounting: Threaded screw-on, secure and easy installation
Applications: GSM / 2G / 3G / 4G LTE / Wi-Fi / IoT / M2M / Telemetry

Enquire Now

Download Specification

Descritption CX-AP01B

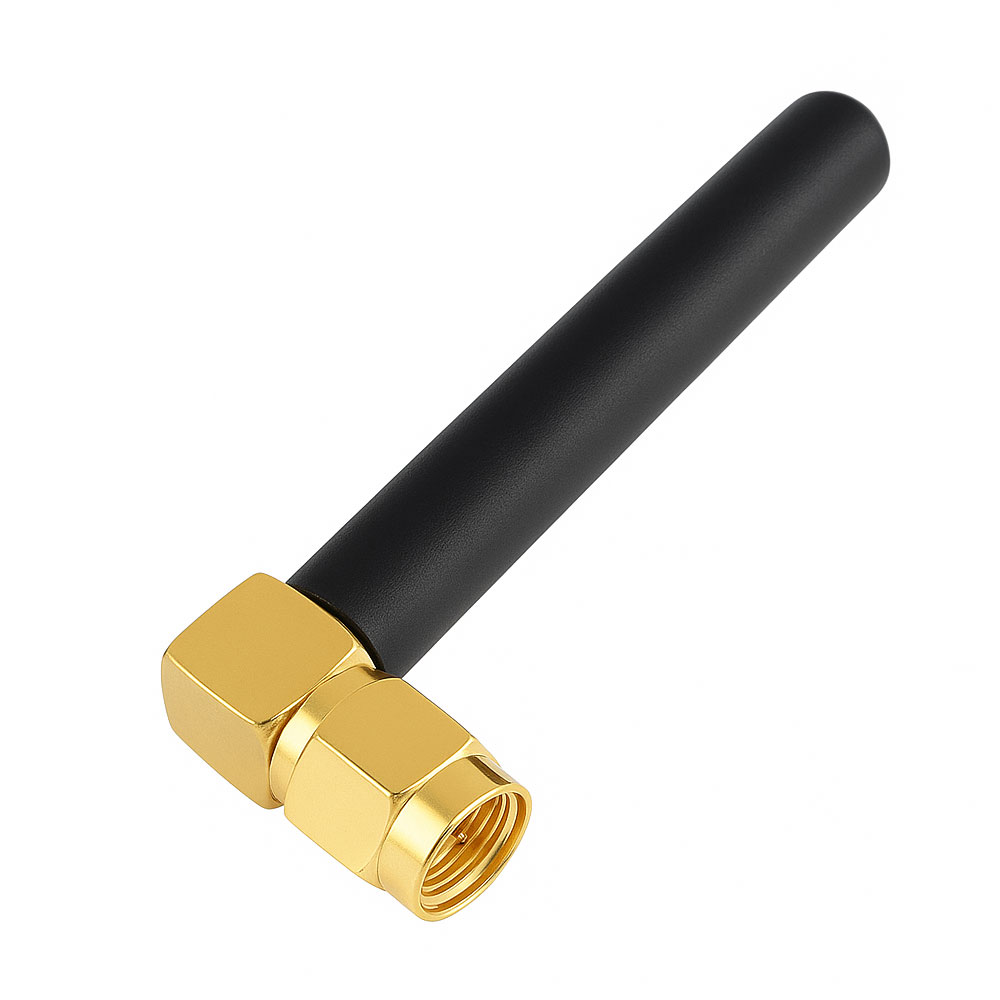

The Glue Stick Antenna CX-AP01B is a compact, omni-directional antenna with a sleek black finish and gold-plated SMA connector. Designed for stable signal performance, it’s ideal for GSM, 3G, 4G LTE, IoT, and wireless communication devices.
