CX-AP04F

Glue Stick Antenna

Frequency Range: 824–960 MHz / 1710–2170 MHz
Gain: 2 dBi to 5 dBi (depending on configuration)
Impedance: 50 Ω
Radiation Pattern: Omni-directional
Material: ABS Housing with Brass Connector (Gold-Plated)
Antenna Length: Approx. 80mm
Operating Temperature: -40°C to +85°C
Mounting Type: Screw-on, standard SMA interface
Applications: GSM / 2G / 3G / 4G LTE / IoT / M2M / Wireless Modules

Enquire Now

Download Specification

Descritption CX-AP04F

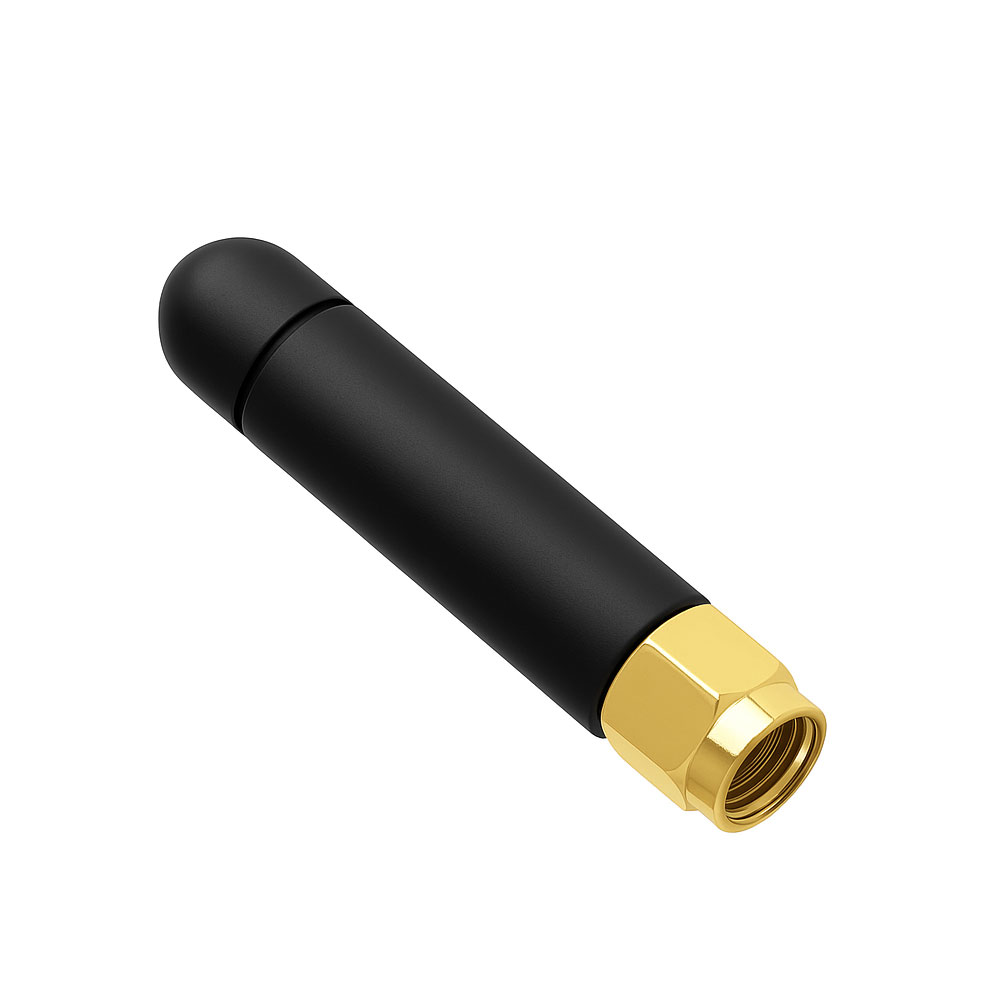

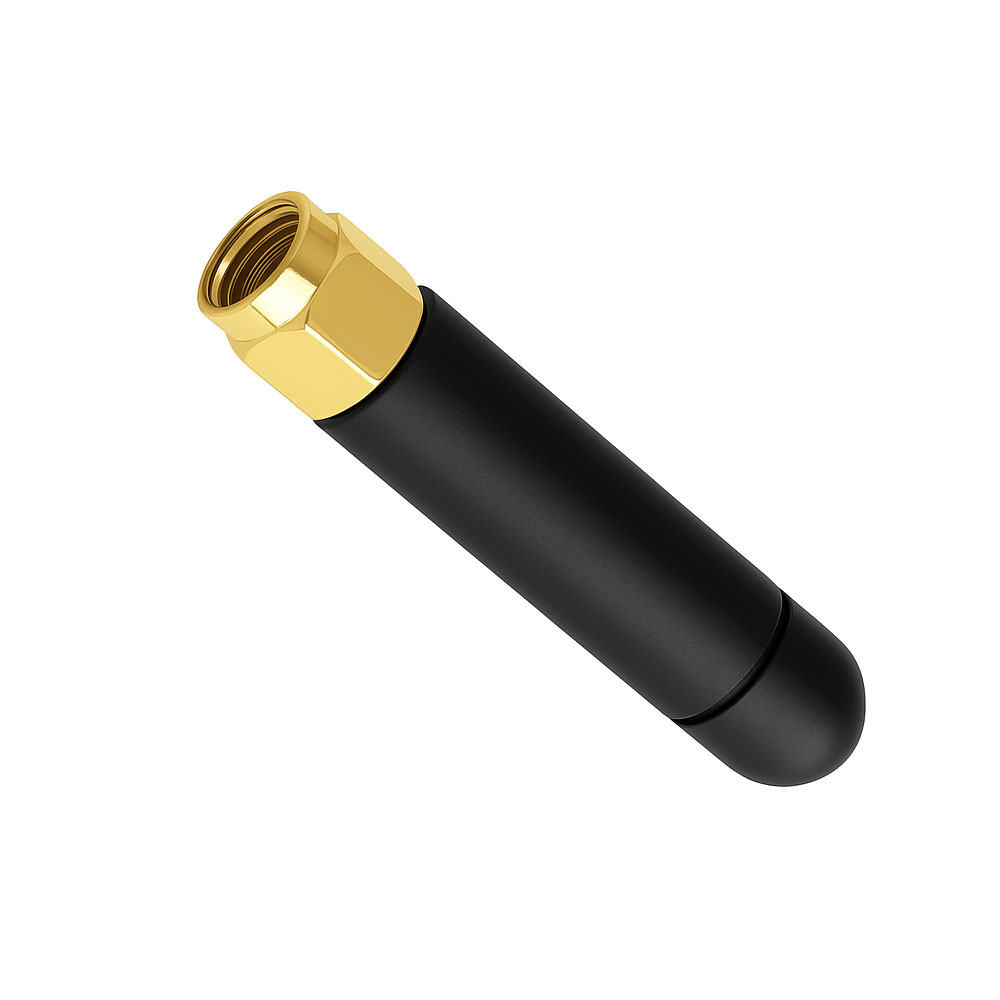

The CX-AP04F Glue Stick Antenna is a compact, high-performance antenna with a sleek black cylindrical design and a gold-plated SMA connector. Ideal for GSM, LTE, and IoT applications, it offers reliable signal strength in a space-efficient form factor.
