CX-AP04B

Glue Stick Antenna

Frequency Range: 824–960 MHz / 1710–2170 MHz (Dual-band support)
Gain: 3 dBi (typical)
Impedance: 50 Ω
Connector Type: SMA Male (Gold-Plated, Right-Angle)
Material: ABS Housing with Brass Connector (Gold Plated)
Length: Approx. 50mm – 60mm
Operating Temperature: -40°C to +85°C
Mounting Type: Screw-on via SMA interface
Applications: GSM / 2G / 3G / 4G LTE / IoT / Wireless Modules / M2M Communication

Enquire Now

Download Specification

Descritption CX-AP04B

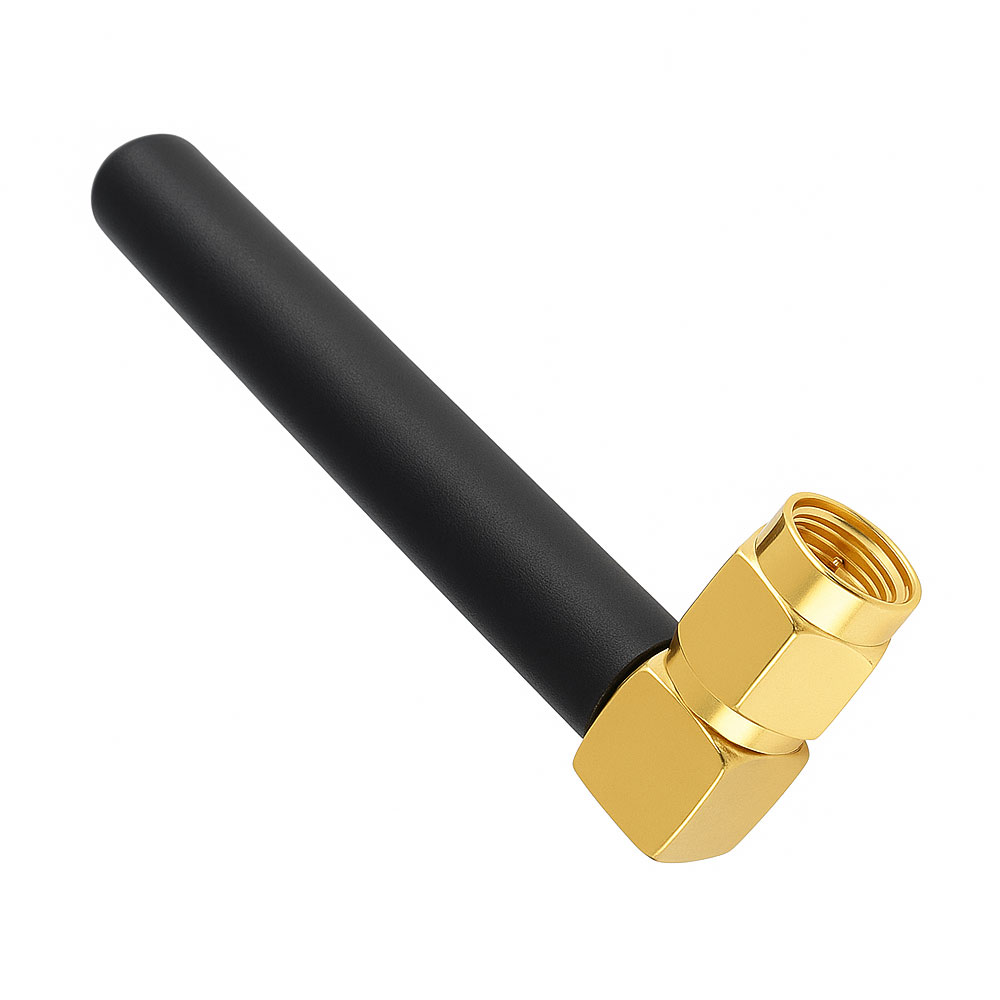

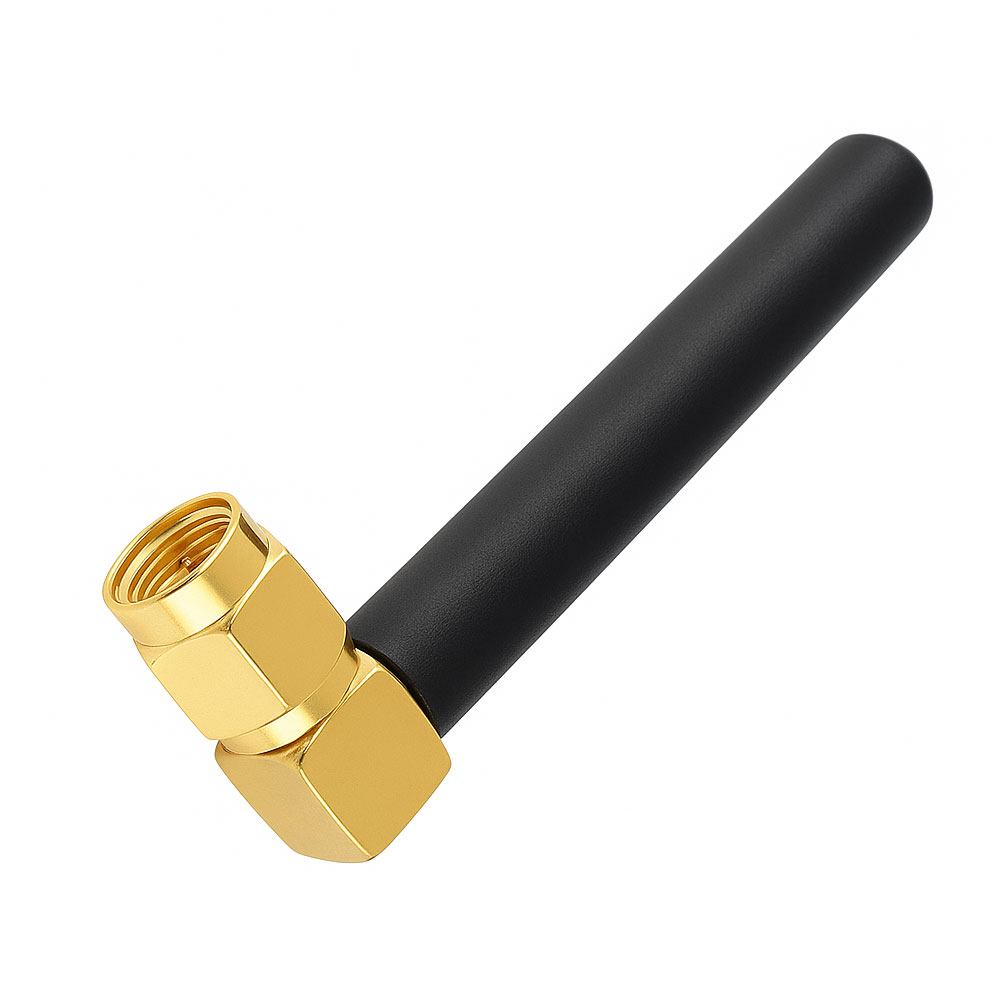

The CX-AP04B Glue Stick Antenna is a compact, right-angle SMA antenna designed for reliable GSM, 3G, and 4G LTE performance. With a sleek black body and gold-plated connector, it ensures strong signal reception for IoT and wireless applications in space-constrained setups.
