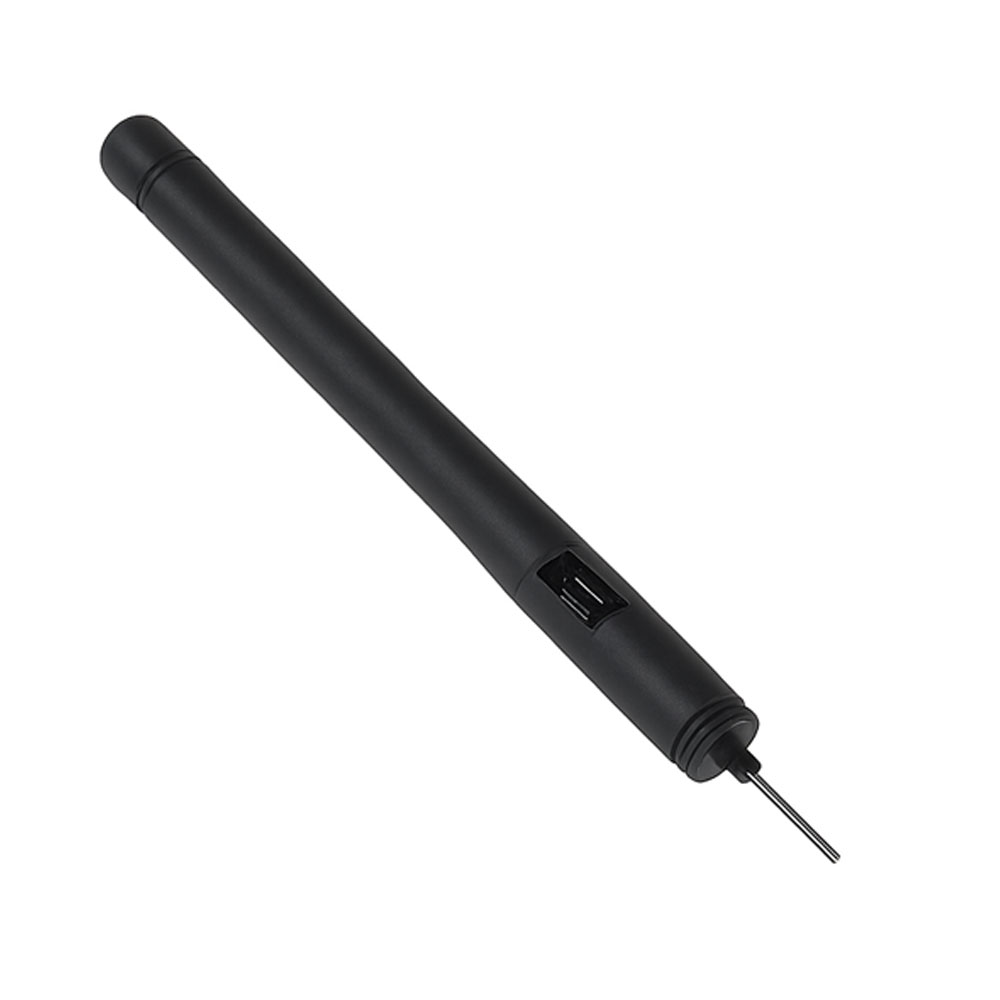

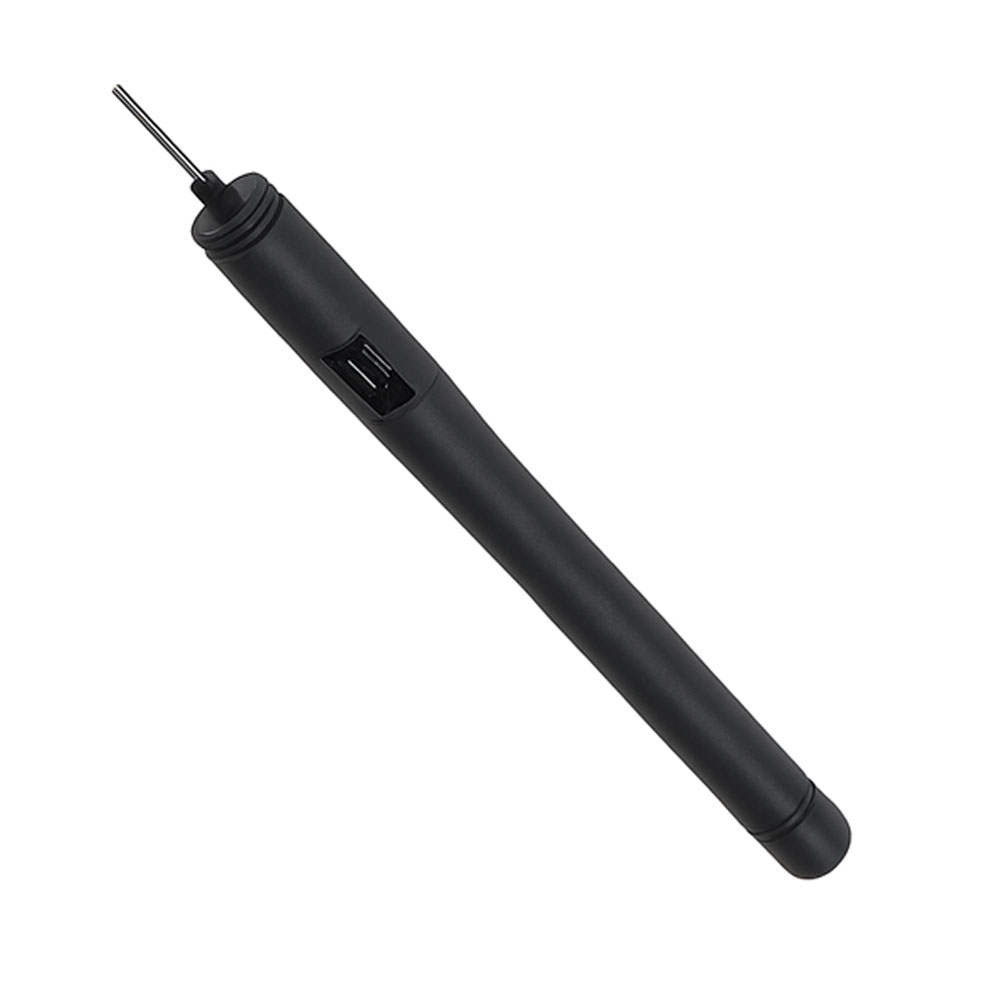

CX-AP02F

Glue Stick Antenna

Frequency Range: 824–960 MHz / 1710–2170 MHz (Dual-band)
Gain: 2–3 dBi
Impedance: 50 Ω
Connector Type: Pigtail cable (customizable connectors like IPEX, U.FL, SMA, etc.)
Cable Length: Typically 10–30 cm (custom options available)
Antenna Material: Durable ABS with matte black finish
Length: Approx. 60–80 mm
Mounting Type: Internal or adhesive mount with cable lead-out
Applications: GSM / 2G / 3G / 4G LTE / IoT / Smart Devices / M2M / Embedded Wireless Systems

Enquire Now

Download Specification

Descritption CX-AP02F

The CX-AP02F Glue Stick Antenna is a compact, high-gain antenna with a rugged cylindrical body and an integrated cable for seamless connectivity. Ideal for GSM, LTE, and IoT applications, it ensures stable and efficient signal performance even in embedded environments.
