CX-AP04D

Glue Stick Antenna

Frequency Range: 824–960 MHz / 1710–2170 MHz (dual-band)
Gain: 2 dBi to 3 dBi
Impedance: 50 Ω
Material: Rubber-coated ABS antenna body with brass connector
Length: Approx. 40mm – 60mm
Operating Temperature: -40°C to +85°C
Mounting Type: Screw-on SMA interface
Application: GSM / 2G / 3G / 4G LTE / IoT / M2M / Telemetry / Wireless Communication

Enquire Now

Download Specification

Descritption CX-AP04D

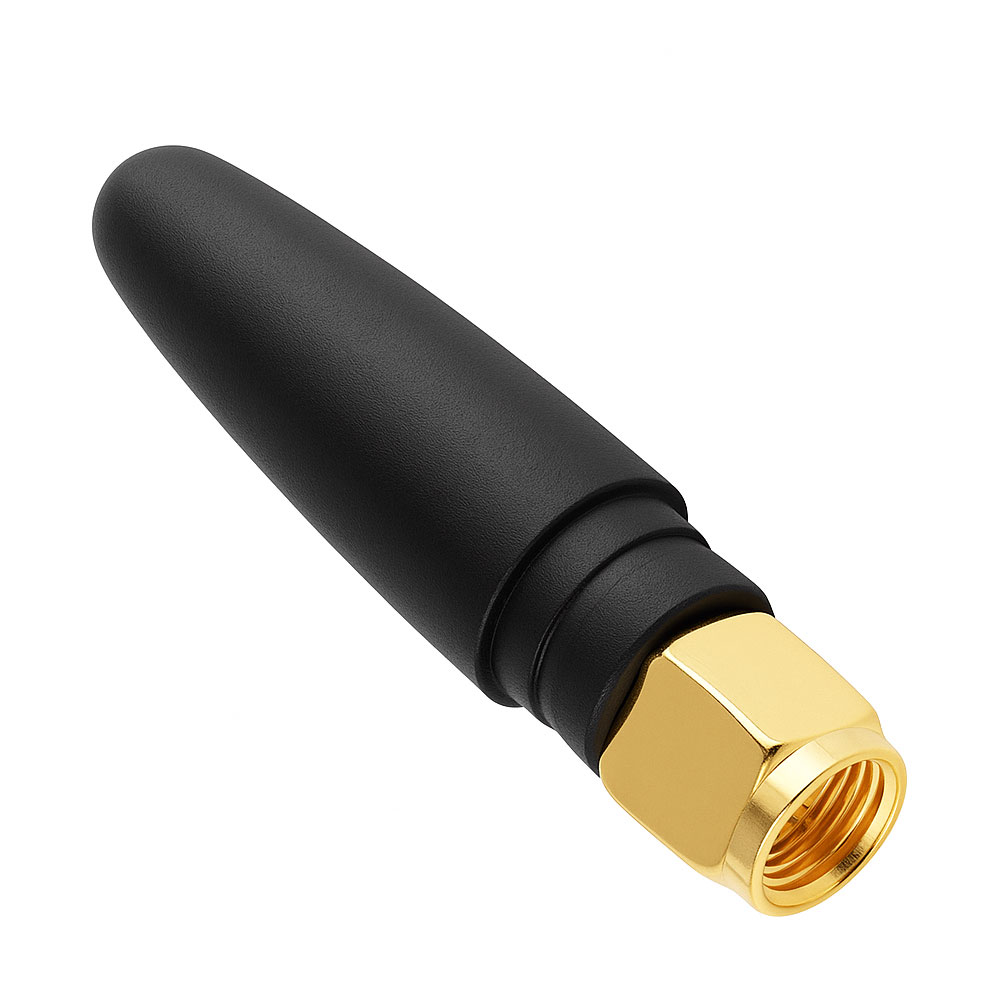

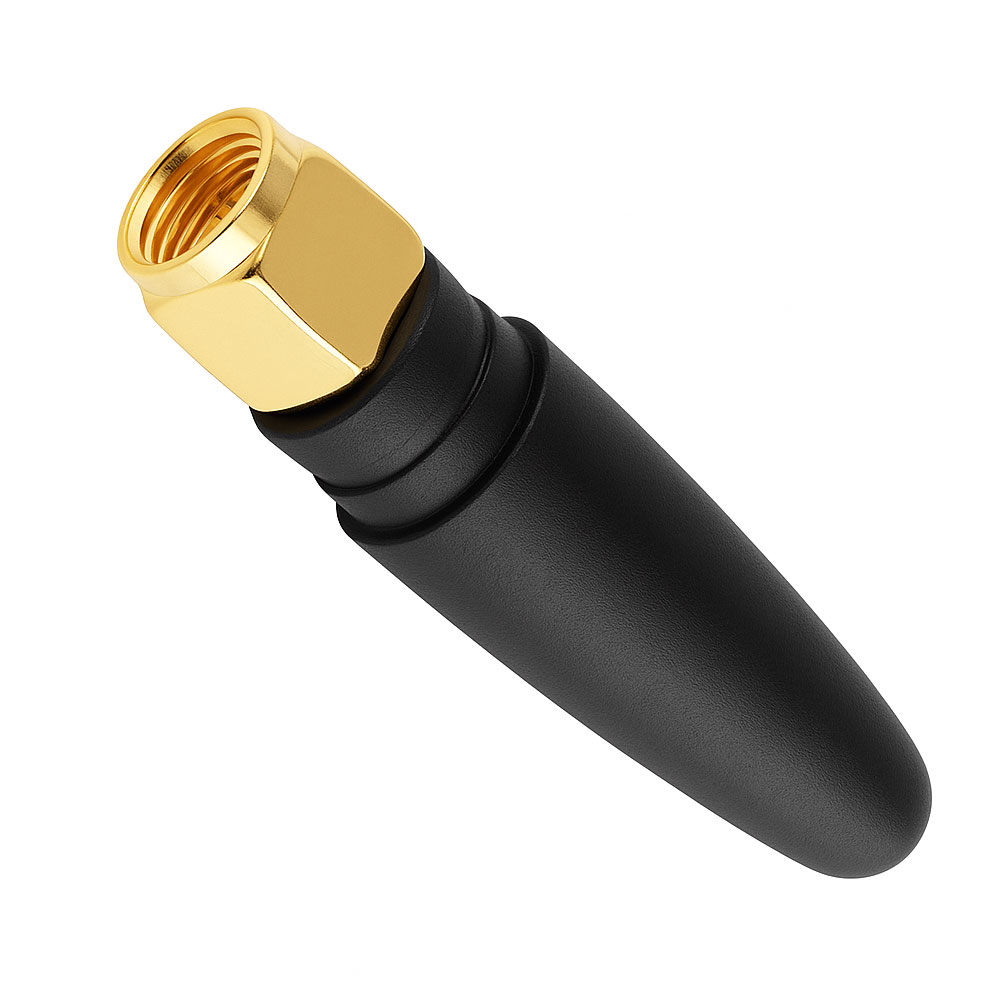

The CX-AP04D Glue Stick Antenna is a compact, durable antenna with a sleek black rubberized body and gold-plated SMA male connector. Designed for GSM, 3G, and 4G LTE applications, it delivers reliable, omni-directional signal performance for IoT and wireless communication devices.
