CX-AP06C

Glue Stick Antenna

Frequency Range: 824–960 MHz / 1710–2170 MHz (Dual-band)
Gain: 2–3 dBi
Impedance: 50 Ω
VSWR: ≤ 2.0
Cable Length: Typically 10–30 cm (customizable)
Material: ABS plastic housing with matte finish
Length: Approx. 60mm – 80mm
Operating Temperature: -40°C to +85°C
Mounting: Screw-on base with side-exit cable
Applications: GSM / 2G / 3G / 4G LTE / IoT / M2M / Wireless Terminals / Embedded Systems

Enquire Now

Download Specification

Descritption CX-AP06C

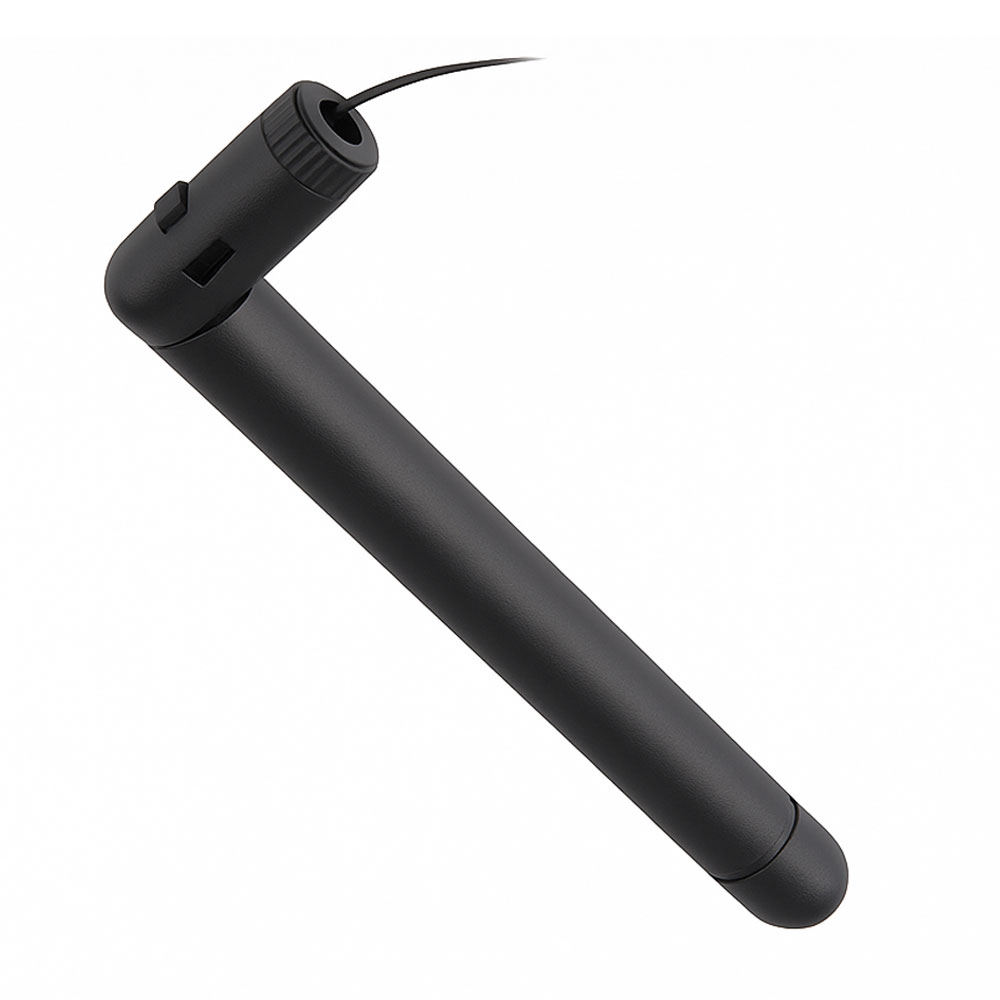

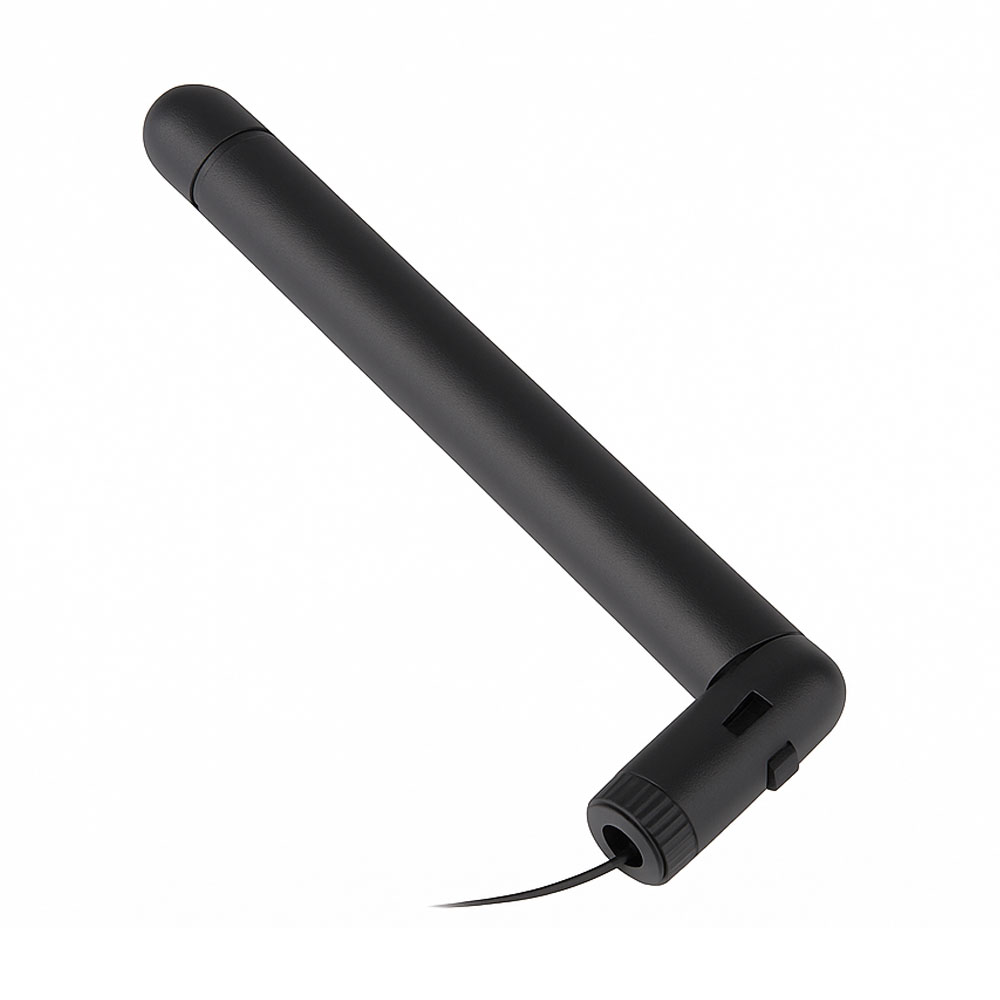

The CX-AP06C Glue Stick Antenna is a compact, right-angle antenna with a black cylindrical body and integrated cable. Designed for GSM, LTE, and IoT systems, it offers stable omni-directional signal performance in a space-efficient format ideal for embedded applications.
