CX-AP06F

Glue Stick Antenna

Frequency Range: 824–960 MHz / 1710–2170 MHz (Dual-band)
Gain: 2–3 dBi
Impedance: 50 Ω
VSWR: ≤ 2.0
Cable Length: 10–30 cm (customizable)
Antenna Material: ABS plastic with matte black finish
Length: Approx. 70mm – 100mm
Operating Temperature: -40°C to +85°C
Mounting Type: Snap-fit or internal mount with cable exit
Applications: GSM / 2G / 3G / 4G LTE / IoT / Embedded Wireless Modules / Smart Terminals / M2M Systems

Enquire Now

Download Specification

Descritption CX-AP06F

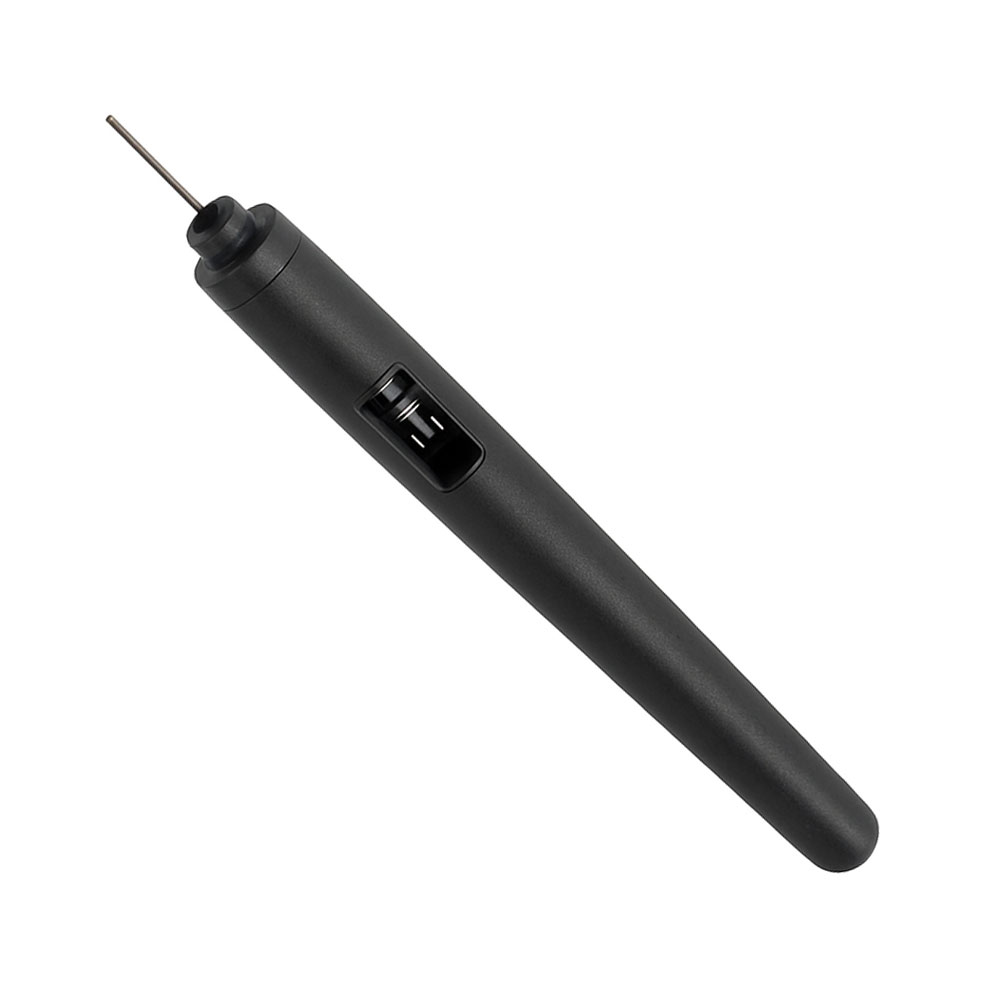

The CX-AP06F Glue Stick Antenna is a sleek, high-efficiency antenna with an integrated cable and a compact cylindrical black housing. Designed for embedded GSM, LTE, and IoT systems, it ensures stable wireless performance in a minimal and space-conscious design.
