CX-AP07B

Glue Stick Antenna

Frequency Range: 824–960 MHz / 1710–2170 MHz (Dual-band)
Gain: 2–3 dBi
Impedance: 50 Ω
Material: ABS plastic body with rubberized coating
Length: Approx. 50mm – 60mm
Operating Temperature: -40°C to +85°C
Mounting: Screw-on type via SMA interface
Applications: GSM / 2G / 3G / 4G LTE / IoT / M2M / Wireless Modules / Telemetry Systems

Enquire Now

Download Specification

Descritption CX-AP07B

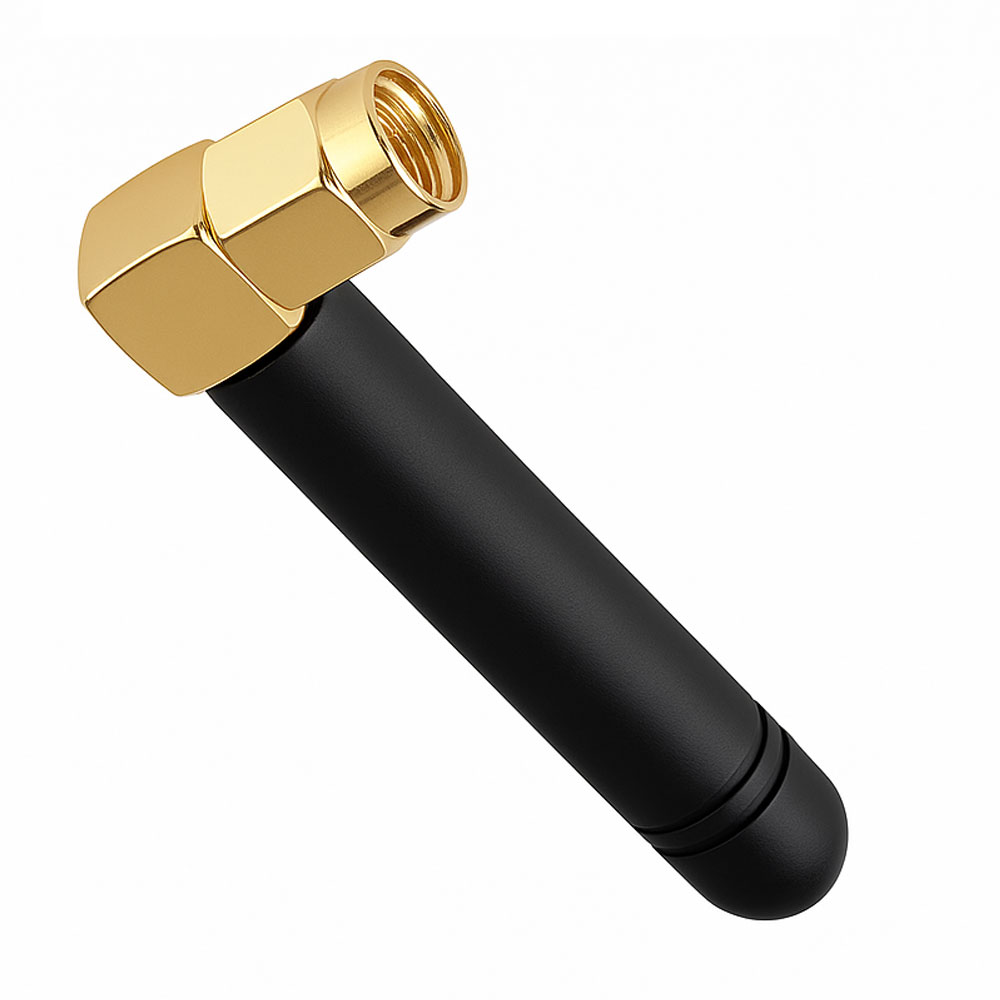

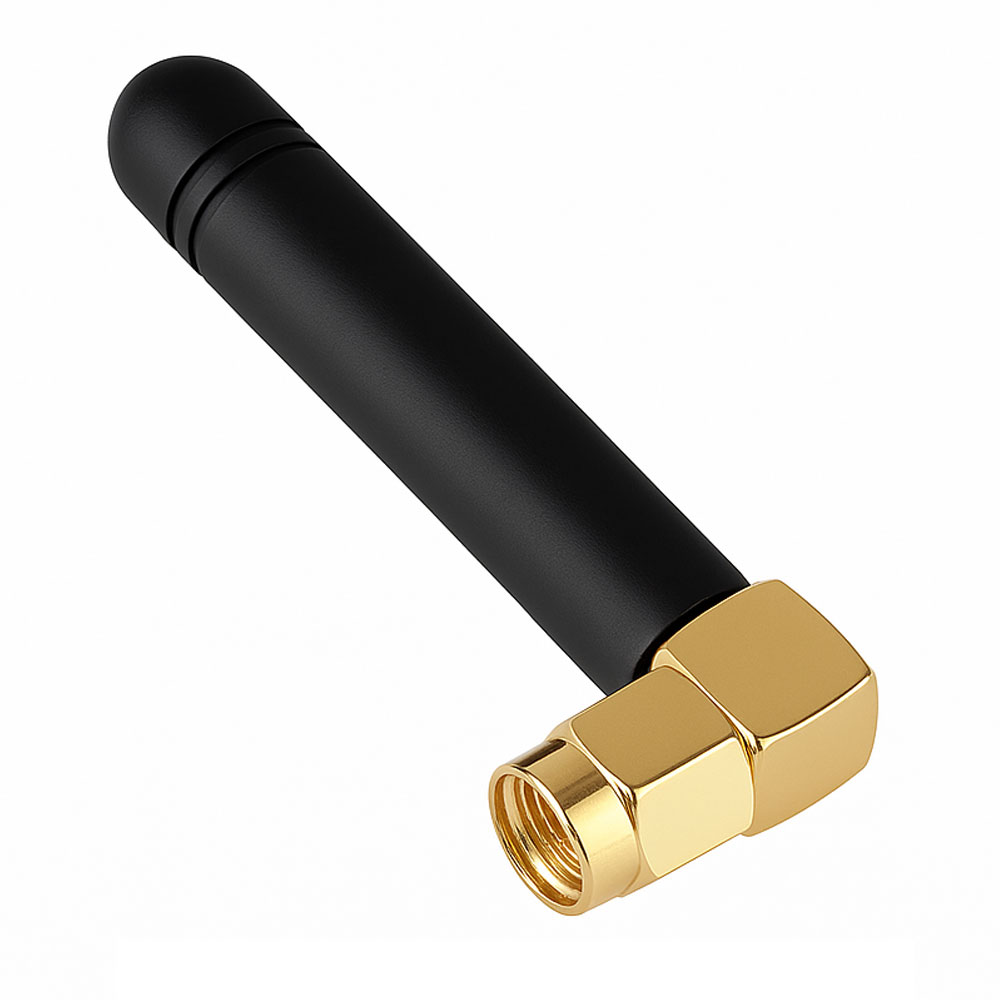

The CX-AP07B Glue Stick Antenna is a compact, right-angle antenna featuring a black cylindrical body and gold-plated SMA male connector. Designed for GSM, LTE, and IoT devices, it delivers strong omni-directional signal performance in space-constrained environments.
