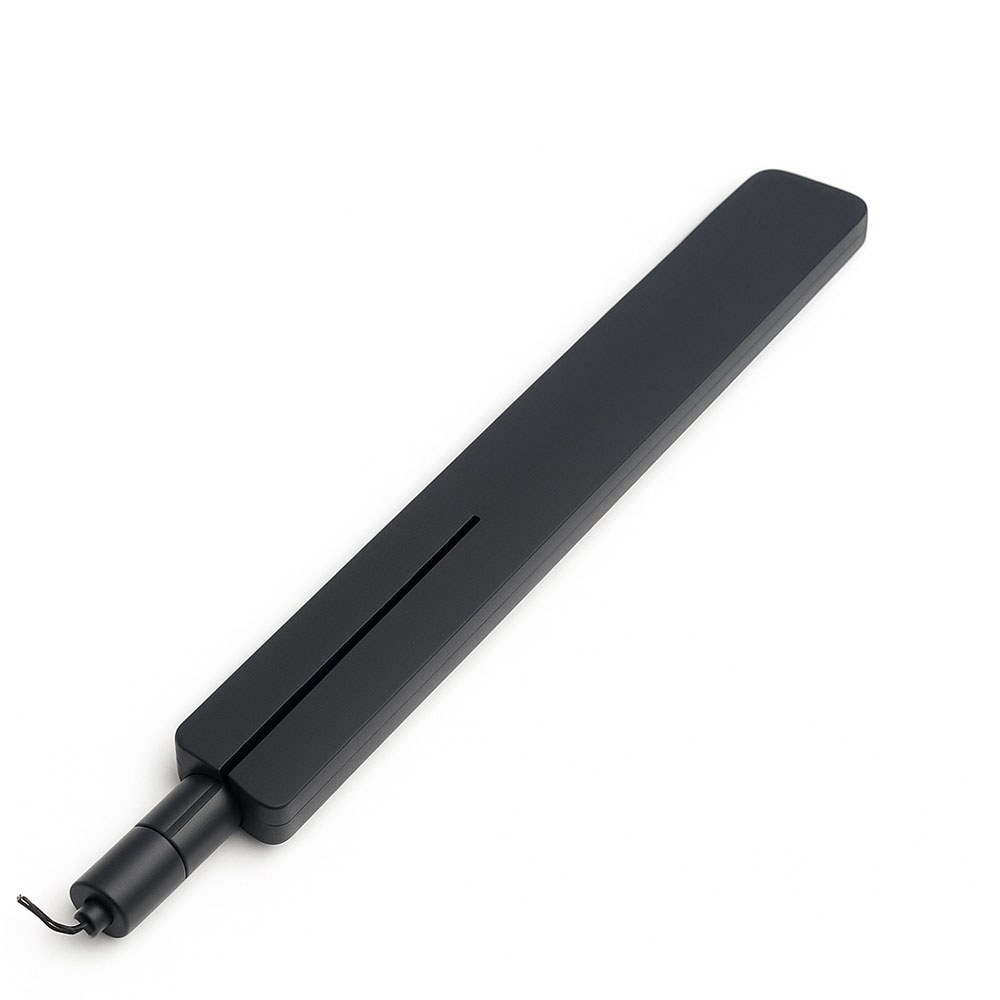

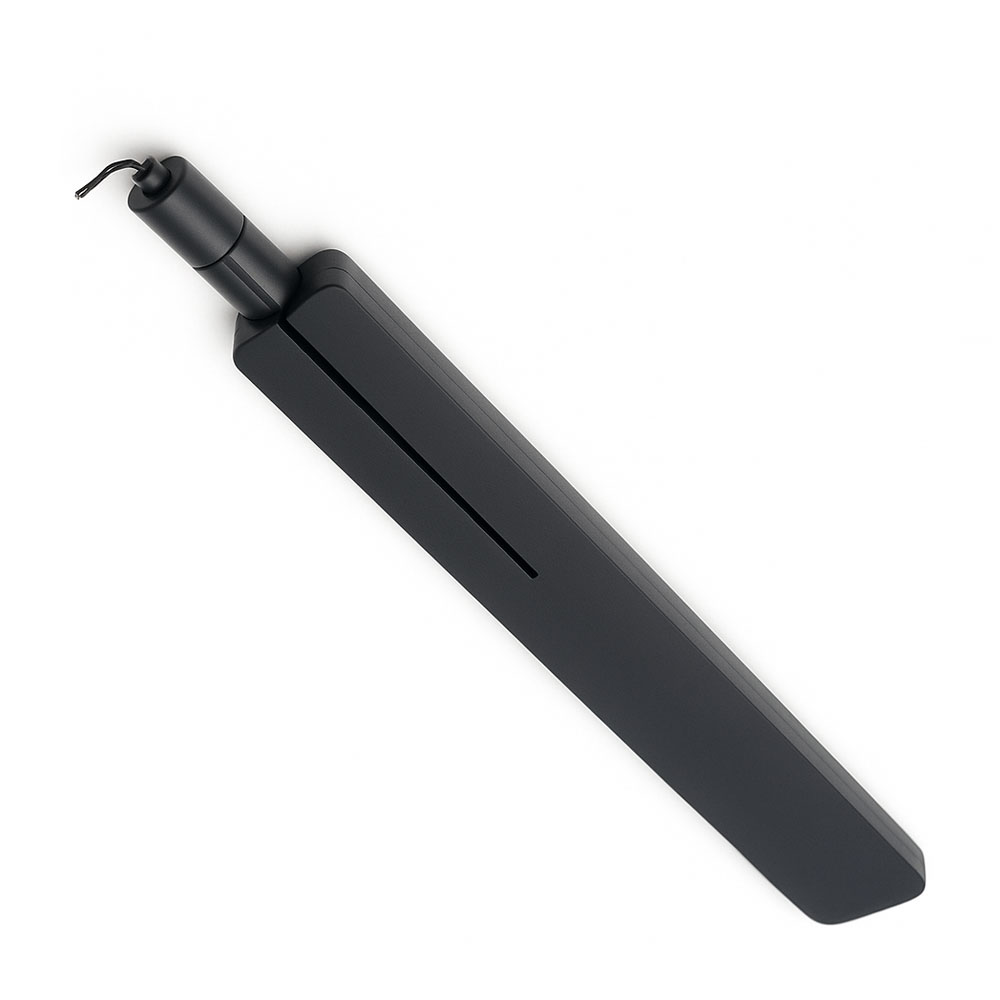

CX-AP17F

Glue Stick Antenna

Frequency Range: 698–2700 MHz (Wideband)
Gain: 3–5 dBi (depending on frequency)
Polarization: Vertical
Radiation Pattern: Omnidirectional
VSWR: ≤ 2.0
Connector Type: SMA-Female (customizable)
Impedance: 50 Ω
Material: High-strength ABS with UV resistance
Operating Temperature: -40°C to +80°C
Length: Approx. 170 mm (varies by model)
Color: Black or white options
Application: GSM, 3G, 4G LTE, Wi-Fi, and IoT communication systems

Enquire Now

Download Specification

Descritption CX-AP17F

The Glue Stick Antenna CX-AP17F is a high-gain omnidirectional antenna optimized for wideband performance, offering stable and efficient connectivity for LTE, Wi-Fi, and IoT applications. With its slim, glue-stick form factor, it combines aesthetics with durability, making it suitable for both indoor and outdoor deployments.
