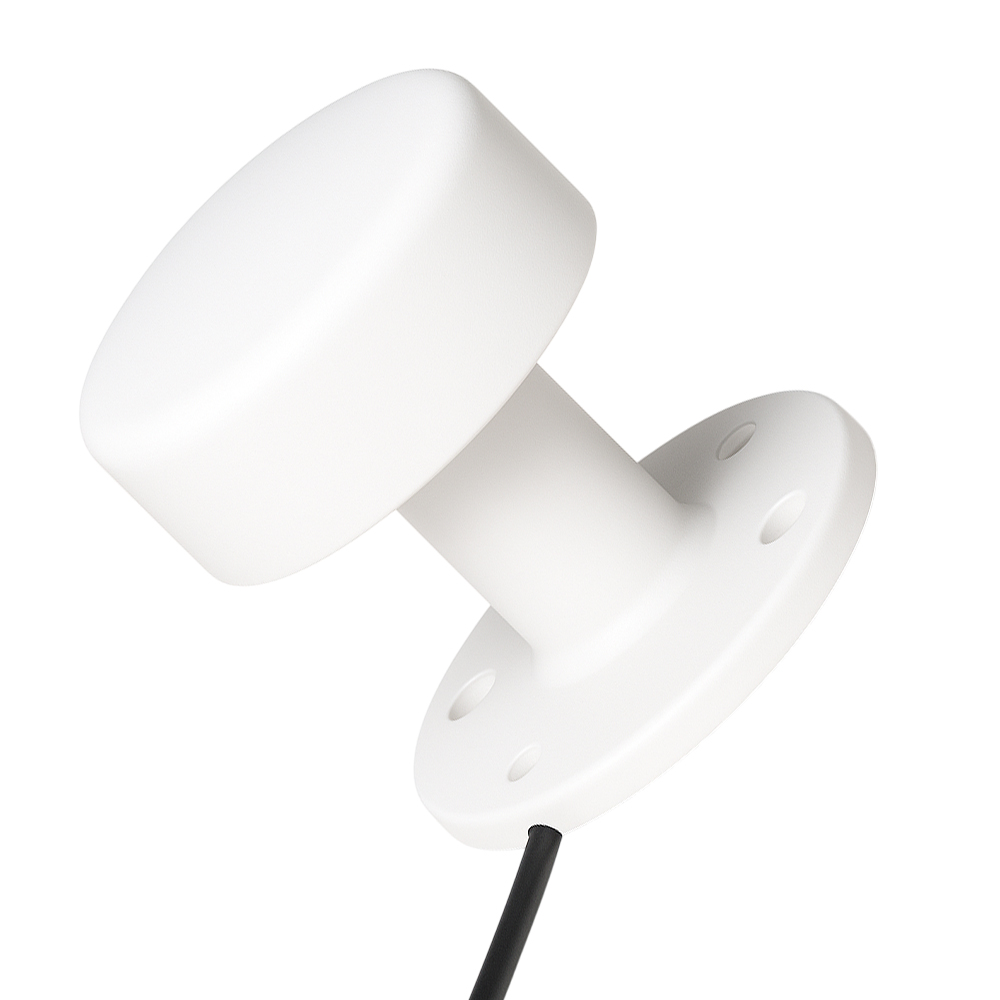

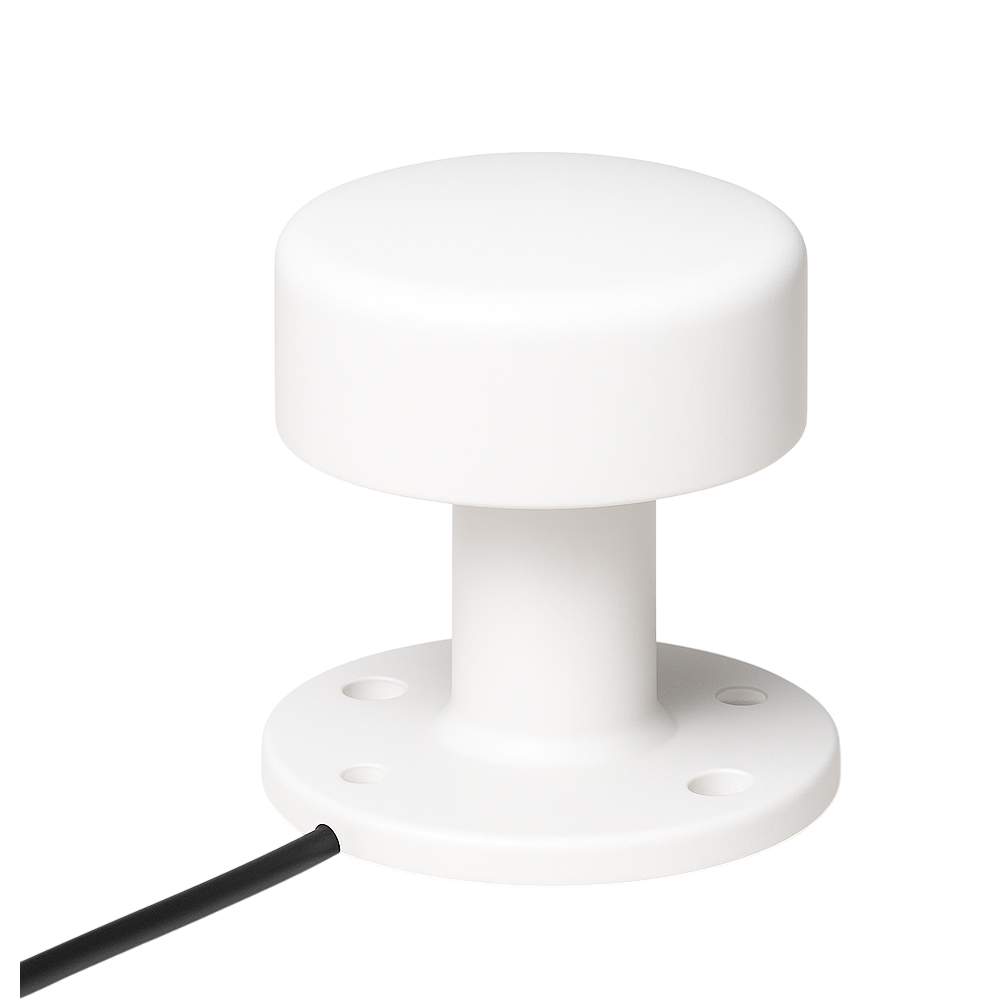

CX-DR05

Celling Antenna

Frequency Range: 698–2700 MHz (Wideband)
Gain: 2–5 dBi (typical, depending on band)
Polarization: Vertical
VSWR: ≤ 2.0
Radiation Pattern: Omni-directional
Connector Type: N-Female or SMA (customizable)
Power Handling: 50 W
Material: UV-resistant ABS, flame-retardant
Mounting: Ceiling mount with bracket or screws
Impedance: 50 Ω
Operating Temperature: -40°C to +70°C

Enquire Now

Download Specification

Descritption CX-DR05

The CX-DR05 Ceiling Antenna is a compact, wideband indoor antenna designed for reliable signal coverage across multiple frequency ranges. With its low-profile design, it is suitable for discreet ceiling installations in offices, commercial spaces, and industrial environments.
