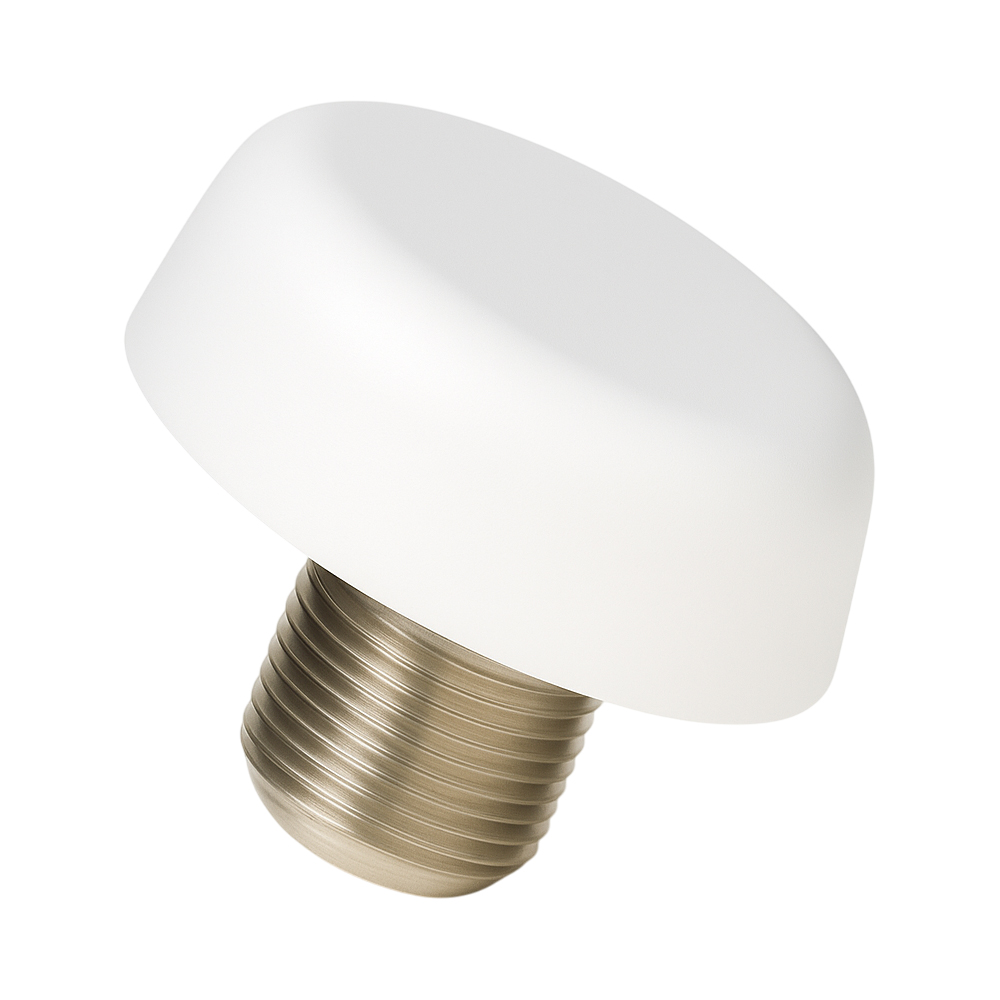

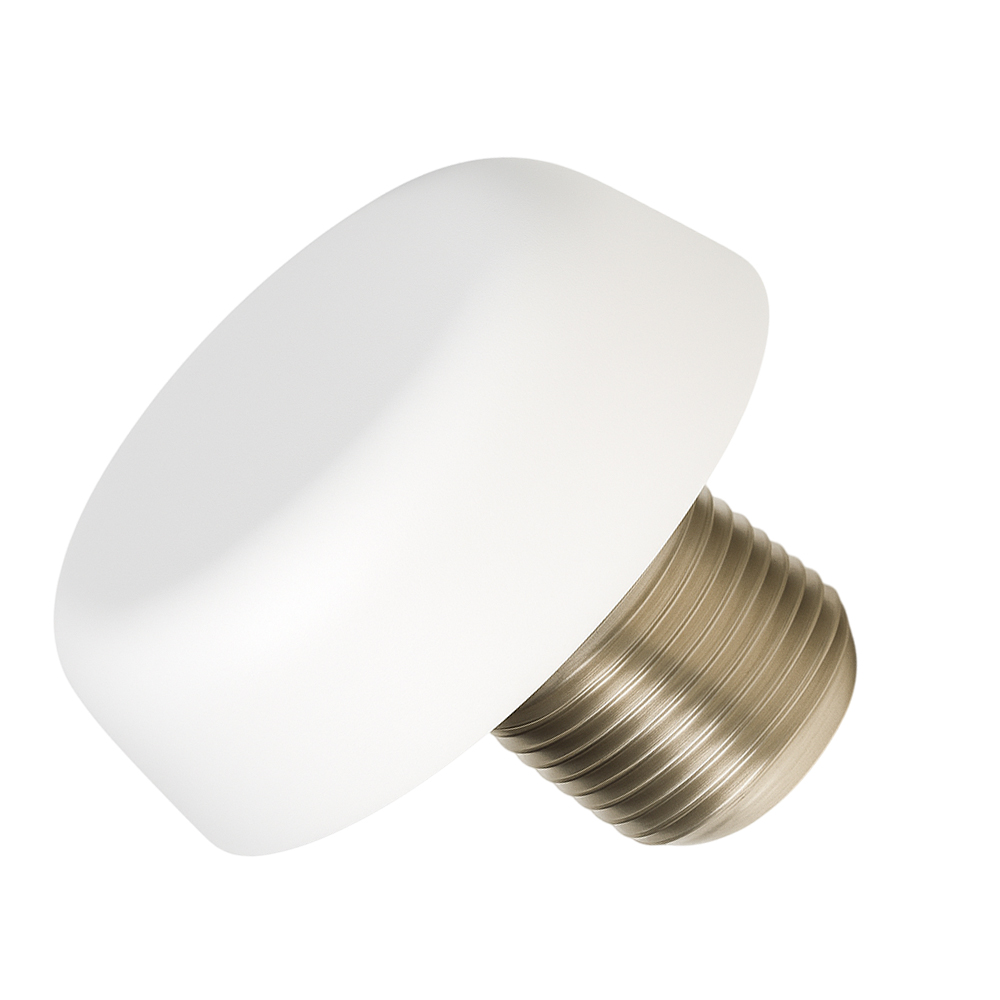

CX-DR04

Celling Antenna

Frequency Range: 698 – 3800 MHz (supports 2G / 3G / 4G / 5G sub-6 GHz)
Gain: ~2 – 6 dBi
Impedance: 50 Ω
VSWR: ≤ 2:1
Polarization: Vertical
Radiation Pattern: Omnidirectional, optimized for indoor ceiling installations
Connector Type: N-female or 4.3-10 (bottom entry)
Maximum Input Power: ~50 W
Design: Ultra-compact, low-profile dome radome
Installation: Flush or surface ceiling mount with secure bracket system
Environmental Protection: Indoor use; flame-retardant housing material
Operating Temperature: –20 °C to +65 °C
Applications: DAS, small cells, Wi-Fi offloading, enterprise wireless coverage

Enquire Now

Download Specification

Descritption CX-DR04

The CX-DR04 Ceiling Antenna is a sleek, wideband indoor antenna designed for distributed antenna systems (DAS) and enterprise wireless coverage. With a compact radome and omnidirectional pattern, it delivers consistent in-building connectivity for LTE, 4G, and 5G networks. Its modern design blends with ceiling installations, ensuring both performance and aesthetics.
