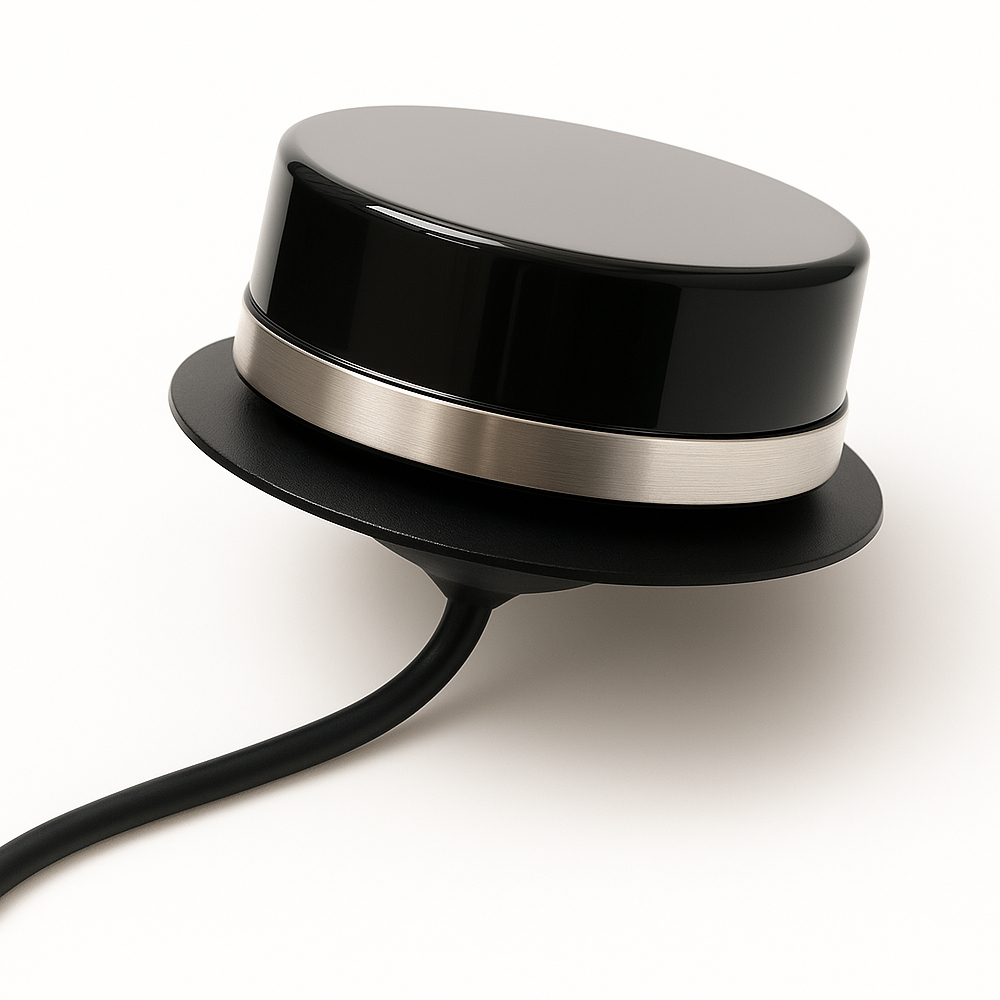

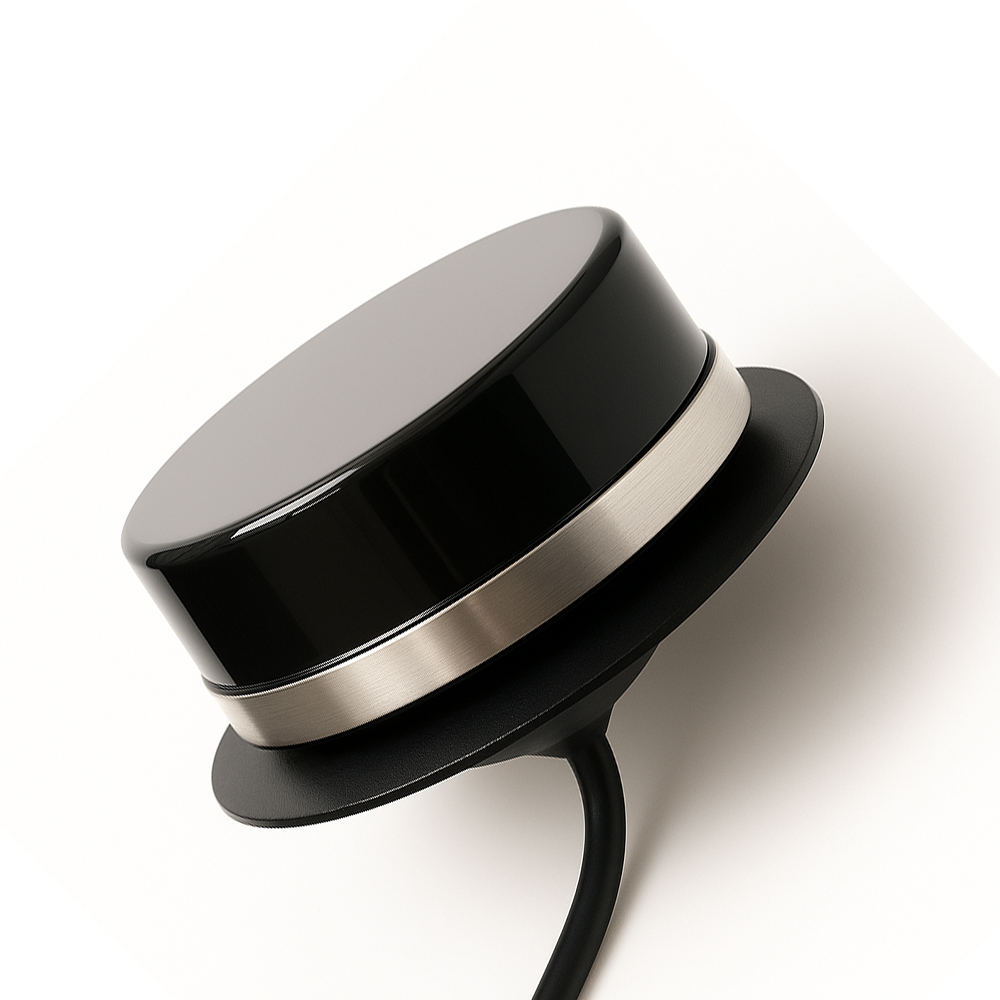

CX-DR03

Celling Antenna

Frequency Range: 698 – 3800 MHz (supports 2G / 3G / 4G / 5G sub-6 GHz)
Gain: ~2 – 5 dBi
Impedance: 50 Ω
VSWR: ≤ 2:1
Polarization: Vertical
Radiation Pattern: Omnidirectional (optimized for ceiling-mount indoor coverage)
Connector Type: N-female or 4.3-10 (rear-mounted)
Maximum Input Power: ~50 W
Design: Slim, low-profile housing for flush ceiling mounting
Installation: Simple surface or recessed mounting for suspended ceilings
Environmental Rating: Indoor use; flame-retardant radome material
Operating Temperature: –20 °C to +65 °C
Applications: DAS, small cell deployments, Wi-Fi offloading, and enterprise wireless coverage

Enquire Now

Download Specification

Descritption CX-DR03

The CX-DR03 Ceiling Antenna is a compact, wideband indoor antenna designed for distributed antenna systems (DAS) and in-building wireless coverage. With an unobtrusive low-profile design, it blends seamlessly into modern interiors while delivering stable omnidirectional signal distribution for LTE, 4G, and 5G networks.
