CX-PCB04

PCB Antenna

Frequency Range: 2.4GHz – 2.5GHz (ISM Band)
Gain: 2.0 dBi (Typical)
Impedance: 50Ω
Polarization: Linear
VSWR: ≤ 2.0
Connector Type: IPEX / U.FL (Optional)
Cable Length: Customizable (Default 100mm)
Material: FR4 PCB substrate
Operating Temperature: -40°C to +85°C
Dimensions: Compact and low-profile design for embedded systems
Applications: Wi-Fi modules, Bluetooth devices, IoT systems, and smart electronics

Enquire Now

Download Specification

Descritption CX-PCB04

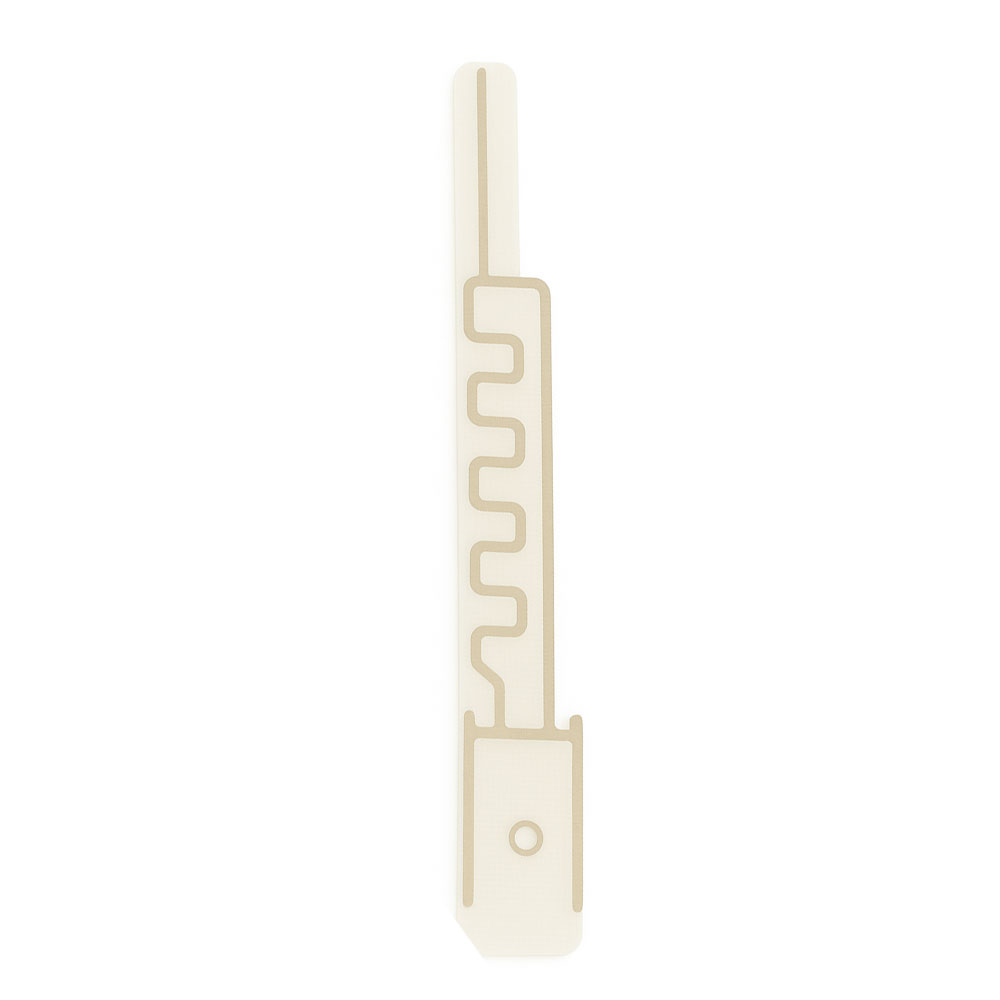

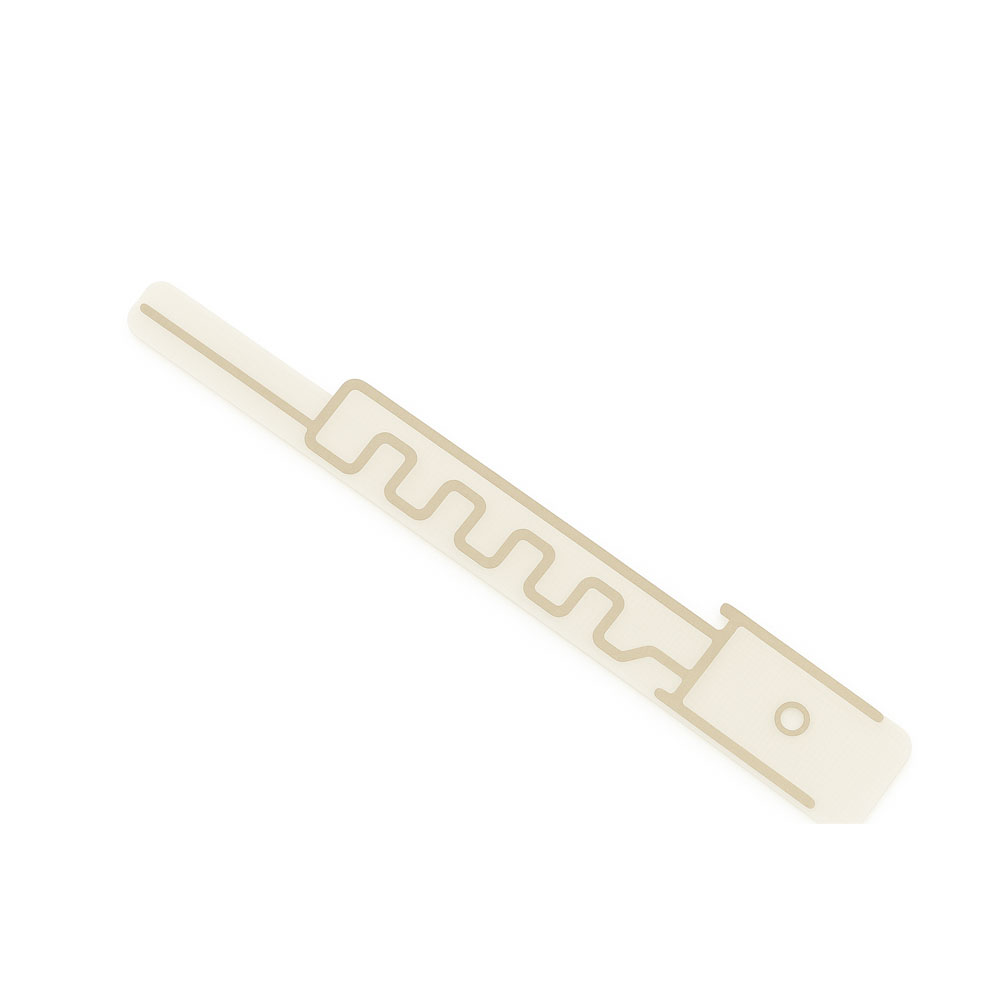

The PCB Antenna CX-PCB04 is a high-performance, compact antenna designed for integration into wireless devices. Its precision-engineered PCB structure ensures stable signal transmission, wide frequency compatibility, and easy embedding in compact electronic circuits, making it ideal for IoT, Bluetooth, and Wi-Fi applications.
