CX-PCB05

PCB Antenna

Frequency Range: 2.4GHz – 2.5GHz (ISM Band)
Gain: 2.5 dBi (Typical)
Impedance: 50Ω
Polarization: Linear
VSWR: ≤ 2.0
Connector Type: IPEX / U.FL (Optional)
Cable Length: Customizable (Standard 100mm)
Material: FR4 PCB substrate
Operating Temperature: -40°C to +85°C
Dimensions: Ultra-slim profile for embedded integration
Applications: Wi-Fi, Bluetooth, Zigbee, Smart Home Devices, IoT Modules

Enquire Now

Download Specification

Descritption CX-PCB05

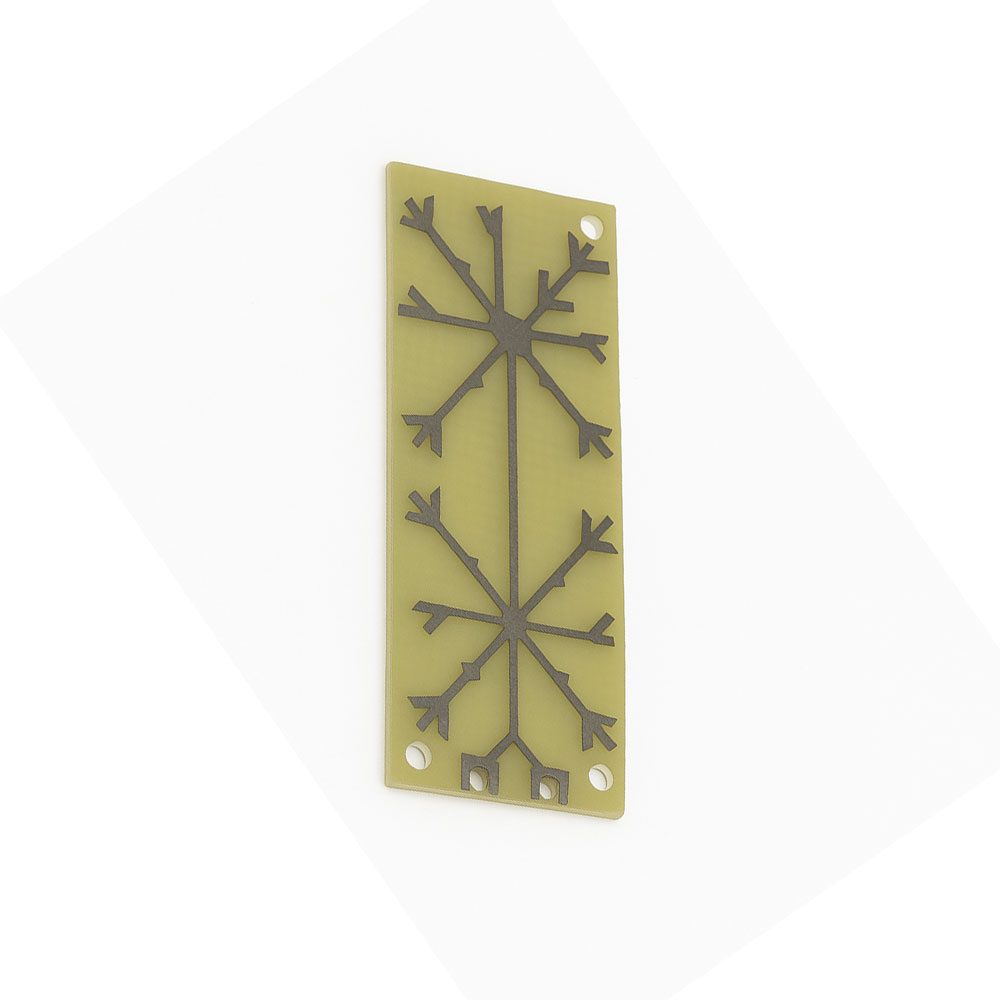

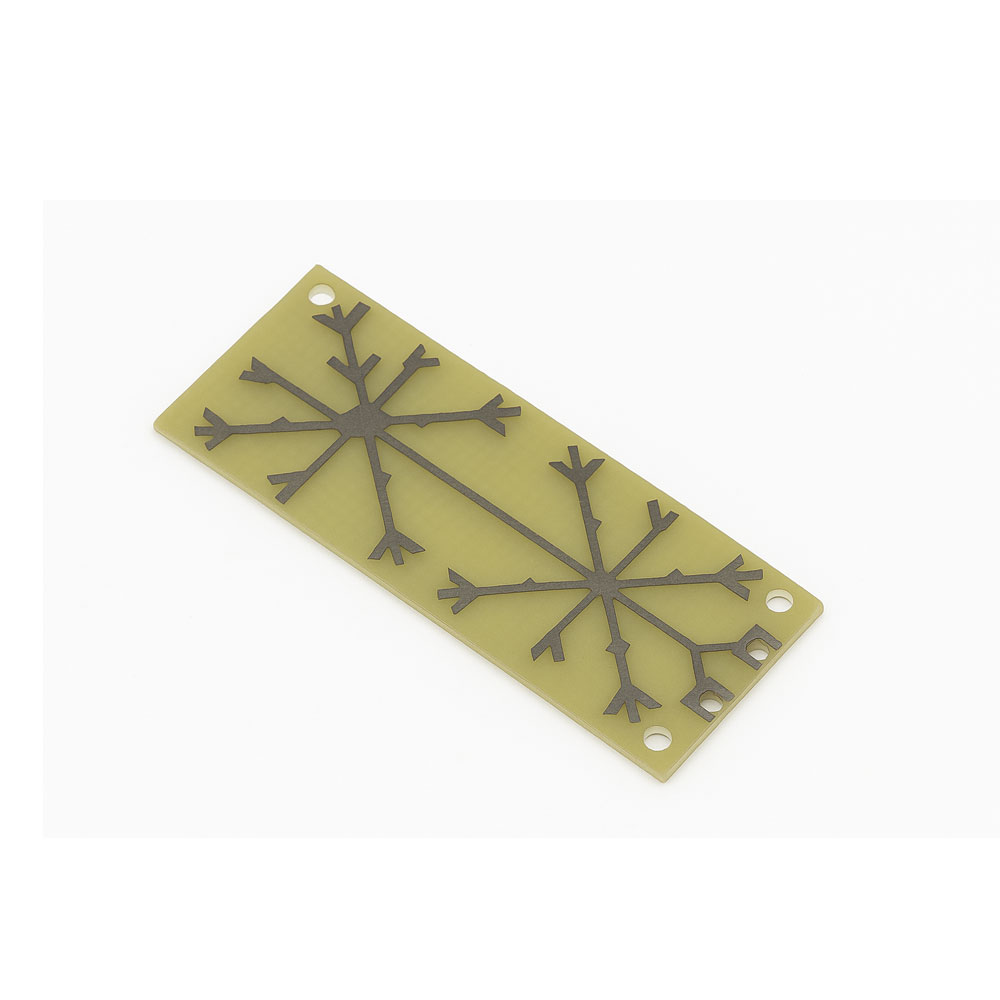

The PCB Antenna CX-PCB05 is a compact, high-efficiency antenna optimized for 2.4GHz wireless communication systems. Its durable PCB structure provides excellent signal stability and easy integration into electronic circuit boards. Ideal for Bluetooth, Wi-Fi, Zigbee, and IoT applications, it delivers reliable connectivity in space-constrained designs.
