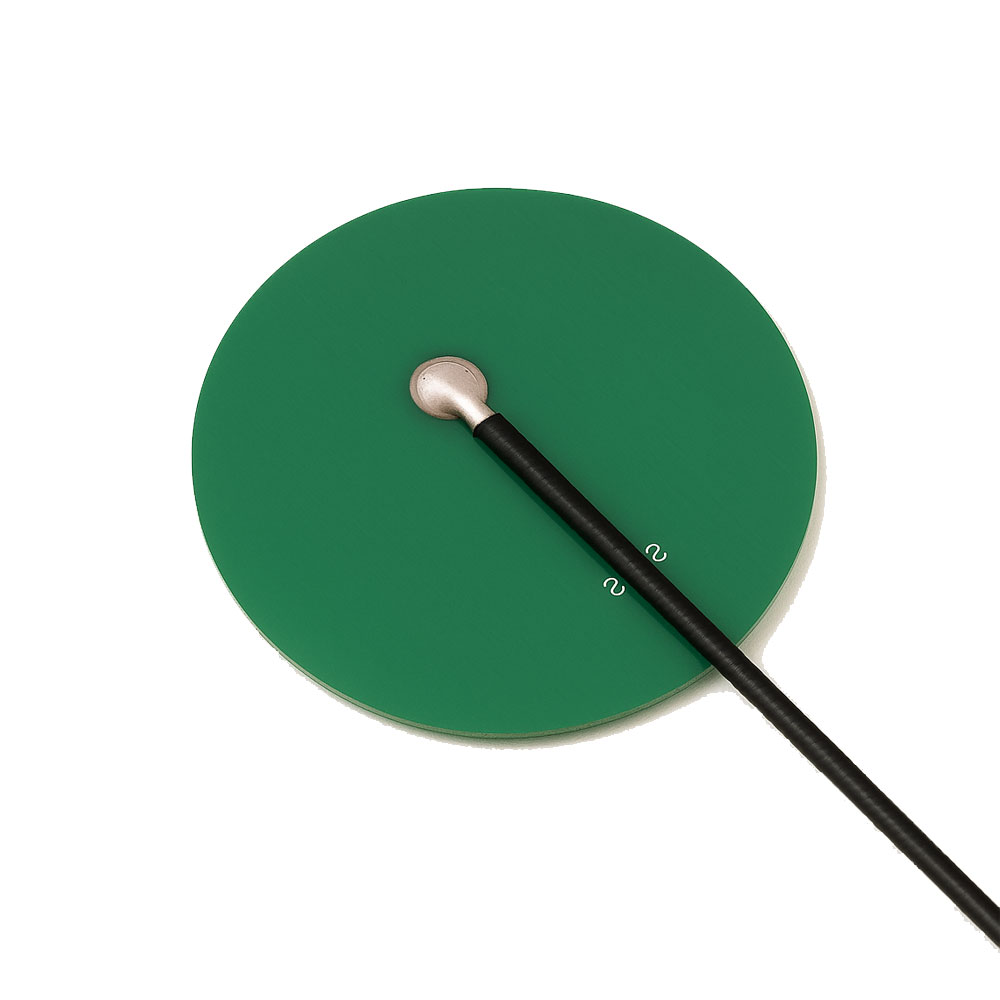

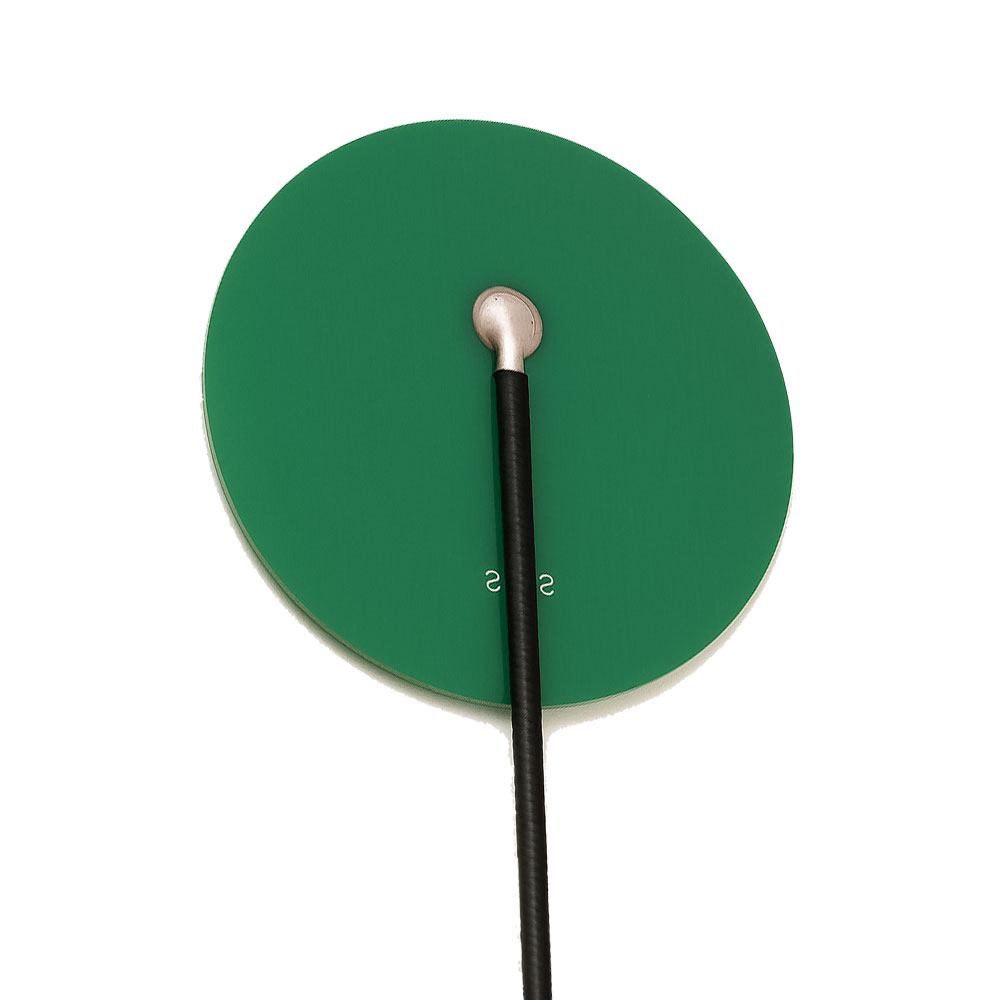

CX-PCB08

PCB Antenna

Frequency Range: 2.4GHz – 2.5GHz (ISM Band)
Gain: 2.5 dBi (Typical)
Impedance: 50Ω
Polarization: Linear
VSWR: ≤ 2.0
Connector Type: IPEX / U.FL (Optional)
Cable Length: 100mm (Customizable)
Material: FR4 PCB substrate with copper trace
Dimensions: Compact, low-profile PCB design
Operating Temperature: -40°C to +85°C
Mounting Type: Adhesive or soldered to main board
Applications: Wi-Fi modules, Bluetooth systems, Zigbee devices, IoT products, and embedded wireless modules

Enquire Now

Download Specification

Descritption CX-PCB08

The PCB Antenna CX-PCB08 is a high-efficiency, compact antenna engineered for 2.4GHz wireless communication. Designed for seamless PCB integration, it delivers strong signal performance and stable connectivity in IoT, Wi-Fi, and Bluetooth-enabled devices. Its lightweight, durable FR4 construction makes it ideal for space-limited electronic systems.
