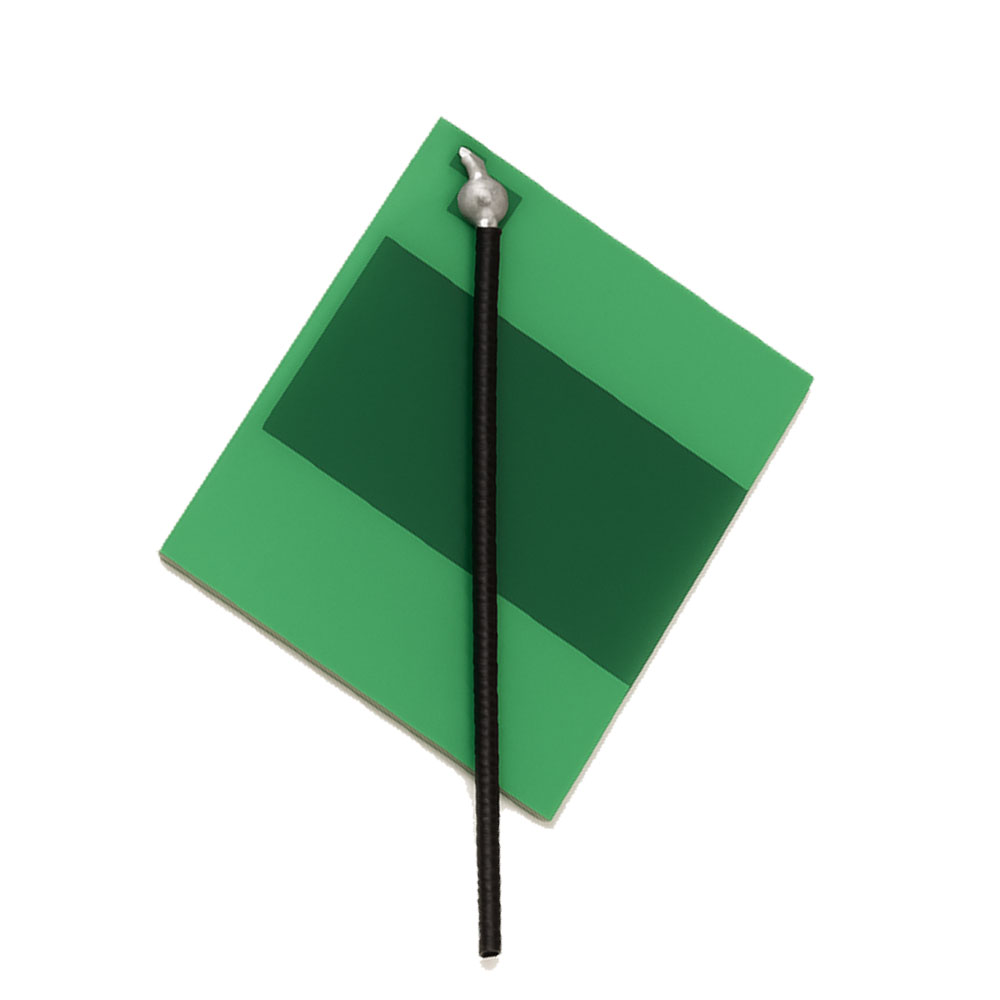

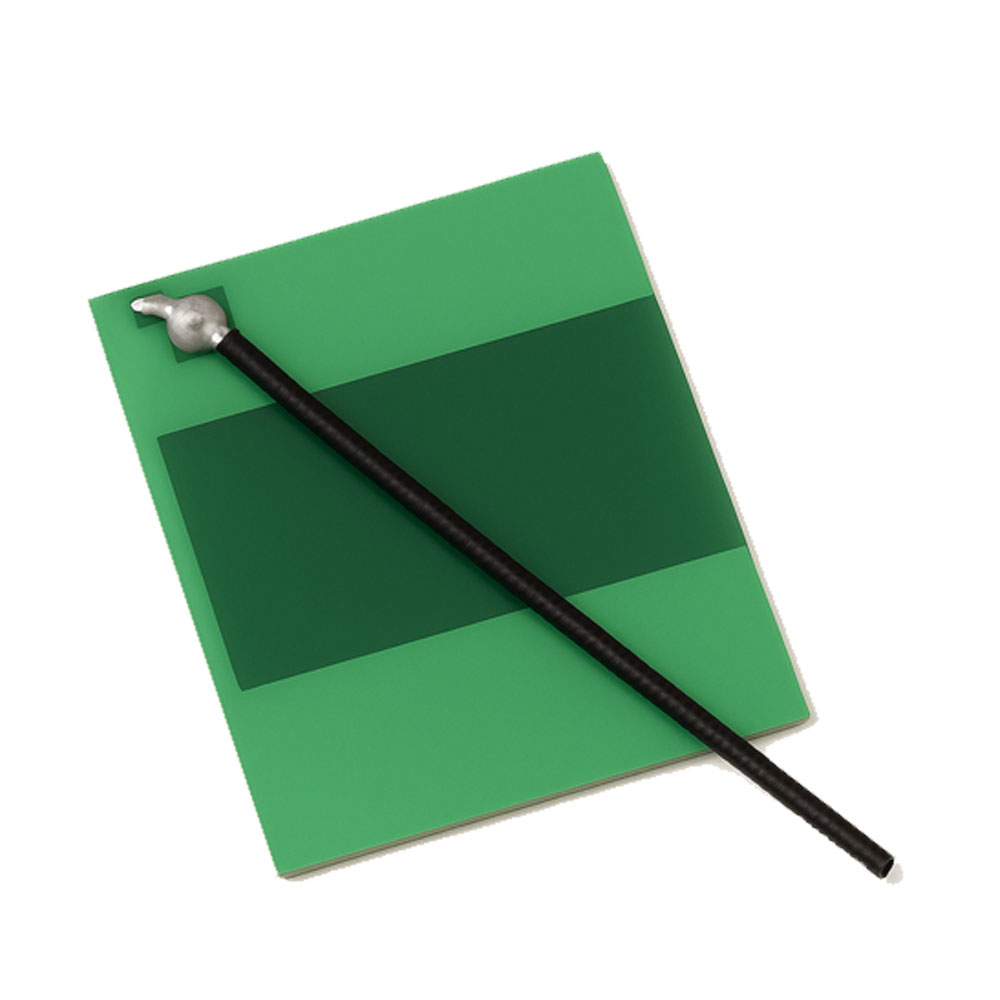

CX-PCB09

PCB Antenna

Frequency Range: 2.4GHz – 2.5GHz (ISM Band)
Gain: 3.0 dBi (Typical)
Impedance: 50Ω
Polarization: Linear
VSWR: ≤ 2.0
Connector Type: IPEX / U.FL (Optional)
Cable Length: 100mm (Customizable)
Material: FR4 PCB substrate with copper trace
Dimensions: Compact and low-profile design for embedded integration
Operating Temperature: -40°C to +85°C
Mounting Type: Adhesive or PCB soldered
Applications: Wi-Fi, Bluetooth, Zigbee, Smart Home Devices, IoT Systems, Wireless Modules

Enquire Now

Download Specification

Descritption CX-PCB09

The PCB Antenna CX-PCB09 is a high-performance, compact antenna optimized for 2.4GHz wireless applications. Built on a durable FR4 substrate, it offers excellent gain, low VSWR, and consistent radiation performance. Designed for seamless PCB integration, it is ideal for IoT, Wi-Fi, Bluetooth, and industrial wireless systems where compactness and reliability are crucial.
