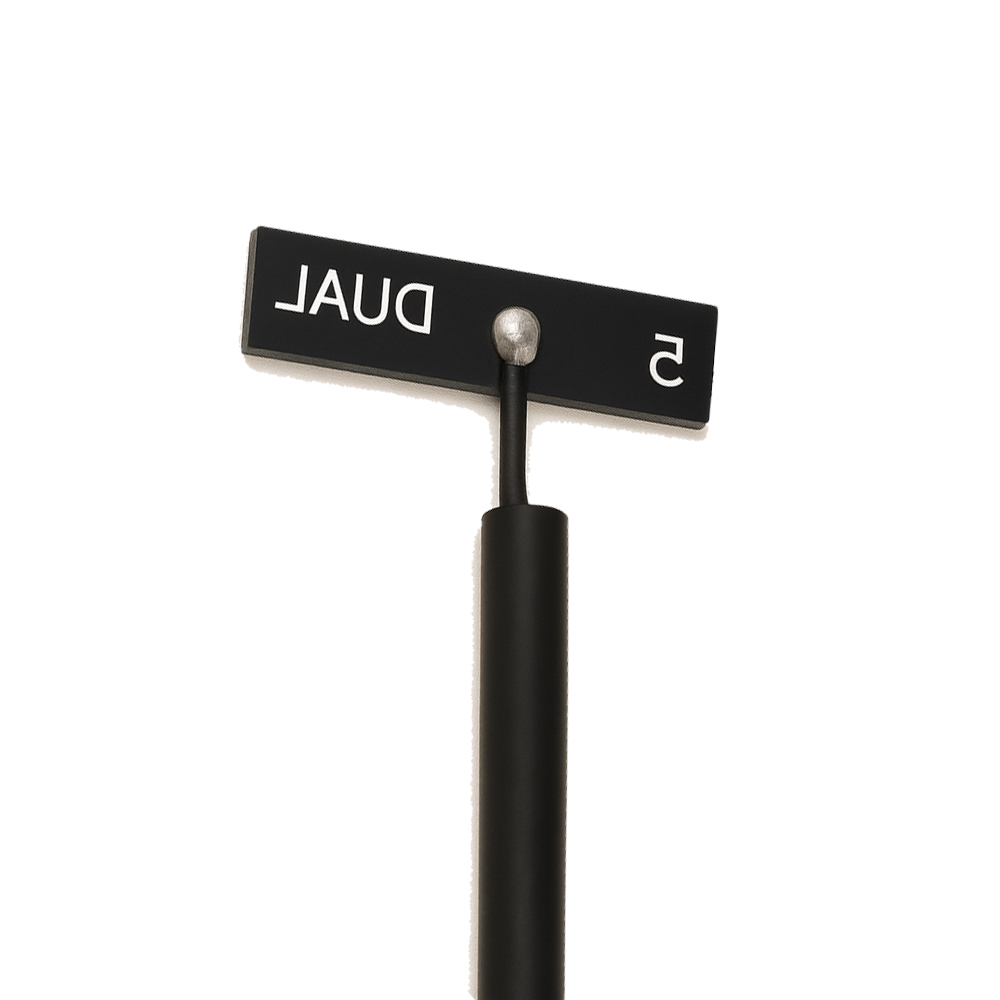

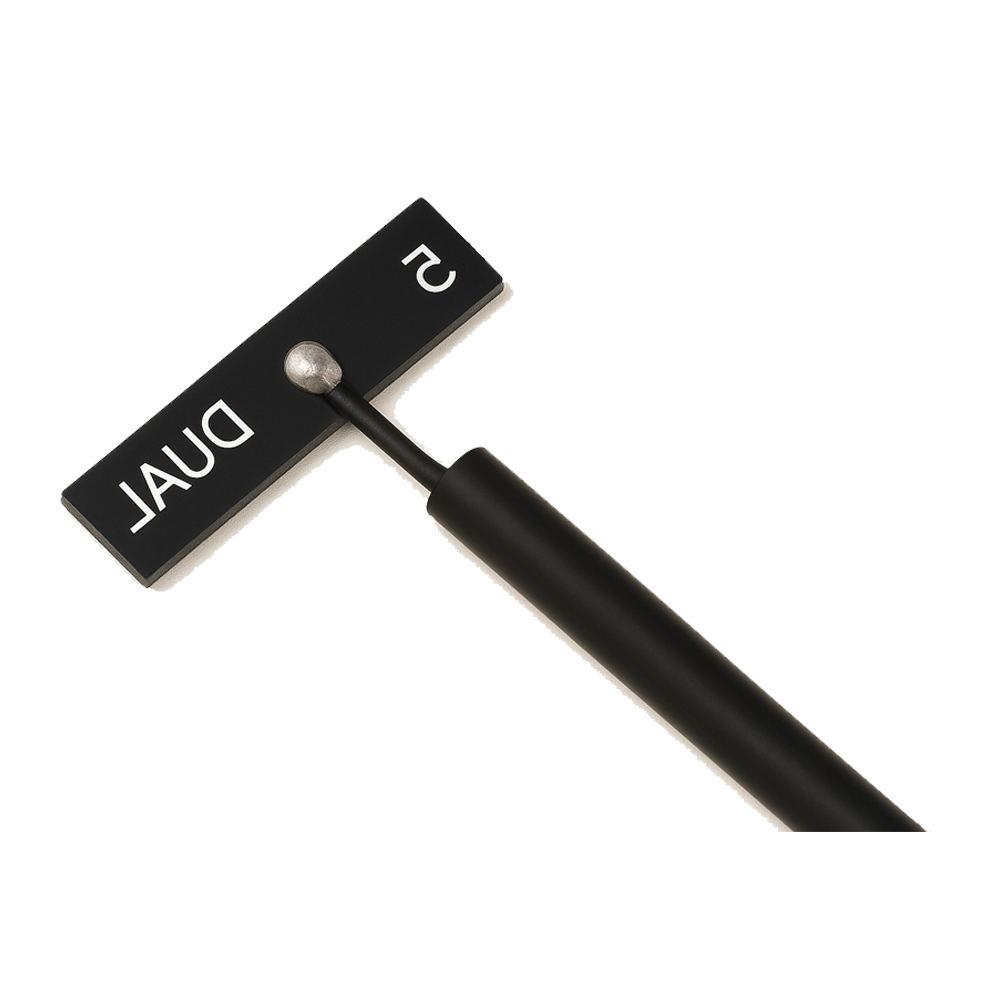

CX-PCB10

PCB Antenna

Frequency Range: 2.4GHz / 5GHz Dual Band
Gain: 2.0 dBi (2.4GHz) / 3.0 dBi (5GHz)
Impedance: 50 Ohm
VSWR: ≤ 2.0
Polarization: Linear
Connector Type: U.FL / IPEX (customizable)
Cable Length: 100mm (custom options available)
Material: FR4 PCB with black coating
Operating Temperature: -40°C to +85°C
Applications: Wi-Fi modules, routers, IoT systems, wireless sensors, and embedded boards.

Enquire Now

Download Specification

Descritption CX-PCB10

The PCB Antenna CX-PCB10 is a high-performance dual-band antenna designed for 2.4GHz and 5GHz wireless communication systems. Compact and lightweight, this antenna ensures stable connectivity, making it ideal for Wi-Fi, IoT devices, and embedded wireless applications where space and performance are both critical.
