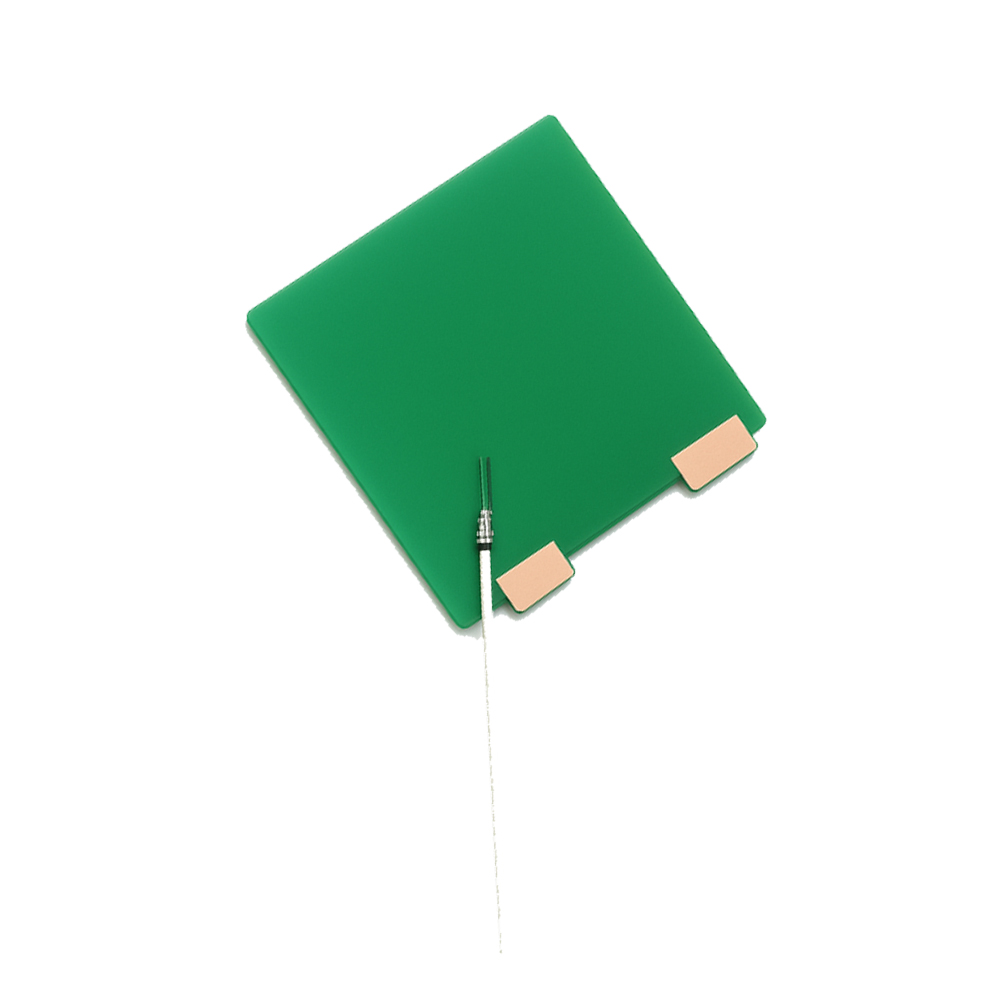

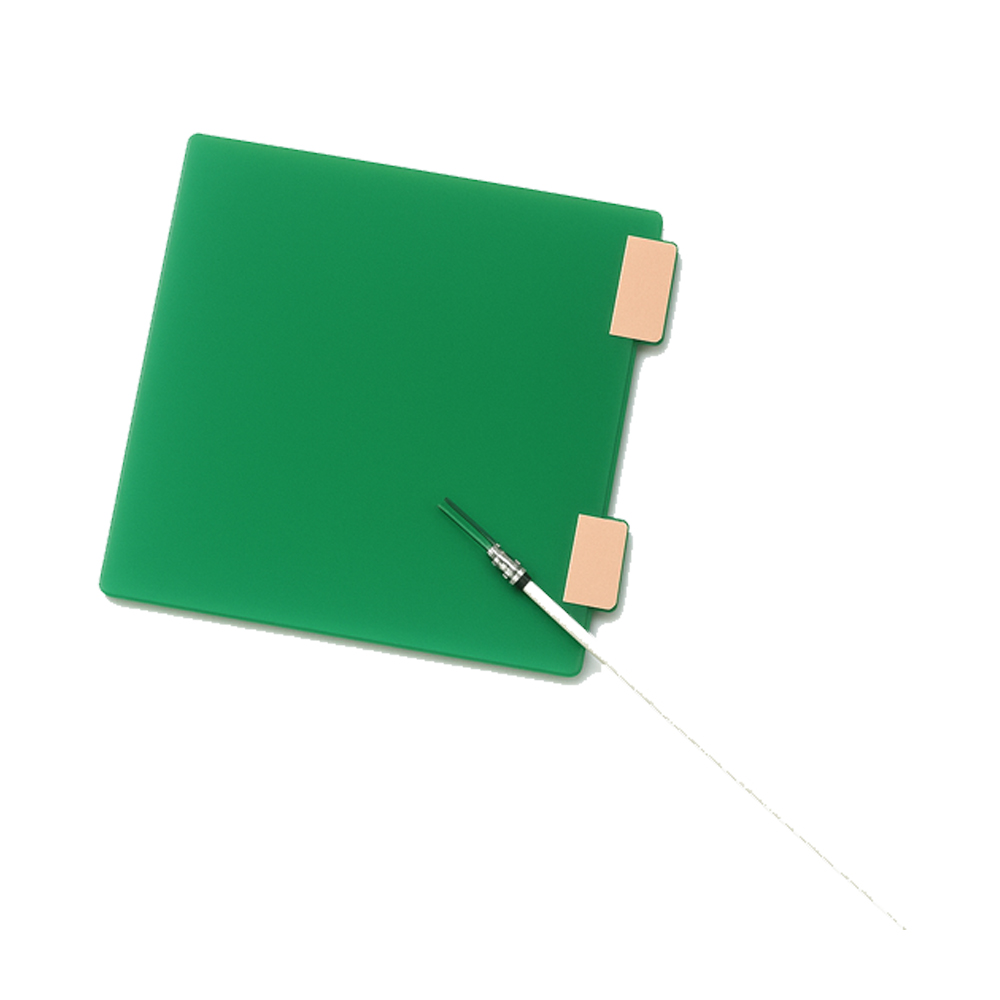

CX-PCB15

PCB Antenna

Frequency Range: 2400–2500 MHz
Gain: 2.5 dBi (typical)
Impedance: 50 Ω
Polarization: Linear
VSWR: ≤ 2.0
Antenna Type: PCB Embedded Antenna
Connector Type: IPEX / U.FL
Cable Length: Customizable (standard 100 mm)
Dimensions: Compact and lightweight for easy PCB mounting
Operating Temperature: -40°C to +85°C
Applications: Wi-Fi modules, Bluetooth devices, Zigbee systems, IoT applications, and embedded wireless solutions.

Enquire Now

Download Specification

Descritption CX-PCB15

The CX-PCB15 PCB Antenna is a compact, high-efficiency antenna designed for 2.4GHz wireless applications such as Wi-Fi, Bluetooth, Zigbee, and IoT devices. It offers excellent gain and radiation stability with easy integration onto circuit boards, making it ideal for small, space-constrained electronics.
