CX-AP02M

Glue Stick Antenna

Frequency Range: 824–960 MHz / 1710–2170 MHz (Dual-band)
Gain: 2–3 dBi
Impedance: 50 Ω
Antenna Material: Rubber-coated ABS housing
Length: Approx. 50–70 mm
Operating Temperature: –40°C to +85°C
Mounting Style: Screw-on via SMA connector
Applications: GSM / 2G / 3G / 4G LTE / IoT / Wireless Modules / M2M / Embedded Systems

Enquire Now

Download Specification

Descritption CX-AP02M

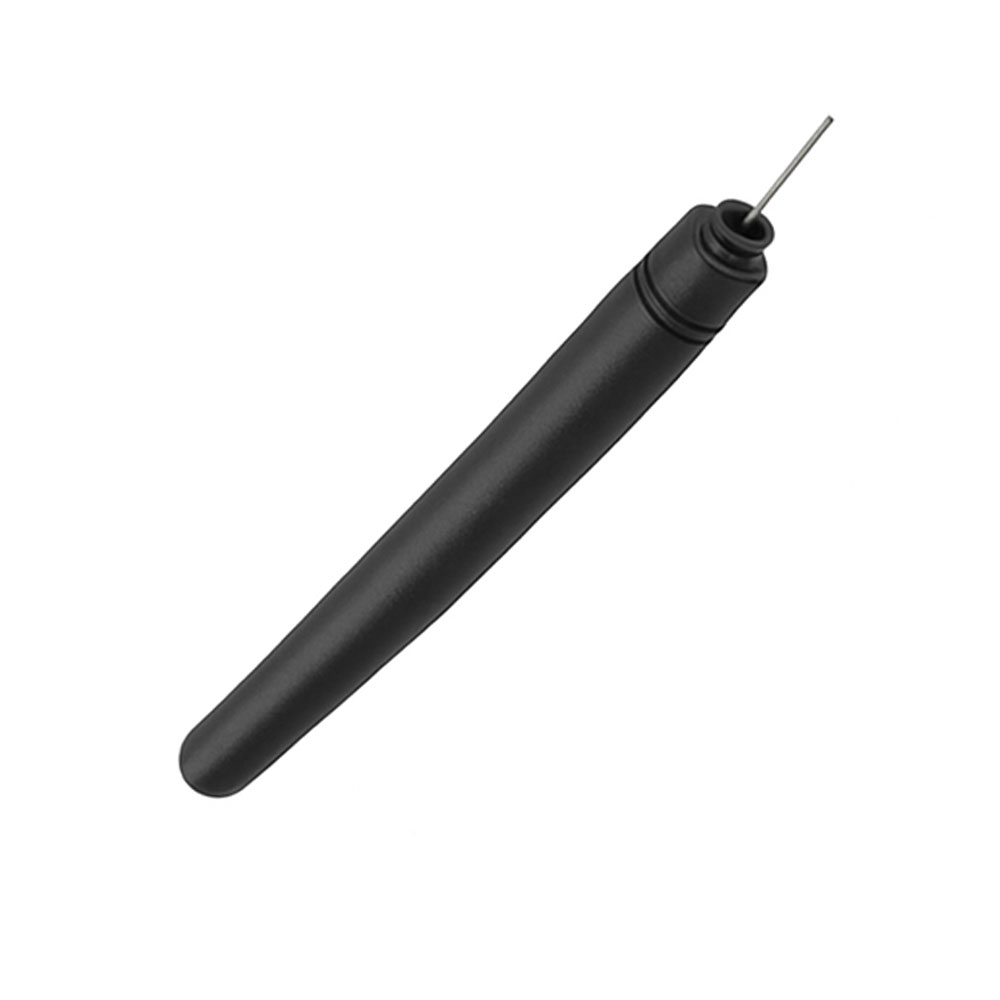

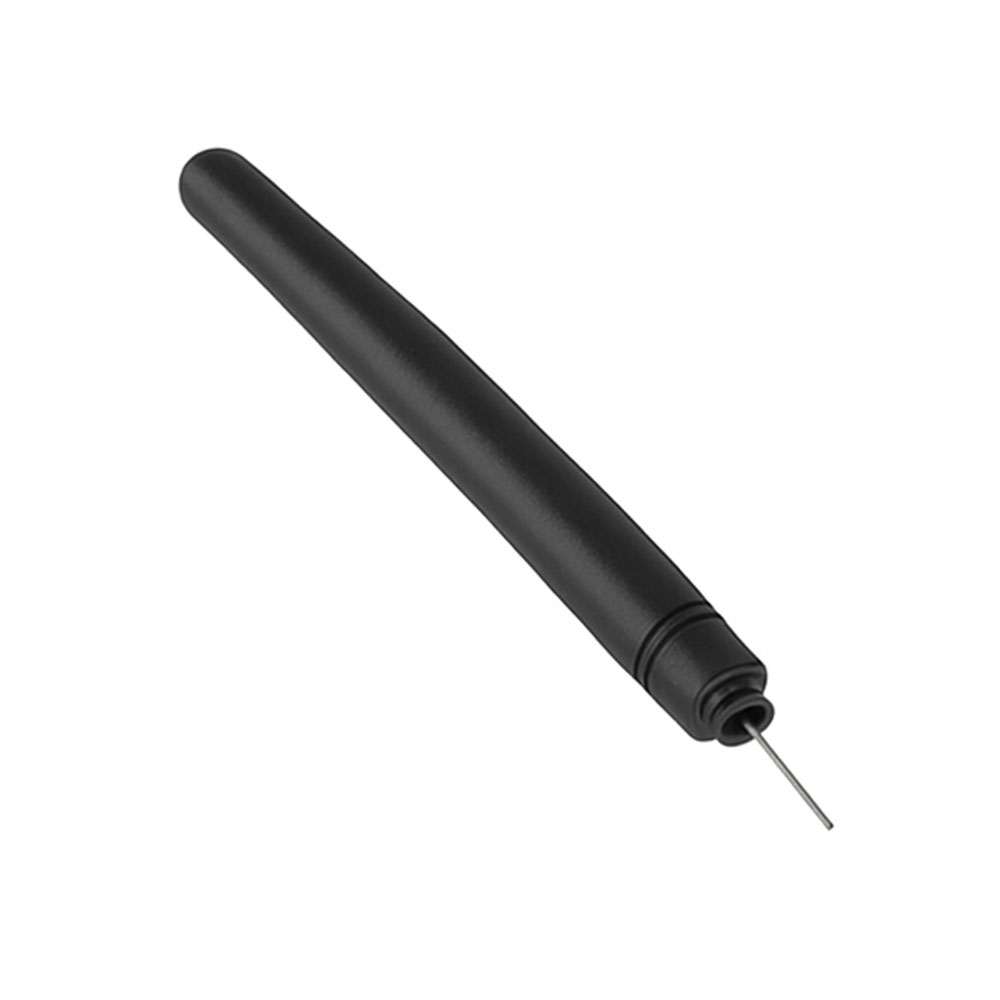

The CX-AP02M Glue Stick Antenna is a compact, high-performance antenna with a rugged cylindrical design and SMA male connector. Ideal for GSM, LTE, and IoT devices, it offers excellent signal transmission in a sleek, space-saving form.
