CX-AP05

Glue Stick Antenna

Frequency Range: 824–960 MHz / 1710–2170 MHz
Gain: 2 dBi typical
Impedance: 50 Ω
VSWR: ≤ 2.0
Mounting: Direct plug-in / PCB adhesive (based on variant)
Length: ~80–90 mm
Cable (optional): RG1.13 / RG174, length customizable
Operating Temperature: –40°C to +85°C

Enquire Now

Download Specification

Descritption CX-AP05

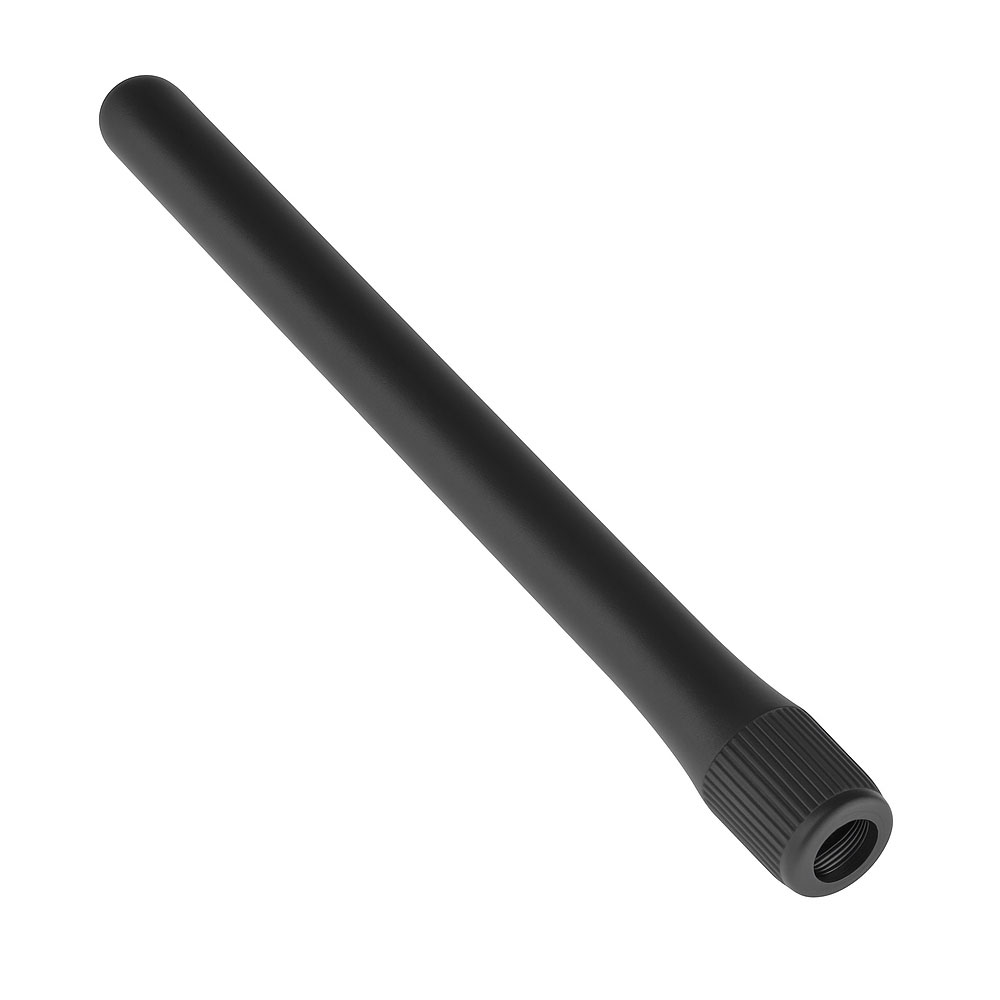

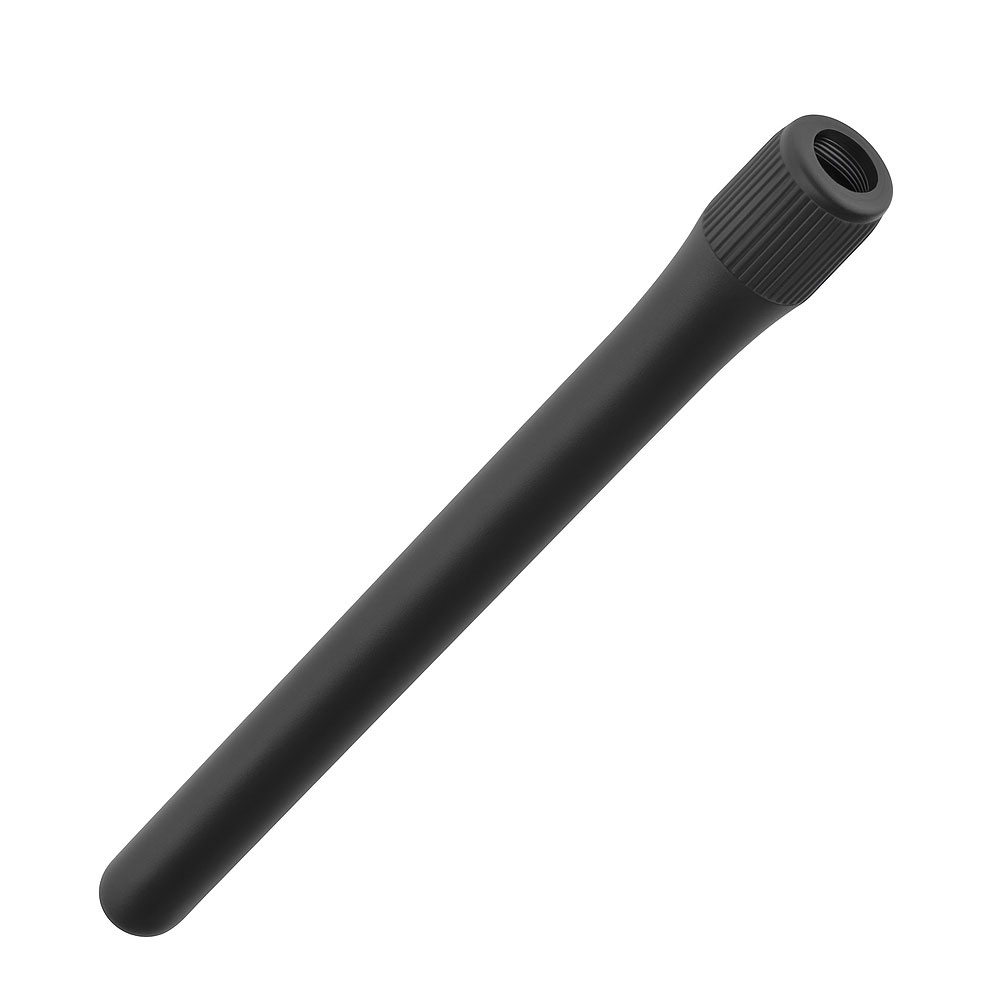

The CX-AP05 Glue Stick Antenna is a high-performance, compact, and rugged antenna designed for wireless applications including GSM, 3G, 4G LTE, and Wi-Fi. Its glue-stick design enables easy integration into devices requiring a low-profile, omnidirectional antenna solution for reliable connectivity.
