CX-AP06

Glue Stick Antenna

Frequency Range: 824 – 960 MHz / 1710 – 2170 MHz (Dual‑band)
Gain: 2 – 3 dBi
Impedance: 50 Ω
VSWR: ≤ 2.0
Antenna Material: ABS plastic housing with matte rubberized finish
Length: Approx. 60 mm
Operating Temperature: –40 °C to +85 °C
Mounting: Screw‑on via SMA interface
Applications: GSM / 2G / 3G / 4G LTE / IoT / M2M / Wireless Modules / Telemetry

Enquire Now

Download Specification

Descritption CX-AP06

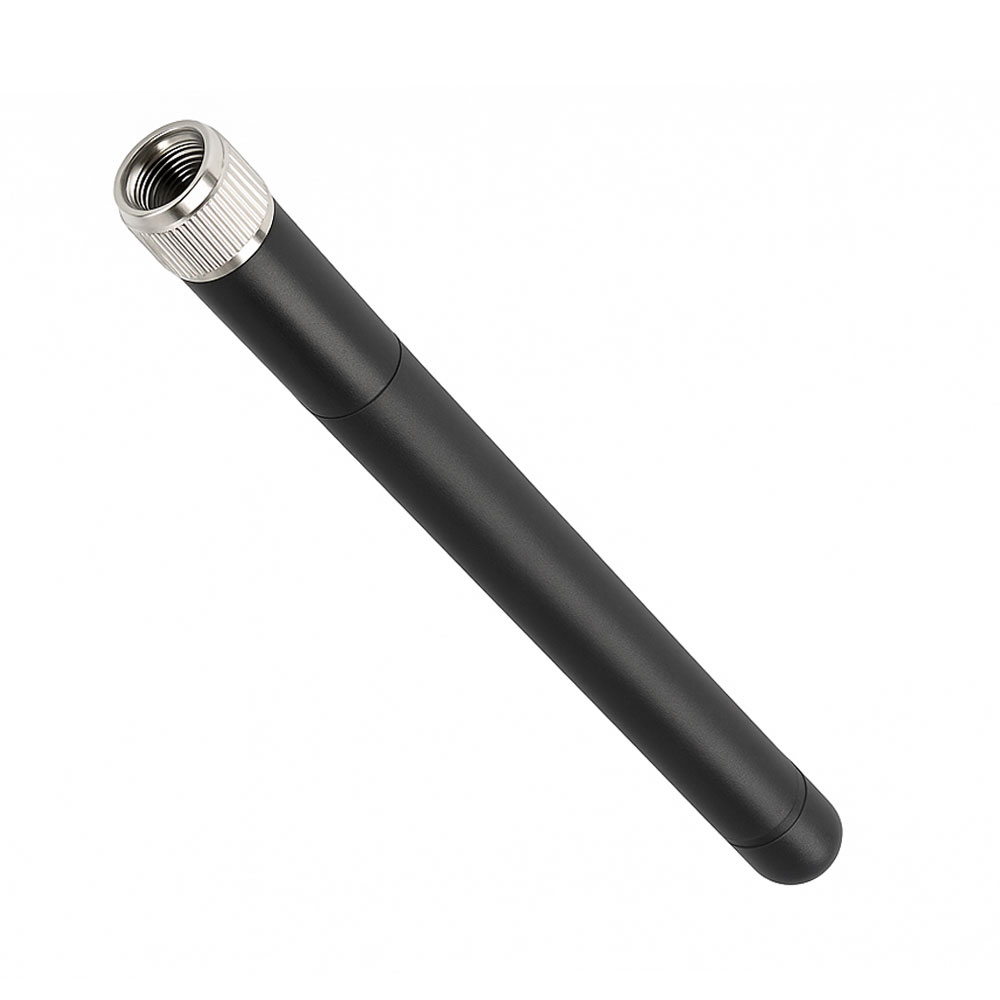

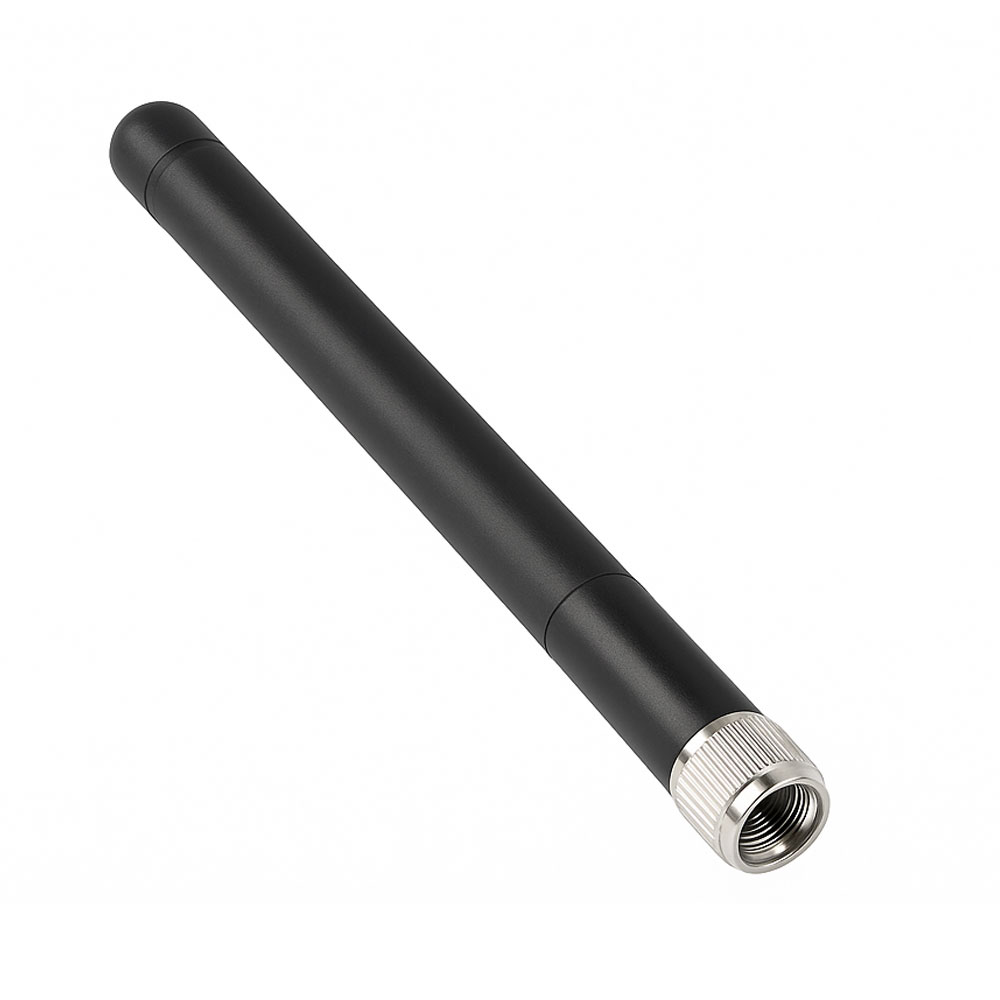

The CX-AP06 Glue Stick Antenna is a versatile, compact omnidirectional antenna featuring a sleek black cylindrical body and a standard SMA male connector. Designed for GSM, LTE, and IoT applications, it delivers reliable signal reception in a space-saving form factor.
