CX-AP07D

Glue Stick Antenna

Frequency Range: 824–960 MHz / 1710–2170 MHz (dual-band)
Gain: 3 dBi
Impedance: 50 Ω
VSWR: ≤ 2.0
Material: High-quality ABS plastic with a rubberized texture
Length: Approx. 90mm – 110mm
Operating Temperature: -40°C to +85°C
Mounting Style: Screw-on via SMA interface
Applications: GSM / 3G / 4G LTE / IoT / Wireless Modules / M2M Communication / Smart Devices

Enquire Now

Download Specification

Descritption CX-AP07D

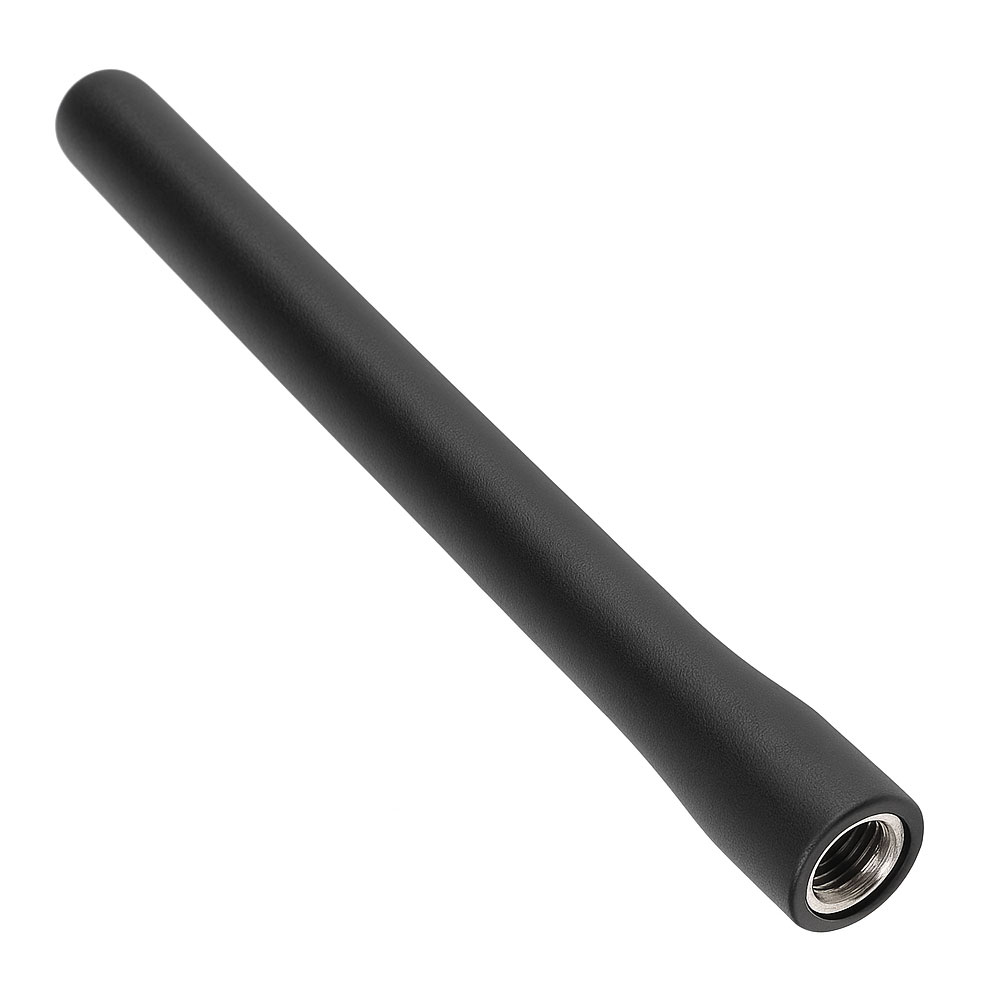

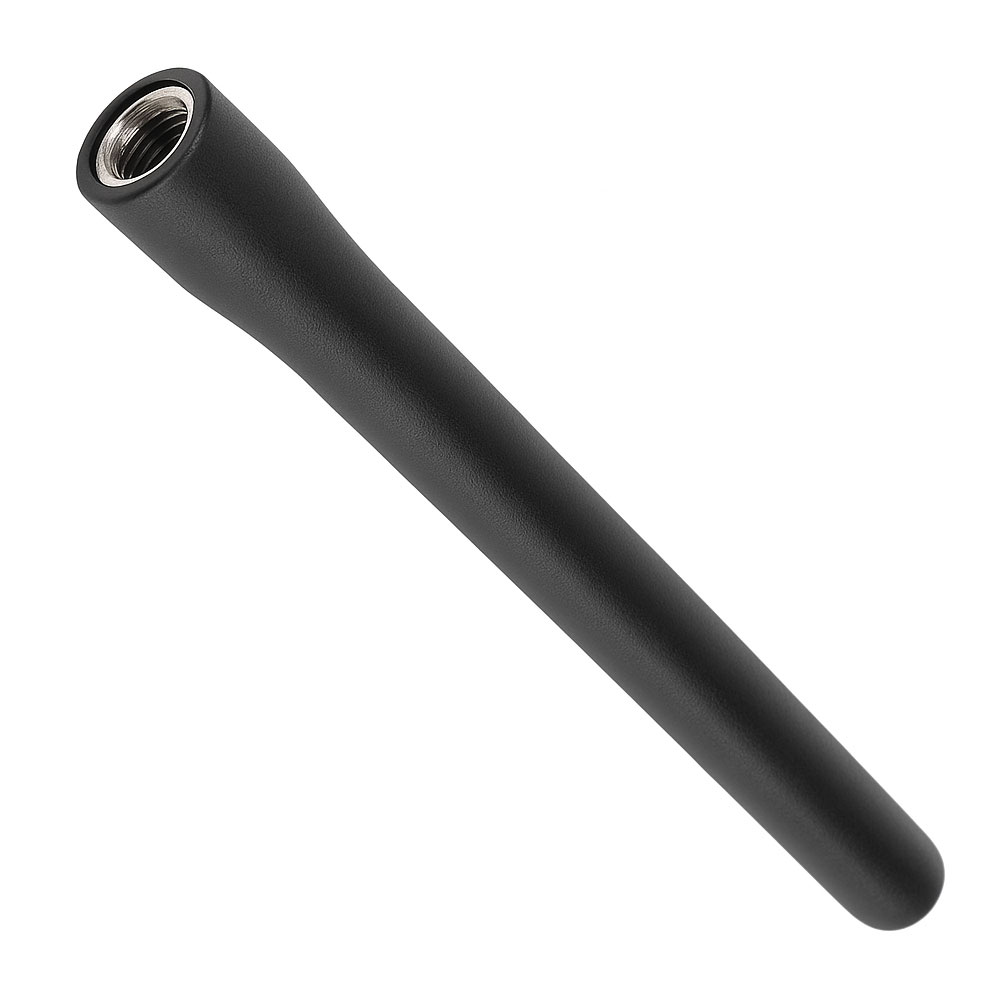

The CX-AP07D Glue Stick Antenna is a slim, high-gain antenna featuring a black cylindrical body with a rugged matte finish and SMA female connector. Designed for GSM, LTE, and IoT applications, it ensures strong, stable wireless performance in a compact, space-efficient form.
