CX-AP16A

UAV-FPW Antenna Drone Transmission

Frequency Range: 2400–2500 MHz (2.4 GHz ISM Band)
Polarization: Right-Hand Circular Polarization (RHCP)
Gain: 5.0 dBi
VSWR: ≤ 1.5:1
Impedance: 50 Ω
Radiation Pattern: Omni-directional
Connector Type: SMA Male (Customizable)
Cable Type: RG141 / RG316, length optional
Material: High-strength ABS housing with weatherproof coating
Dimensions: Compact, low-profile structure for UAV integration
Operating Temperature: -40°C to +85°C
Mounting: Suitable for drone body, FPV transmitter, or ground receiver

Enquire Now

Download Specification

Descritption CX-AP16A

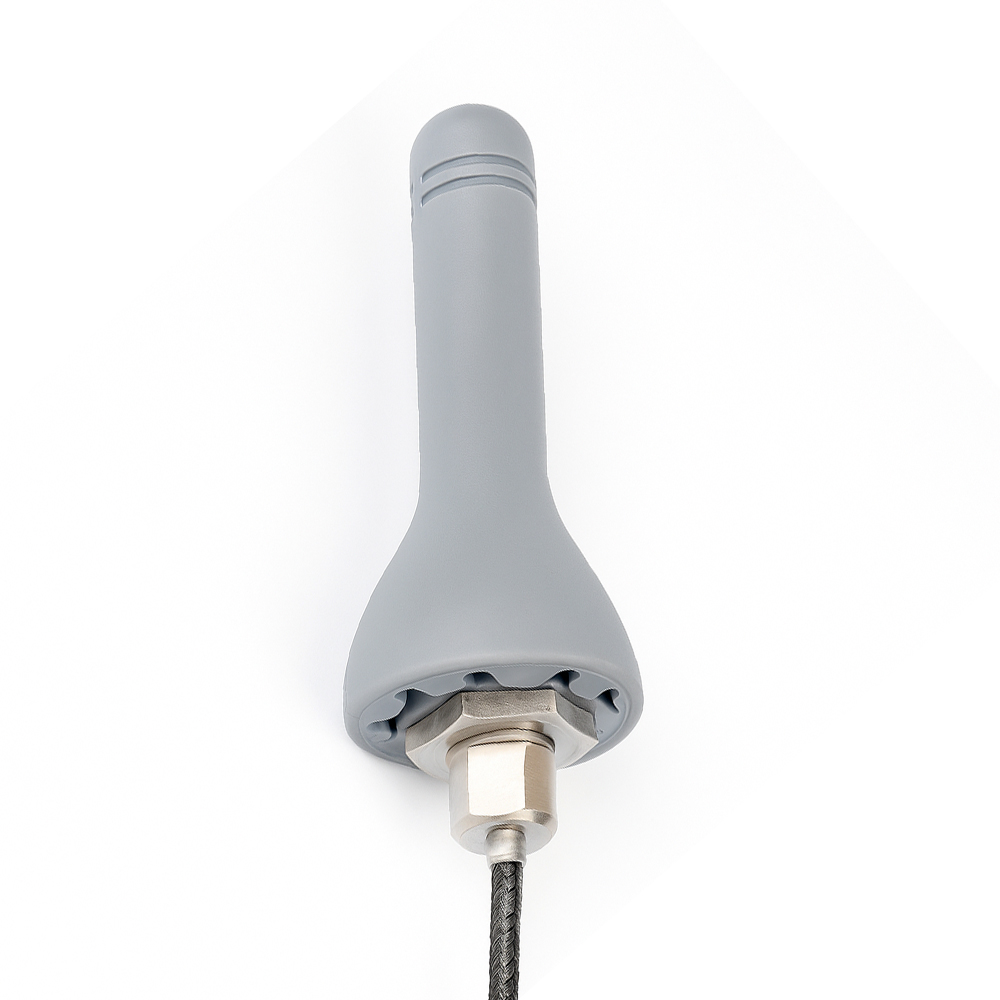

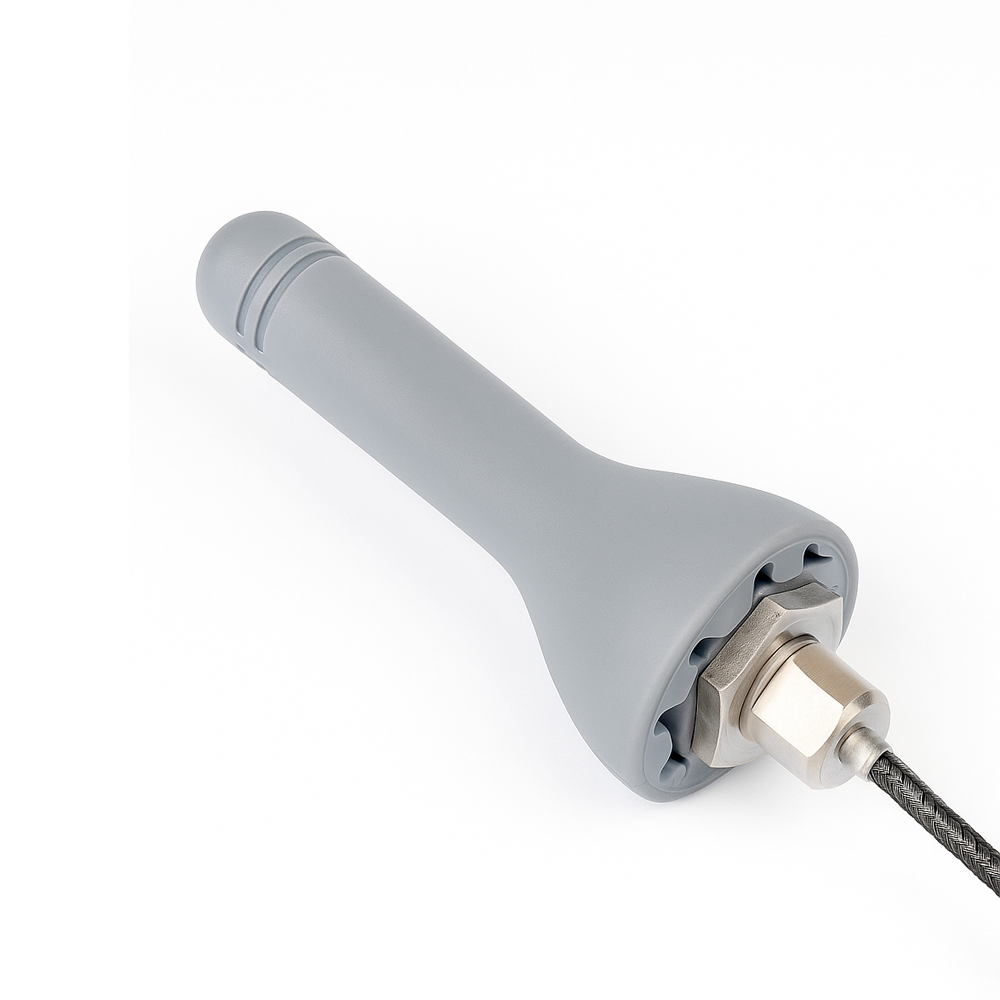

The CX-AP16A UAV-FPW Antenna is a compact, circularly polarized antenna engineered for drone and FPV transmission systems. Designed for high-gain, stable signal performance, it delivers reliable communication links even in challenging flight environments. Its lightweight and durable design ensures minimal aerodynamic drag, making it ideal for UAVs, robotics, and wireless video applications.
