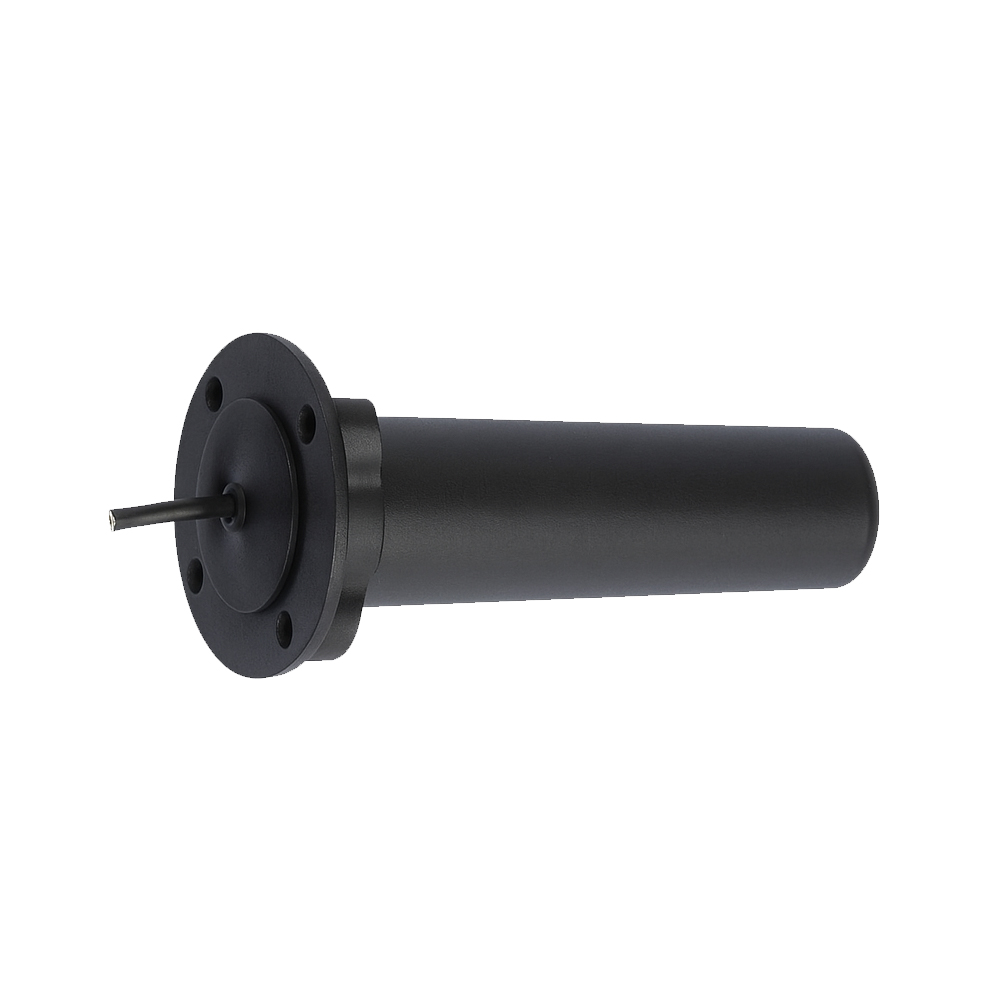

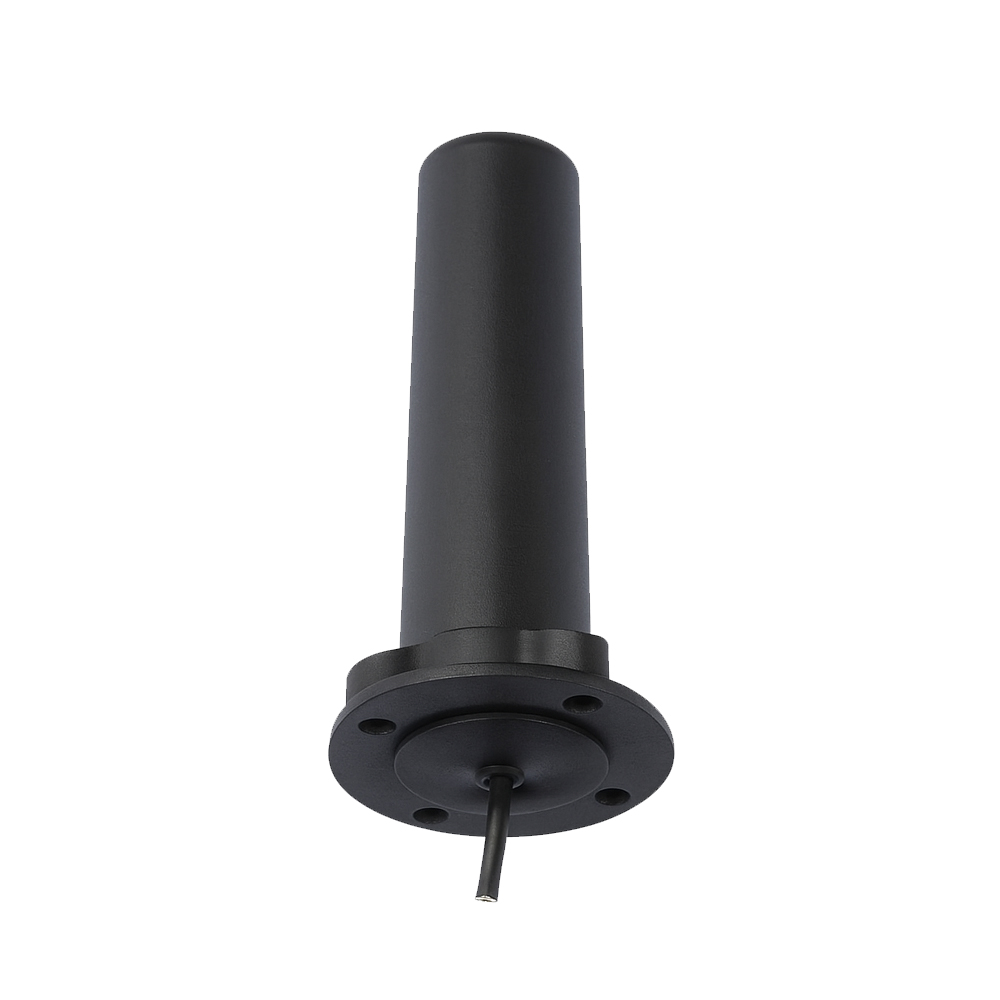

CX-AP24

UAV-FPW Antenna Drone Transmission

Frequency Range: 5.8 GHz
Polarization: Circular (RHCP/LHCP)
Gain: 8 dBi
VSWR: ≤ 1.5
Impedance: 50 Ω
Connector Type: SMA Male / RP-SMA (optional)
Radiation Pattern: Directional with high efficiency
Material: Durable ABS radome with low-loss internal conductor
Cable Type & Length: RG316, 15–25 cm (customizable)
Dimensions: 85 × 85 × 20 mm
Operating Temperature: -40°C to +85°C
Mounting Type: Screw or bracket mount
Applications: FPV drone systems, UAV telemetry, HD video transmission, robotics communication, and industrial UAV links.

Enquire Now

Download Specification

Descritption CX-AP24

The UAV-FPW Antenna Drone Transmission CX-AP24 is a high-performance circularly polarized antenna designed for drone and UAV communication systems. Engineered to deliver stable signal transmission with low latency and minimal interference, it ensures clear, reliable FPV video and data links over long distances — ideal for both professional and hobby UAV applications.
