CX-AP24A

UAV-FPW Antenna Drone Transmission

Frequency Range: 5.8 GHz
Polarization: Circular (RHCP/LHCP)
Gain: 10 dBi
VSWR: ≤ 1.5
Impedance: 50 Ω
Connector Type: SMA Male / RP-SMA (optional)
Cable Type & Length: RG316, 15–30 cm (customizable)
Radiation Pattern: Directional high-gain design
Material: ABS housing with precision copper radiating structure
Dimensions: 90 × 90 × 25 mm
Operating Temperature: -40°C to +85°C
Mounting Type: Panel or bracket mount
Applications: FPV drone transmission, UAV telemetry, long-range control, aerial photography, and industrial wireless systems.

Enquire Now

Download Specification

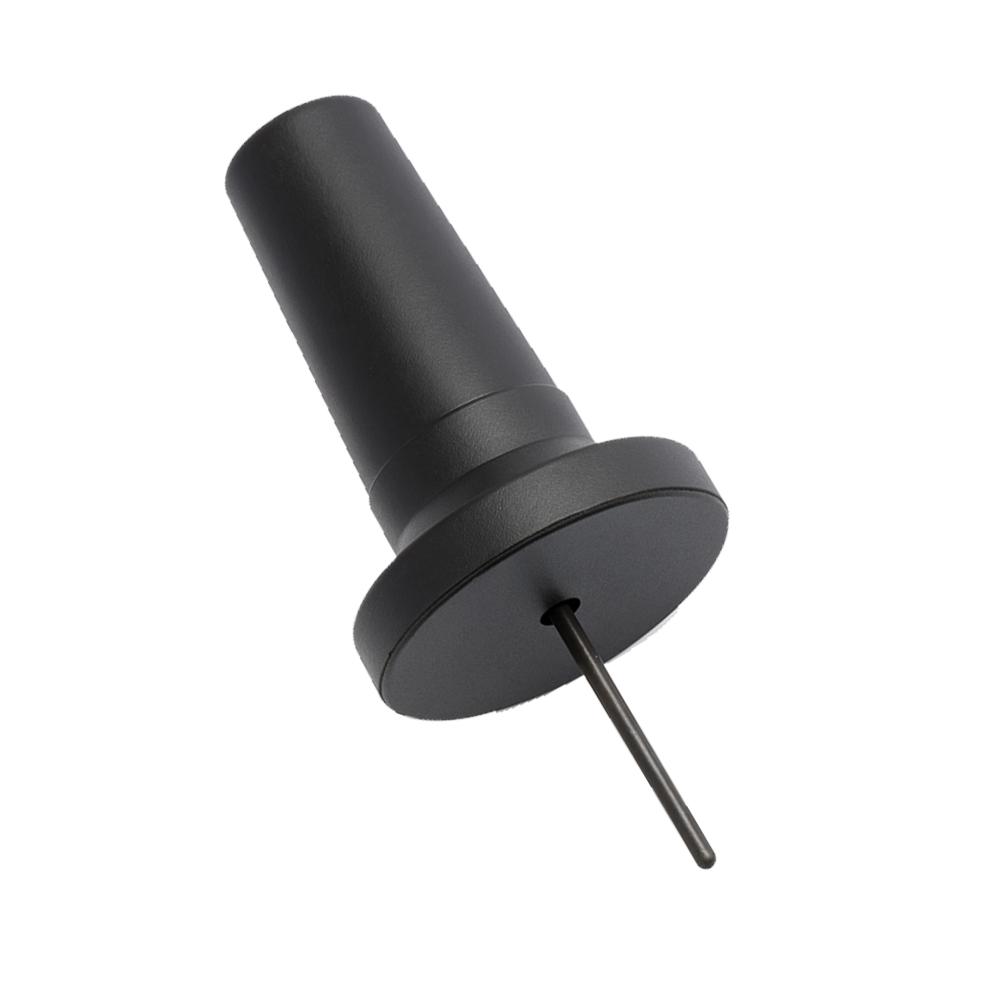

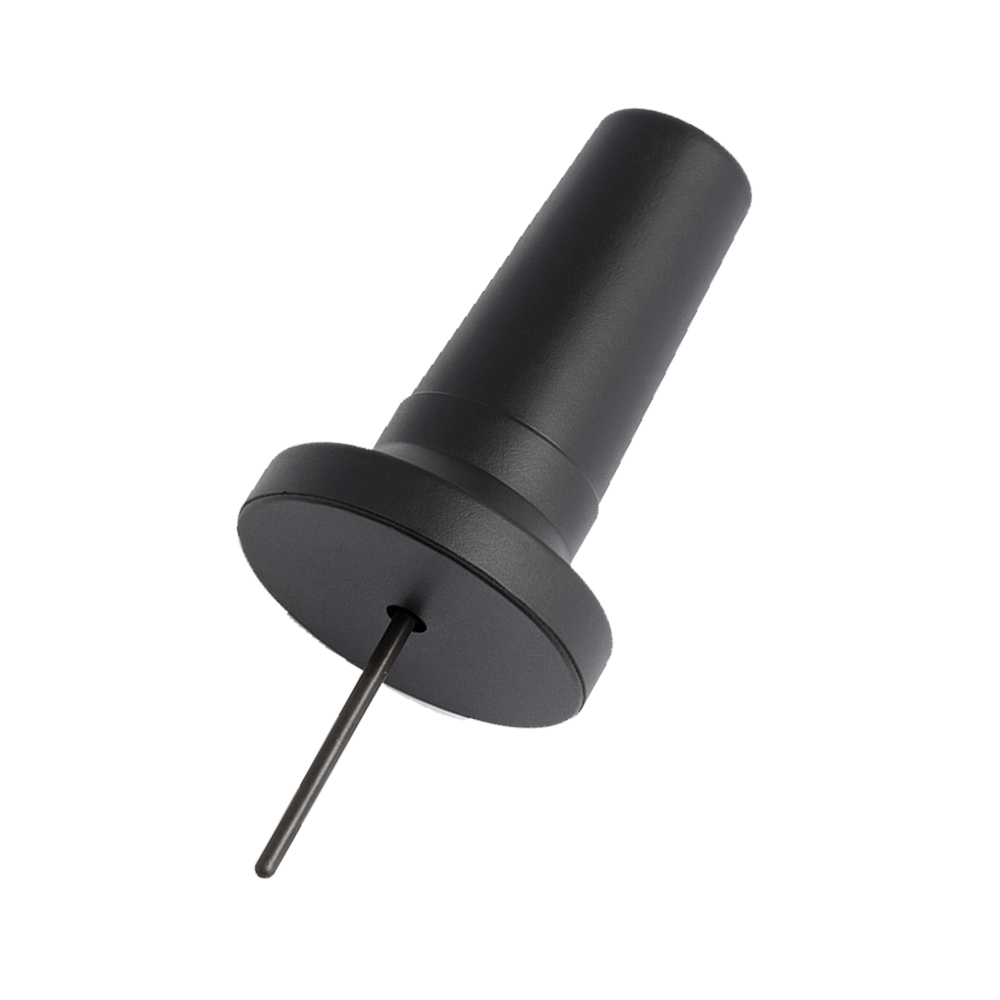

Descritption CX-AP24A

The UAV-FPW Antenna Drone Transmission CX-AP24A is a next-generation FPV antenna optimized for long-distance UAV transmission and HD video systems. Built with high-gain circular polarization technology, it provides superior signal stability, minimized multipath distortion, and excellent noise immunity — ideal for drone pilots demanding reliable and consistent performance.
